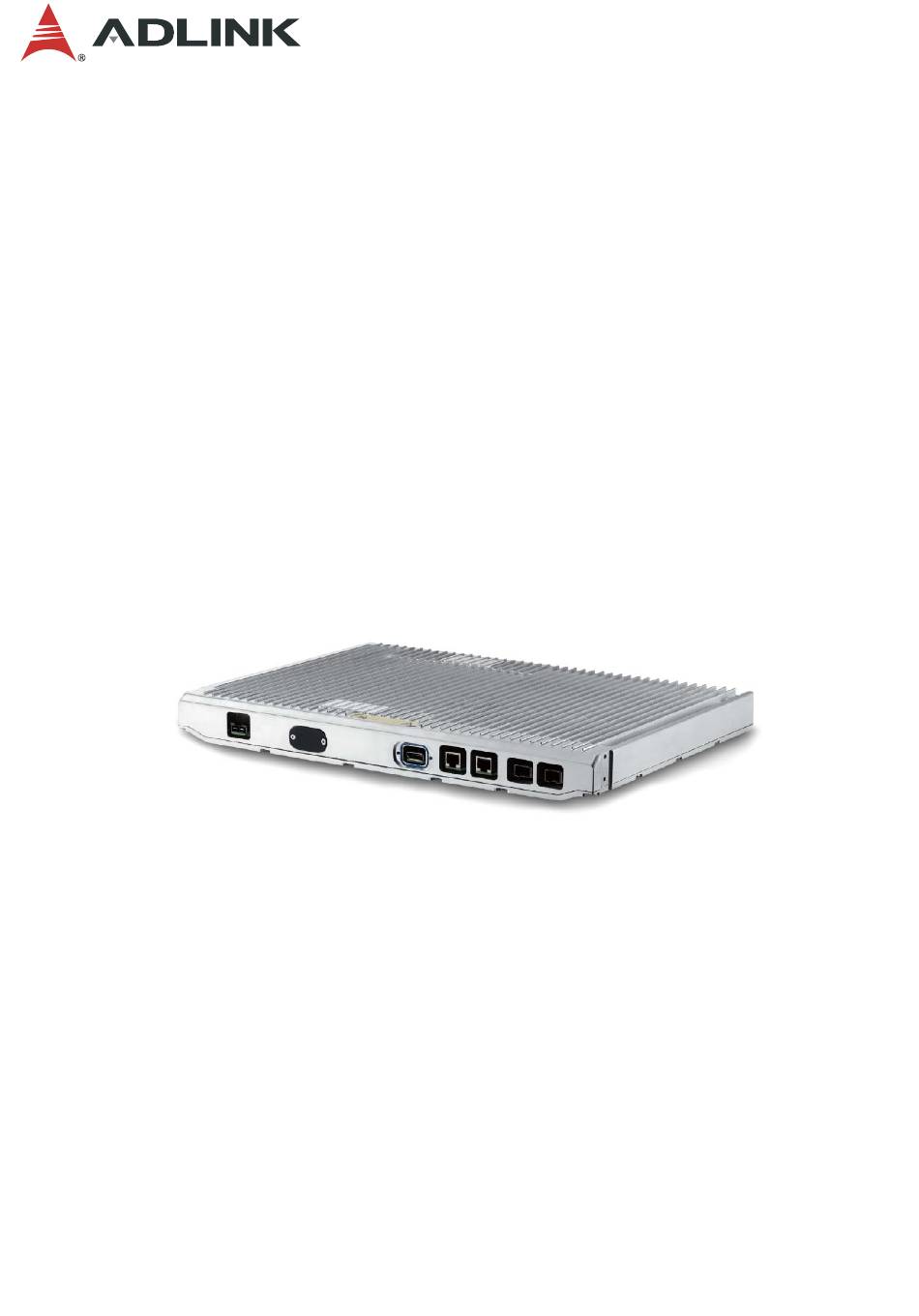

- Page 1 SETO-1000 Rugged Outdoor Server with Intel® Xeon® Processor E5-2400 v2 User’s Manual Manual Revision: Revision Date: March 28, 2018 Part No.: 50-1Z251-1000 Leading EDGE COMPUTING...
-
Page 2: Preface
SETO-1000 Preface Copyright 2018 ADLINK Technology, Inc. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. - Page 3 SETO-1000 Revision History Revision Release Date Description of Change(s) 2018-03-28 Initial release...
-
Page 4: Table Of Contents
Connecting the Configuration Breakout Cable............... 15 Connecting the IP65 Shrouded Cables.................. 16 Connecting the Power Cable ....................17 Powering On the SETO-1000 ....................19 Accessing the SETO-1000 Control Console ................19 Entering BIOS Setup......................21 4 BIOS Setup........................... 22 Entering BIOS Setup......................22 4.1.1... -
Page 5: Overview
1 Overview 1.1 Introduction The SETO-1000 is a 1U rackmount server with an all-aluminium conduction cooled chassis that is designed for application in a rugged outdoor RAN network environment. It is powered by a single or dual Intel® Xeon® Processor E5-2400 v2, triple-channel DDR3-1600 RDIMM per CPU with one DIMM slot per channel, Intel®... -
Page 6: Block Diagram
SETO-1000 1.2 Block Diagram (optional) Intel C604... -
Page 7: Mechanical Overview
SETO-1000 1.3 Mechanical Overview 1.3.1 Front Panel Status LEDs Reserved DC power input RS-232 console port + 2x USB (DP-to-breakout cable) 2x GbE ports 2x 10GbE ports (SFP+) (RJ-45) 1.3.2 Rear Panel 2.5” SATA bays SATA2 SATA1... -
Page 8: Mechanical Dimensions
SETO-1000 1.4 Mechanical Dimensions 439.4 439.4 Dimensions: mm... -
Page 9: Package Contents
Obtain authorization before returning any product to ADLINK. Check that the following items are included in the package. If there are any missing items, contact your dealer: SETO-1000 Rugged Outdoor Server Breakout cable for console port and USB ports (configuration only) Power cable... -
Page 10: Specifications
SETO-1000 2 Specifications 2.1 SETO-1000 Specifications Main System Single or dual CPU: • Intel® Xeon® E5-2418L v2 (6C/12T) • Intel® Xeon® E5-2428L v2 (8C/16T) • Intel® Xeon® E5-2448L v2 (10C/20T) 15MB/20MB/25MB (2418L/2428L/2448L) L2 Cache Intel® C604 PCH Chipset 6x DDR3-1066/1333/1600 * 240-Pin VLP RDIMM sockets,... -
Page 11: Status Leds
SETO-1000 2.2 Status LEDs Power Status LED (PWR) PWR LED Condition Description No power connected Green Busbar Voltage is OK Power source DC input is OK – default state. Orange Cold start in progress Heating is turned on and equipment will start when operating temperature is reached. -
Page 12: Getting Started
SETO-1000 3 Getting Started 3.1 SATA Drive Installation To install a 2.5” SATA drive, first remove the rubber cap from the rear of the chassis. 1. Take out the drive bracket by squeezing the locking tabs together and pulling it out of the chassis. - Page 13 SETO-1000 3. Lift the heating element off of the drive bracket. 4. Install the 7mm SATA drive into the bracket as shown and secure with four screws from the bottom side of the bracket (screws included in drive bay).
- Page 14 SETO-1000 5. Replace the heating element and secure it to the drive bracket with the four screws removed in Step 2. Make sure the wires for the heating element come out through the gap as shown. 6. Insert the drive bay into the chassis until it clicks in place. Replace the rubber cap, making...
-
Page 15: Connecting The Configuration Breakout Cable
A breakout cable is provided to access the RS-232 serial console port and two USB 2.0 ports for configuring the SETO-1000. A DisplayPort connector with proprietary pinout is used to bring out the signals. The breakout cable is equipped with security dongle functionality to prevent unauthorized access to the device. -
Page 16: Connecting The Ip65 Shrouded Cables
3.3 Connecting the IP65 Shrouded Cables Optional cables provided by ADLINK for the SETO-1000 are equipped with an IP65 shroud to keep out dust and water. To connect a cable to the SETO-1000, follow the steps below (RJ-45 connector shown). -
Page 17: Connecting The Power Cable
SETO-1000 3. Fully insert the cable shroud into the chassis to provide IP65 ingress protection. 3.4 Connecting the Power Cable The power inlet for the SETO-1000 is at the rear of the chassis with polarity as indicated below. + –... - Page 18 SETO-1000 1. Connect the supplied cable to your 48V power supply and insert the connector as shown. 2. To disconnect the power cable, press down on the locking tab to release the connector, and then pull it out of the chassis.
-
Page 19: Powering On The Seto-1000
LED will light green after control is passed to the OS. 3.6 Accessing the SETO-1000 Control Console The SETO-1000 is a headless device and an RS-232 console port is provided via the proprietary DisplayPort connector on the front panel. User's can connect to the SETO-1000 console from a client PC using "PuTTY". - Page 20 SETO-1000 After powering on the SETO-1000, the terminal program PuTTY will connect to the SETO-1000 shell via the COM port.
-
Page 21: Entering Bios Setup
SETO-1000 3.7 Entering BIOS Setup Follow the instructions above to access the SETO-1000 control console. After power is supplied to the SETO-1000, press the <DELETE> key repeatedly until the BIOS Setup menu appears. -
Page 22: Bios Setup
SETO-1000 4 BIOS Setup The following chapter describes basic navigation for the SETO-1000 BIOS setup utility. 4.1 Entering BIOS Setup To enter the setup screen, follow these steps: 1. Power on the motherboard 2. Press the < Delete > key on your keyboard when you see the following text prompt: < Press DEL to enter Setup >... -
Page 23: Setup Menu
SETO-1000 4.1.1 Setup Menu The Main BIOS setup menu is the first screen that you can navigate to. The Main BIOS setup menu screen has two main frames. The left frame displays all the options that can be configured. “Grayed”... - Page 24 SETO-1000 →← Left/Right. The Left and Right < Arrow > keys allow you to select a setup screen. For example: Main screen, Advanced screen, Chipset screen, and so on. ↑↓ Up/Down The Up and Down < Arrow > keys allow you to select a setup item or sub-screen.
- Page 25 SETO-1000 The < F3 > key on your keyboard is the optimized defaults key. To set the optimized defaults settings of the BIOS, press the < F3 > key on your keyboard. It is located on the upper row of a standard 101 keyboard. The optimized defaults settings allow the motherboard to boot up with the optimized defaults of options set.
-
Page 26: Main Setup
SETO-1000 4.2 Main Setup When you first enter the Setup Utility, you will find the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section. -
Page 27: Advanced Bios Setup
SETO-1000 4.3 Advanced BIOS Setup Select the Advanced tab from the setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, (ex: Super IO Configuration), to go to the sub menu for that item. -
Page 28: Acpi Settings
SETO-1000 4.3.1 ACPI Settings You can use this screen to select options for the ACPI Advanced Configuration Settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option. -
Page 29: Trusted Computing
SETO-1000 4.3.2 Trusted Computing Trusted Computing is an industry standard to make personal computers more secure through a dedicated hardware chip, called a Trusted Platform Module (TPM). This option allows you to enable or disable the TPM support. Security Device Support This item allows you to enables or disables BIOS support for security device. -
Page 30: Cpu Configuration
SETO-1000 4.3.3 CPU Configuration You can use this screen to select options for the CPU Configuration Settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option. - Page 31 SETO-1000 Active Processor Core Number of cores to enable in each processor package. Set this value to All, 1, 2, 3. Intel Virtualization Technology When enabled, a VMM can utilize the additional hardware capability provided by Vanderpool Technology. Set this value to Enabled/Disabled.
-
Page 32: Sata Configuration
SETO-1000 Package C State Limit Configure state for the C-State package limit. Options available: C0/C1/C6/C7/No Limit. Default setting is No Limit. 4.3.4 SATA Configuration You can use this screen to select options for the SATA Configuration Settings. An example of the SATA Configuration screen is shown below. -
Page 33: Usb Configuration
SETO-1000 4.3.5 USB Configuration You can use this screen to select options for the USB Configuration Settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option. - Page 34 SETO-1000 Serial Port 1 Configuration Set parameters of Serial Port 1 (COM A). Set this value to Enabled/Disabled. The screen is shown below. Serial Port Enable or disable Serial Port 1. Device Settings This option specifies the base I/O port address and interrupt request address of serial port 1,.
-
Page 35: Serial Port Console Redirection
SETO-1000 4.3.7 Serial Port Console Redirection You can use this screen to select options for the serial port console redirection settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option. - Page 36 SETO-1000 Flow Control Set this option to select Flow Control for console redirection. The settings for this value are None and Hardware RTS/CTS. VT-UTF8 Combo Key Support Enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The settings for this value are Enabled and Disabled.
-
Page 37: Chipset Setup
SETO-1000 4.4 Chipset Setup Select the Chipset tab from the setup screen to enter the Chipset BIOS Setup screen. You can select any of Chipset BIOS Setup options by highlighting an option using the < Arrow > keys. The Chipset... -
Page 38: North Bridge Configuration
SETO-1000 4.4.1 North Bridge Configuration IOH Configuration Select the Intel(R) VT for Directed I/O Configuration. Options: Enabled/Disabled. Intel(R) VT-d Intel® Virtualization Technology for Directed I/O. Options: Enabled/Disabled. 82599 Speed(IOH1P3AB)/CN2 Speed(IOH2P3A) This item is for configuring the link speed for 82599 and CN2 device... -
Page 39: South Bridge Configuration
SETO-1000 DIMM Information Display DIMM presence and size information. 4.4.2 South Bridge Configuration SMBus Controller The SMBus controller. Options: Enabled/Disabled. Onboard SATA RAID OpROM Onboard SATA RAID OpROM if launch storage OpROM is enabled. Options: Enabled/Disabled. - Page 40 SETO-1000 4.4.2.1 USB Configuration All USB Devices Enable/Disable all USB devices. Options: Enabled/Disabled.
-
Page 41: Server Mgmt Setup
SETO-1000 4.5 Server Mgmt Setup You can use this screen to specify options for the Server Management settings. Use the up and down <Arrow> keys to select an item. Use <+> and <-> keys to change the value of the selected option. -
Page 42: System Event Log
SETO-1000 4.5.1 System Event Log You can use this screen to specify options for the System Event Log settings. Use the up and down <Arrow> keys to select an item. Use <+> and <-> keys to change the value of the selected option. -
Page 43: Boot Setup
SETO-1000 4.6 Boot Setup Select the Boot tab from the setup screen to enter the Boot BIOS Setup screen. You can select any of the items in the left frame of the screen, such as Boot Device Priority, to go to the sub menu for that item. -
Page 44: Security Setup
SETO-1000 4.7 Security Setup Administrator / User Password If only the administrator’s password is set, then this limits access to setup and is only asked for when entering setup. If only the user’s password is set, then this is a power on password and must be entered to... -
Page 45: Save & Exit Menu
SETO-1000 4.8 Save & Exit Menu Select the Exit tab from the setup screen to enter the Exit BIOS Setup screen. You can display an Exit BIOS Setup option by highlighting it using the < Arrow > keys. The Exit BIOS Setup screen is shown below. - Page 46 SETO-1000 Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving any changes. Save Changes Save changes done so far to any of the setup options. Discard Changes Discard Changes done so far to any of the setup options.
- Page 47 SETO-1000 Save as User Defaults Save the changes done so far as user defaults. Restore User Defaults Restore the user defaults to all the setup options.
-
Page 48: Event Logs Menu
SETO-1000 4.9 Event Logs Menu You can use this screen to specify options for the Event Log settings. Use the up and down <Arrow> keys to select an item. Use <+> and <-> keys to change the value of the selected option. The settings are described in the following pages. - Page 49 SETO-1000 Erasing Settings Erase Event Log If No is selected, data stored in the event log will not be erased. Select Yes, Next Reset, data in the event log will be erased upon next system reboot. Select Yes, Every Reset, data in the event log will be erased upon every system reboot.
-
Page 50: Safety Instructions
SETO-1000 Safety Instructions For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. Read these safety instructions carefully. Keep this user’s manual for future reference. -
Page 51: Consignes De Sécurité Importantes
SETO-1000 Consignes de Sécurité Importantes Pour assurer la sécurité de l’utilisateur, veuillez lire et suivre toutes les directives, ainsi que les AVERTISSEMENTS, MISES EN GARDE et REMARQUES de ce manuel et indiqués sur l’équipement associé avant de manipuler ou utiliser l’équipement. -
Page 52: Getting Service
5215 Hellyer Avenue, #110, San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. Address: 上海市浦东新区张江高科技园区芳春路 300 号 (201203) 300 Fang Chun Rd., Zhangjiang Hi-Tech Park, Pudong New Area Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com...
