Perma CLASSIC Quick Start Manual

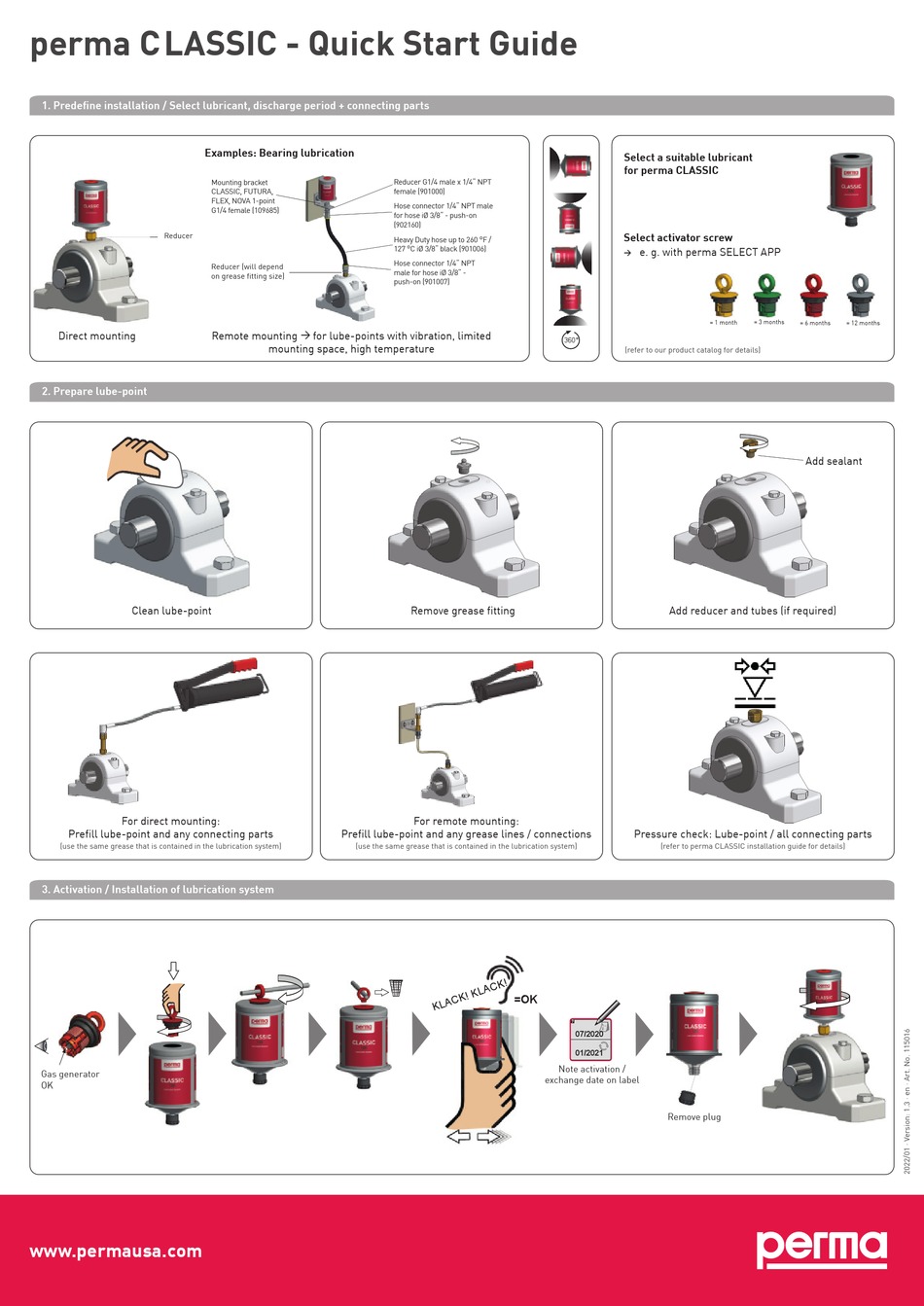

perma C LASSIC - Quick Start Guide
1. Predefi ne installation / Select lubricant, discharge period + connecting parts
Reducer
Direct mounting
2. Prepare lube-point
Clean lube-point
For direct mounting:
Prefi ll lube-point and any connecting parts
(use the same grease that is contained in the lubrication system)
3. Activation / Installation of lubrication system
Gas generator
OK
www.permausa.com
Examples: Bearing lubrication
Mounting bracket
CLASSIC, FUTURA,
FLEX, NOVA 1-point
G1/4 female (109685)
Reducer (will depend
on grease fi tting size)
Remote mounting  for lube-points with vibration, limited
mounting space, high temperature
Prefi ll lube-point and any grease lines / connections
(use the same grease that is contained in the lubrication system)
Reducer G1/4 male x 1/4" NPT
female (901000)
Hose connector 1/4" NPT male
for hose iØ 3/8" - push-on
(902160)
Heavy Duty hose up to 260 °F /
127 °C iØ 3/8" black (901006)
Hose connector 1/4" NPT
male for hose iØ 3/8" -
push-on (901007)
360°
Remove grease fi tting
For remote mounting:
=OK
Note activation /
exchange date on label
Select a suitable lubricant
for perma CLASSIC
Select activator screw
e. g. with perma SELECT APP

= 1 month
(refer to our product catalog for details)
Add reducer and tubes (if required)
Pressure check: Lube-point / all connecting parts
(refer to perma CLASSIC installation guide for details)
7
1...
2
07/2020
01/2021
Remove plug
= 3 months
= 6 months = 12 months
Add sealant
