Installation Guide
perma FUTURA / perma FUTURA PLUS
The Expert in Lubrication Solutions

Advertisement

loading
Need help?

Need help?

Do you have a question about the FUTURA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Perma FUTURA

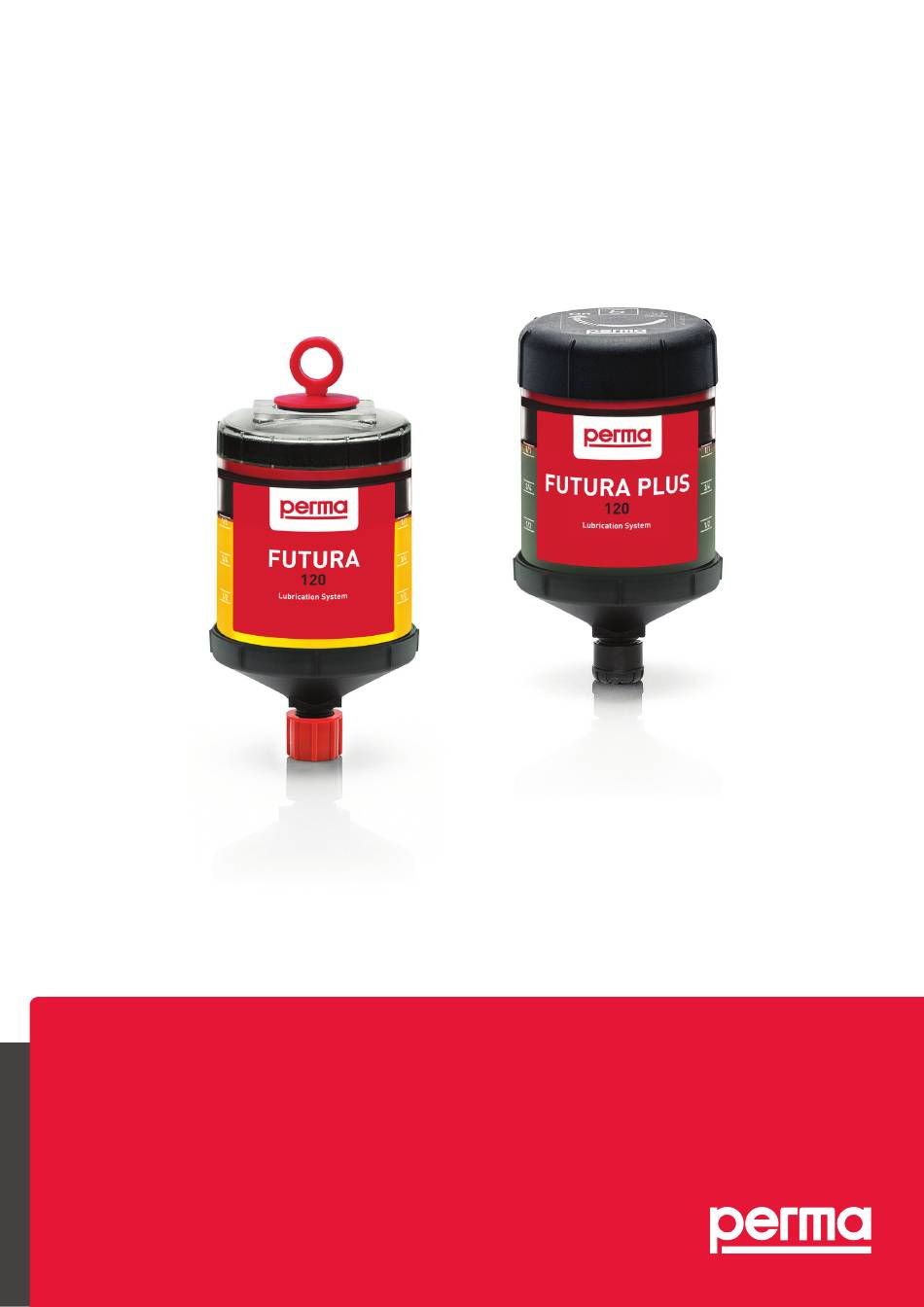

  • Page 1 Installation Guide perma FUTURA / perma FUTURA PLUS The Expert in Lubrication Solutions...
  • Page 2 © 2019 perma-tec GmbH & Co. KG The content of this document has been compiled by perma-tec with mediculous care. Never-the-less, we cannot rule out deviations and reserve the right to make technical changes to the product without any advance notice. We do not assume any judicial responsibility or liability for any damages which may ensue as a result.
  • Page 3 Please check our product catalogue for more information on how to select suitable lubricant and activator screw (perma FUTURA) / activation cap (perma FUTURA PLUS). You may also download our free perma SELECT APP which is a great tool for the selection of the right lubrication system, lubricant and discharge period.
  • Page 4: Mounting Types

    2. Mounting types 2.1 Direct mounting Direct mounting should be preferred for all lubrication points, to protect the lubrication system against high pressure. Reducer for thread connection Installation of perma FUTURA / perma FUTURA PLUS is possible in all directions.
  • Page 5 Keep in mind that tube length and bore diameter of bearing housings affect pressure and discharge period of the lubrication system. • For installation of perma FUTURA / perma FUTURA PLUS use Mounting bracket 1-point G1/4 female (109685). • Secure tubes with suitable fastenings (brackets, cable ties) to protect against damage and tearing.
  • Page 6: Remote Mounting

    2.3 Mounting of oil filled units 2.3.1 Direct mounting All oil filled perma FUTURA / perma FUTURA PLUS come with an integrated oil retaining valve. They can be installed directly on a lubrication brush without the need for an additional oil valve.
  • Page 7 1. Prior to installation, lubrication point must be cleaned to protect against contamination. 2. Remove grease nipple or plug screw of connecting thread and check thread size. 3. Insert reducer and install tube and necessary accessory parts. © 2019 - perma-tec www.perma-tec.com GmbH & Co. KG...
  • Page 8 4. Lubrication point, accessory parts and tubes must be pre-filled with lubricant. This enables the lubricant to immediately reach the lubrication point. Grease gun (101455) Hose with rotary joint, slide and hydraulic coupling for grease gun (110199) Tube prefill adapter 5.
  • Page 9: Pressure Testing

    Check counter pressure at lubrication point before installing the lubrication system to guarantee correct function. Most bearings require 0.5 - 2 bar pressure (without extension tubes). perma FUTURA / perma FUTURA PLUS can be used for these lubrication points. perma STAR VARIO...
  • Page 10 (Caution: Observe accident prevention regulations). 5. Open stop valve. 6. Push SET button on perma STAR VARIO for approx. 10 seconds until PU lights up on display to trigger an additional discharge/purge. 7. Watch the pressure on the gauge during the additional discharge.
  • Page 11 GmbH & Co. KG Art. No. 106997 | FU-1709-37337 Hammelburger Str. 21 | 97717 EUERDORF perma Multipurpose grease SF01 www.perma-tec.com | Tel.: +49 9704 609-0 Made in Germany 120 cm³ / 4.06 fl .oz. (US) Installation date and Art. No. | Serial number exchange date (Product designation –...

This manual is also suitable for:

Futura plus
