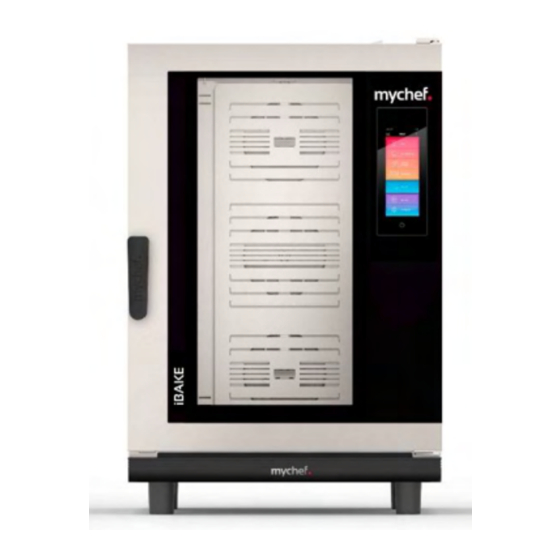

iBAKE
Product Manual
Installation, use and maintenance
1
mychefcooking.com
PRODUCT MANUAL
iBAKE
-
DT.MP.IB.2201.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iBAKE and is the answer not in the manual?

Questions and answers

Related Manuals for Mychef iBAKE

Summary of Contents for Mychef iBAKE

  • Page 1 Product Manual Installation, use and maintenance mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 2: Table Of Contents

    INDEX 1. INTRODUCTION ..................... 5 2. TECHNICAL CHARACTERISTICS..............6 2.1. Main characteristics Mychef iBAKE ................ 6 3. GENERAL SAFETY AND ACCIDENT PREVENTION REGULATIONS ....7 3.1. Personnel responsible for using the equipment ..........7 3.2. Electrical hazard ....................... 7 3.3. Thermal hazard......................7 3.4.
  • Page 3 7.6. MyCare ........................56 7.7. Recipes ........................63 7.7.1. Recipes ......................64 7.7.2. My Recipes ....................65 7.7.3. By ingredients ....................66 7.7.4. Managing recipes from Mychef Cloud ............. 67 7.8. Settings ........................68 7.8.1. Date/time...................... 69 7.8.2. Language...................... 70 7.8.3. Volume......................71 7.8.4.
  • Page 4 8.2. Periods of inactivity ....................95 8.3. Disposal at the end of the useful life..............95 8.3.1. Information on disposal in Spain ............... 96 8.3.2. Information on Disposal in the European Union ........96 8.4. Preventive maintenance ..................96 mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 5: Introduction

    The equipment is shipped from the factory once it has been calibrated and has passed rigorous quality and safety tests that ensure its correct operation. The manufacturer will disclaim any responsibility for problems caused by improper installation, modification, use or maintenance. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 6: Technical Characteristics

    (mm) 4 600x400 6 600x400 10 600x400 Capacity Distance 85mm 85mm 85mm between guides (mm) Table 1. Main characteristics of Mychef iBAKE ovens The maximum recommended food load per 600x400 tray is 5 Kg. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 7: General Safety And Accident Prevention Regulations

    160 cm or more high. There is a risk of injury caused by the hot contents of the trays. While the oven is in operation, avoid touching metal parts and the door glass as they may exceed 60°C. Touch only the handle and the control panel. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 8: Corrosion Hazard

    MyCare CleanDuo and DA21 cleaning products have been specially formulated for the correct cleaning and protection of Mychef ovens with automatic washing. The product contains, in addition to detergent, polish for a perfect finish. The use of this detergent is...

  • Page 9: Reception, Transport And Positioning

    Make sure that during transport it does not tip over and is not hit by any object. Be careful with the legs and the siphon when positioning the oven on the final location. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 10: Positioning

    50mm from the back o 500mm from the top The equipment should be placed on a Mychef support table or wall mount. If there are sources of heat or steam near the equipment (stove, grill, iron, deep fryer, pasta cooker, kettle, tilting frying pan etc.), these must be at a distance of more than 1 meter.
  • Page 11 Be extremely careful with the cooling areas of the oven. If it sucks in vapors or hot air it can drastically reduce the life span of the components. For the installation of Mychef stacked ovens, follow the instructions supplied with the corresponding stacking kit.

  • Page 12: Installation

    The connection to an equipotential system guarantees additional safety in case of simultaneous earth leakage and differential failure. The wiring and other safety devices used for the electrical installation must have the appropriate section for the equipment in question. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 13: Three-Phase Connection 400V 3L+N

    Never connect a phase to neutral or ground. Check that the installation voltages correspond to those of the equipment. The following subchapters show the three possible types of connections for Mychef ovens. The voltage of each oven can be found on its identification sticker.

  • Page 14: Single-Phase Connection 230V L+N

    Copper (Cu) less than 0.05 mg/L Conductivity less than 20uS/cm Use of descaler and Mychef filter mandatory. The use of water with different characteristics than those indicated may cause serious problems in the components of the oven, such as corrosion in the cooking chamber or the glass, premature failure of the solenoid valves, etc.

  • Page 15: Drain

    5.2.2. Drain For the correct operation of the steam system of the iBAKE ovens, the equipment must be connected to a drainage system with a nominal diameter of 40mm (DN40) through a heat- resistant, siphon-type pipe.

  • Page 16: Vapour Condensation Hood

    5.3. Steam condensation hood Refer to the installation manual supplied with the fume hood for installation. The steam condensation hood is an optional extra. The hood can be installed once the oven is installed. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 17: Inicial Registration

    6. INICIAL REGISTRATION 6.1. Mychef iBAKE start up This short instruction is intended to explain the steps to follow to start the Mychef iBAKE oven for the first time. 1. Turn on the oven. Then select a language and press "Done".
  • Page 18 Make sure you enter a valid email address to receive the access credentials. • All fields must be completed. 4. If you already have a user account: enter the email address and password. The oven will sync. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 19 5. Access the "Installer Mode" and complete the fields with the required data. 6. System analysis The oven will begin a general check to make sure the installation was done correctly. Follow the onscreen prompts. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 20 8. Access to the Mychef Cloud App With the credentials received via email, it is possible to access the Mychef Cloud application from where it will be possible to synchronize with the cloud and carry out more advanced management of the oven.
  • Page 21 Visualization of HACCP graphics. Management of fast access programs FastMenu. Remote activation / deactivation / replication of FastMenu mode in one or more ovens. Language settings The app is available for both Android and iOS devices. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 22: Use

    7.1.2. First use Once you have connected your Mychef oven for the first time, you will need to access the Wi-Fi network to synchronize with the cloud. A check on available software updates and if necessary, the download and update of the system will then be executed.

  • Page 23: Main Menu

    Each time you start the oven after initial setup, you will be taken directly to the main menu shown in the picture below. Figure 5. Main menu display This menu is structured in three main sections: Cooking (Chef, SmartCooking, Cooking planner, Regenerate) Self-cleaning (Mycare) Recipes and Settings mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 24: Mychef Ibake Main Functions

    Mychef - Food selection assisted cooking CookingPlanner – Assistant for planned cooking Regenerate – Cooked Food Regeneration Assistant MyCare – Self-cleaning programs Recipes – Access to user and Mychef recipe books Settings – Access to oven settings 7.1.4. Mychef iBAKE main functions Chef The Chef cooking mode allows cooking by manual parameter adjustment: •...
  • Page 25 My Recipes: With this recipe book you can create your own recipes in a simple and intuitive way, from your Mychef oven or from the mobile phone or tablet application "Mychef Cloud". Up to 400 different recipes can be cooked and administered.

  • Page 26: Navigation

    Settings In this menu, all settings of the Mychef oven can be set. Help The "i" icon in the heading gives access to the help screen, it is present on all screens. Provides a full description of the current screen and user interface usage.

  • Page 27: Chef

    "My Recipes" for future use. It is also possible to add a description of the steps required for cooking. By using the "Mychef Cloud" application or the USB, it will be possible to add images of the plating procedure and suggestion.

  • Page 28: Cooking Options

    Cooking Check settings Direct steam injection allows the user to increase the humidity of the chamber at specific moments during cooking. The duration of the injection is related to the time this button is pressed. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 29 During cooking, an on-screen notification and on the mobile device will prompt the operator to take action. For example, add a broth after 15 minutes from the start of cooking. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 30: Chef Menu

    There are 400 programs that can be edited and retrieved at the user's request. All of them can have up to 9 cooking cycles. To start a cooking, it is necessary to define at least one cycle. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 31 In case of any error, the unit will stop and display the error code (see chapter 7.8.17). The oven will not operate if the door is open. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 32 The steam mode saturates the cooking chamber with moisture. -100 % <-> 100 % 100% Humidity ΔT Temperature Tª Tº Probe Time Continuous Auto Manual In order to prolong the life of your oven, it may automatically reduce the maximum cooking chamber temperature. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 33: Temperature Cooking And Time Control

    When the circular button START/STOP is pressed, the oven will start heating the chamber and stop after the set time has elapsed. Example of cooking at 90ºC for 10 min: Figure 9. Example. Cooking 90ºC in steam mode for 10 minutes mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 34 Whenever cooking is started by pressing the circular button START/STOP, the oven automatically calculates the room temperature in the chamber and decides whether a heating or cooling process should be carried out depending on the desired value. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 35 Once the oven reaches the preheating temperature, the user will be told that the oven can be charged by means of an acoustic and visual warning: an animation will be shown on the screen as in the picture. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 36 TEMPERATURE and PROBE buttons respectively and adjusting them. Pressing the circular button START/STOP button will start the oven to warm up and stop when the core probe temperature is equal to the probe set point temperature. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 37 By pressing the cooking options button, we can control the temperature of the probe through the "Cooking Check" option: If you wish to adjust any of the cooking parameters, press: mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 38 Auto mode: The fan speed will be adjusted automatically according to the type of cooking being carried out, optimizing the cooking result. Manual Mode: This mode allows you to select the fan speed from a range of 4 speeds. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 39: Editing Cycles

    Accessing through the edit option of the drop-down menu, you can access the editing of the parameters. Through the App it will be possible to edit the rest of the recipe fields, including the preparation, photos, etc. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 40: Initiate Cooking

    Initiate cooking Once the cooking parameters have been selected, either manually or in a specific program, we can start the process. To do this, press the circular button START/STOP key, and the following screen will appear: mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 41 This screen also allows you to cancel the cooking and add a standby cooking. In the latter case, the cooking will remain in standby, and a new cooking can be configured. Once the programming of the next program has been completed, the cooking can be started. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 42: End Of Cooking

    Save recipe: With this option, it will be possible to save the parameters in the recipe book by creating a recipe and reuse it in the future. Parameter settings do not need to be reset. It is possible to save a recipe before or after cooking. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 43: Smartcooking

    The same happens with the SmartBaking mode, with this mode is possible to select between different types of pastry preparations. For example: Pastry → Frozen Pastry → Bake → Set cooking parameters → START/STOP circular button Figure 18. SmartCooking screen mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 44: Smartbaking Mode

    7.3.1. SmartBaking mode The SmartBaking mode makes available certain cooking profiles, where it will be possible to select and modify the cooking parameters, starting the cooking immediately to obtain an optimal result. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 45 To start cooking, once all parameters have been set, press the circular button START/STOP. A summary of the selected cooking is shown below. If cooking is to be started, selecting "Start now" will start cooking, the LED will illuminate and the cooking indicator in the header will activate. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 46: Go & Cook

    Sous vide and MySmoker. When you select the preparation mode, for example: Frying, you access the cooking parameters screen. In this case it is possible to select Fry by Time or by Probe, as shown below: Figure 20. Example of Go&Cook mode parameter selection mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 47: Save A Cooking Configuration Or Create A Recipe

    After selecting a category and entering a name with which to save the recipe. To complete the recipe edition, it will be necessary to access the “Mychef Cloud” application. It is possible to edit the recipe and choose the type of tray that is recommended...
  • Page 48 It is possible to adjust the number of diners or trays to know exactly the quantities of ingredients to be used in each case. By means of the parametric calculation, the ingredients section will show the new quantities required for the preparation of the recipe. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 49: Cookingplanner

    To load a CookingPlanner, select Multilevel or JustInTime and press the (+) button at the desired level, then access the recipe book where the recipes compatible with this cooking mode appear. Then select a first recipe and click "Add to Multilevel" or "Add to JustInTime". mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 50 Additional products can be loaded, cooking stops when the door is opened. When the door closes, the process will resume. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 51 In this case, the system will notify when trays need to be introduced based on cooking time to allow all food to be cooked at a particular time. This cooking mode maintains the set temperature and humidity. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 52: Save Cookingplanner

    You can save a list of recipes in Multilevel or JustInTime under "My Recipes", either after loading all the recipes you want to cook, through the save option in the header, or once the process is finished, as shown below: mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 53: Regenerate

    Once regeneration is complete, a maintenance cycle starts at 65°C, which will end only when the circular button START/STOP is pressed. Note: For temperature settings below 160°C the use of probe is recommended. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 54 SmartCooking Mode: This regeneration mode allows you to regenerate food by category, with assistance. Simply select the type of feed and adjust the parameters shown in the following screen and press the circular button START/STOP. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 55 Figure 28. Regenerate mode SmartCooking mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 56: Mycare

    7.6. MyCare Using the Mychef cleaning system allows automatic cleaning of the cooking chamber. This option includes several self-cleaning profiles available, as shown below: Figure 29. MyCare self-cleaning programs Rinse: Program of rinsing the chamber with water. Eco Washing: This program allows an efficient washing with optimization of resources.
  • Page 57 5 min Table 7. Self-cleaning and rinsing programs (MK3 system) When starting a washing program, it is necessary to know the instructions for use and warnings of danger that appear on the MyCare "CleanDuo" washing tablets. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 58 It also includes a polishing additive for a perfect all-in-one finish. This allows you to use only one MyCare CleanDuo tablet per wash, with the consequent savings and ease of use. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 59 In certain cases, before the start of the washing program, it will be necessary to cool the chamber by means of the Cooldown action in order to ensure that the washing mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 60 Before starting any cleaning process, make sure that the water flow to the unit is open. If cooling is not required, you can place the MyCare detergent directly in its assigned space and start the cleaning or rinsing. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 61 Once you have started the automatic process do not open the door under any circumstances, as chemicals used for cleaning and steam may escape. This situation would pose a significant risk of corrosion and burns. Never open the door of the cooking chamber during an automatic cleaning process. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 62 If there is a power failure during the cleaning process, an error message will be displayed on the control panel (error 26) when the oven is turned on again. In this case, and in order mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 63: Recipes

    7.7. Recipes The Mychef combi oven allows recipe management as follows: Recipes: recipes created and managed by Mychef in which recipes are periodically uploaded through the cloud. My Recipes: in this recipe book you can create and change your own recipes.

  • Page 64: Recipes

    When you access this recipe book, by scrolling horizontally you will be able to see all the recipes available in the Mychef cloud. This recipe book will be updated every time new recipes are made available in the cloud, as long as the oven has an Internet connection.

  • Page 65: My Recipes

    CookingPlanner mode, the corresponding icon will appear in the top left corner of the preview. You can download recipes from USB devices as well as save them (see section 7.8.12). Figure 38. My Recipes main screen mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 66: By Ingredients

    By searching for one or more ingredients, the user interface will display the recipes available containing those ingredients, from among all the recipes available, both in Recipes and My Recipes. Figure 39. By ingredients main screen The names of the recipes are given as examples. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 67: Managing Recipes From Mychef Cloud

    7.7.4. Managing recipes from Mychef Cloud The Mychef Cloud app allows you to manage recipes from the "Recipes" mode. The operation is similar to that of the user interface of the combi oven, as indicated in the previous sections. The application allows the user to create recipes without having to be in the presence of the oven.

  • Page 68: Settings

    7.8. Settings This section describes the operations required for the correct configuration of the Mychef combi oven. Some of the functions have access rights, so it will only be possible to access them by entering a password. For more detailed information, refer to the help available on the screen.

  • Page 69: Date/Time

    7.8.1. Date/time To set the date and time, press or select on the buttons and adjust. To exit, press the back arrow and the configuration will be saved. Figure 41. Date/time configuration mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 70: Language

    7.8.2. Language To change the language, navigate between the available languages, and select the desired language. To exit, press the back arrow and the setting will be saved. Figure 42. Language configuration mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 71: Volume

    For example, the end of a cooking or an alarm. The volume setting also allows the sound to be muted. Figure 43. Sound configuration mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 72: Lighting

    7.8.4. Lighting The duration of the chamber lighting can be adjusted between the options displayed on the screen. Select the desired option and press back and the configuration will be saved. Figure 44. Chamber light configuration mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 73: Smart Assistant

    In order to avoid burns or steam discomfort when opening the door, Mychef ovens can remove steam from the chamber at the end of the cooking process. Even when in convection mode, this extraction can be useful to eliminate the steam that may be released from food in the cooking chamber.

  • Page 74: Maintenance

    7.8.6. Maintenance The Mychef combi oven has a preventive maintenance plan that will extend the life of the oven and its operation in optimal conditions. Depending on the hours of use, the user interface will show which maintenance plan to follow, and the technical service contact you should contact.
  • Page 75 Adjustment of the internal screws and bolts Check C: Change of chimney pipes and drain pipes Change of solenoid valve for water injection Resistor contactor change Check D: Engine change Change of resistance and seal Water injection pipe gasket replacement mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 76: Probe

    Probe 4 Multipoint probe 4 Probe 5 Multipoint probe 5 Probe 6 Multipoint probe 6 Probe 7 SmartClima probe Probe 8 Probe chamber Probe 9 PCB temperature Probe 10 Inverter temperature Table 8. Section P4, Probes mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 77: System Analysis

    The existence of any anomaly in any of the previous points will prevent the operation of the oven. Therefore, it will be necessary to carry out the necessary actions and repeat the check until the system analysis is satisfactory to continue. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 78: System

    To do this, click on the Restore Values button. The restoration will start automatically. All values shall be restored except for the oven type, the number of TSC channels, the self- cleaning type, the fan type and the statistical values of the oven. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 79: Accounts

    7.8.11. Accounts This option allows you to consult the data corresponding to the user of the oven and the Technical Support Service. Figure 49. Consultation and configuration of accounts mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 80: Usb

    The equipment allows the recording of temperatures and events occurring during normal use. To record data, insert a memory into the USB connector in the lower right corner of the oven. To access it, it is necessary to open the door and then open the glass. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 81: Consumption

    In this section is possible to consult the data corresponding to the energy consumption of the oven and HACCP. In order to know the water and energy consumption, it is possible to delimit the desired range, be it annual, monthly, daily or hourly. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 82 Figure 52. Consumption data Similarly, by accessing the HACCP Data option and setting the desired range, it will be possible to display the graph corresponding to the HACCP data record. Figure 53. Consumption progress mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 83: Measurement System

    Autoclean MyCare No (TS) FanConfig Fan and inverter type No (TS) RelayTest Relay test relays 1 to 15 No (TS) GPIOTest Test GPIOs No (TS) TSCTest Test TSC No (TS) InverterTest Test inverter No (TS) mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 84 Statistical logs primarily store runtime, cycle repetition, and wear and tear values of certain elements to monitor the life cycle and maximize the efficiency of all oven components. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 85: Nightwatch

    NightWatch functionality. Pressing the circular button START/STOP key in this state will cancel automatic recovery. If it is not cancelled, the Mychef oven automatically checks the temperature of the cooking chamber. If the temperature is below 56°C there may be a risk of bacterial contamination.

  • Page 86: Errors And Alarms

    No detergent detected. Not used. ERROR PROBE1 TEMP SENSOR External probe not connected. Check the external NOT CONNECTED probe and connector. ERROR PROBE1 TEMP SENSOR External probe short-circuited. Check the external SHORTED probe and connector. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 87 56ºC. Risk of bacterial contamination. Dispose of or test product. Inverter is not getting the correct voltage. Check 29.1794 ERROR INVERTER the voltage supply to the inverter and to the oven. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...
  • Page 88 Table 10. Errors, alarms, and possible solutions Always run a self-cleaning or rinsing program when Error 26 occurs. Check whether errors can be removed by your own means, or if not, contact your service representative. mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 89: Maintenance

    Door water drain Weekly Interior-exterior door compartment Weekly Table 11. Cleaning frequencies for Mychef ovens Regarding the exterior cleaning of the oven, it is strictly forbidden to use: Powder abrasive detergents Aggressive or corrosive detergents (For example: Sulfuric acid, Hydrochloric acid ...).

  • Page 90: Cooking Chamber

    Cleaning equipment with pressurized water. Steam cleaning equipment. Any use of the elements described above is harmful to the equipment and could cause it to break and would void its warranty, Mychef disclaims any responsibility in this case. 8.1.1. Cooking chamber Mychef iBAKE ovens feature self-cleaning as standard (MyCare) for automatic and unsupervised cleaning of the cooking chamber.

  • Page 91: Stainless Steel Exterior Surfaces

    Only use a soft cloth with a little soapy water to clean the interior surfaces. Rinse and dry carefully. Before removing the fan protector, the tray guides must be removed. Figure 55. Fixing system of the fan and exchanger protector mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 92: Plastic Outer Surfaces And Control Panel

    To clean these more delicate surfaces (support of the control and the control itself) only a very soft cloth and a cleaning product for delicate surfaces should be used. Take special care with the control panel, Mychef will not be responsible for damage caused to this element if it is not cleaned properly.

  • Page 93: Tray Support

    Only use a soft cloth with a little soapy water to clean the stainless-steel guide bodies. Do not use abrasive elements, rinse and dry carefully. Figure 56. Detail of the extraction process of the guides' structure mychefcooking.com PRODUCT MANUAL iBAKE DT.MP.IB.2201.2...

  • Page 94: Door Glasses

    8.1.7. Door glasses Mychef iBAKE ovens are equipped with a high thermal efficiency door with three glasses to reduce heat losses to the maximum. In order to clean these three glasses and the door itself, the outer door must be opened and the clips that hold the two glasses open.

  • Page 95: Periods Of Inactivity

    Do not use the hand shower accessory on the door glass while it is hot, there is a risk of breakage due to thermal shock. 8.2. Periods of inactivity If the Mychef oven is not used for long periods of time, the following precautions should be followed: •...

  • Page 96: Information On Disposal In Spain

    These periodic checks must be carried out by an authorized technical service. The following table shows the operations to be performed on Mychef ovens at each of the revisions. The table is circular, and from 20.000h of use or 10 years would start counting again on the left of the table.
  • Page 97 Mychef maintenance program 2000 4000 6000 8000 10000 12000 14000 16000 18000 20000 Firmware update Water hardness test Cooling fans cleaning of Electronic cleaning Drainage tray and siphon cleaning Review A Changing the gasket and adjusting the door Ionization rated current check *...
