Summary of Contents for Mychef EVOLINE

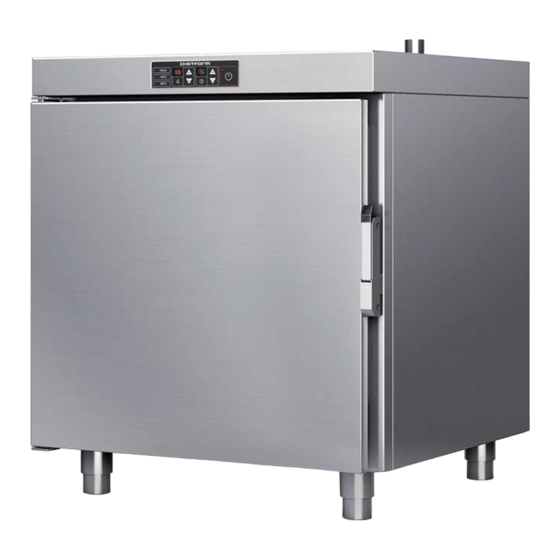

- Page 1 EVOLINE Product Manual Installation, use and maintenance PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2 mychefcooking.com...
-
Page 2: Table Of Contents
4.2. Transport ........................8 4.3. Positioning ........................ 9 5. INSTALLATION ..................... 10 5.1. Electrical connection ..................... 10 5.1.1. Evoline three-phase models ..............10 5.1.2. Evoline single-phase models ..............11 5.2. Water connection (appliances with humidity) ............ 12 5.2.1. Water input ....................12 5.2.2. -
Page 3: Introduction
The equipment is shipped from the factory once it has been calibrated and has passed rigorous quality and safety tests that ensure its correct operation. The manufacturer will disclaim any responsibility for problems caused by improper installation, modification, use or maintenance. mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2... -
Page 4: Technical Characteristics
Built for a temperature range from 65ºC to 160°C. • Easy-removal guides • Water connection (models with humidity). • Direct water injection (models with humidity). • Made of stainless-steel. • Adjustable legs to facilitate alignment and appliance stability. mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2... - Page 5 F0470512 743x723x825 FS470512 F0460611 400V, 3L+N; F0470611 773x729x890 1.23 50-60 Hz FS470611 F0461011 F0471011 773x729x1250 1.39 10** 10.5 FS471011 Table 1. Dimensions and characteristics *GN 2/3 TRAYS 65mm HEIGHT **GN 1/1 TRAYS 65mm HEIGHT mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2...
- Page 6 5 2/3 GN trays FS470523 F0460511 5 1/1 GN trays F0460512 F0470512 5 1/1 GN trays FS470512 F0460611 F0470611 6 1/1 GN trays FS470611 F0461011 F0471011 10 1/1 GN trays FS471011 Table 2. Evoline models mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2...
-
Page 7: General Safety And Accident Prevention Regulations
1.60 m or more high. There is a risk of injury caused by the hot contents of the GN trays. While the oven is in operation, avoid touching metal parts that may exceed 60°C. Touch only the handle and the control panel. mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2... -
Page 8: Reception, Transport And Positioning
The regenerator must always be in an upright position during transport. It must be lifted perpendicularly to the ground and transported parallel to it. Make sure that during transport it does not tip over and is not hit by any object. mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2... -
Page 9: Positioning
100mm from the rear o 500mm from the top The equipment should be placed on a Mychef support table or wall mount. If there are sources of heat or steam near the equipment (stove, grill, iron, deep fryer, etc.), these must be at a distance of more than 1 metre. -
Page 10: Installation
Before carrying out any electrical work, make sure that no electrical current is supplied at the point of connection of the equipment. 5.1.1. Evoline three-phase models For proper connection after positioning, the device has a five-wire, approximately 2 m long, H05RN-F type cable. -
Page 11: Evoline Single-Phase Models
In any case, respect the regulations in force for the connection of the equipment to the low voltage network. 5.1.2. Evoline single-phase models For proper connection after positioning, the device has a plug that connects to the grid. Take the following precautions: a) Verify that the voltage / current source required by the appliance corresponds to its electrical system (230V/16A). -
Page 12: Water Connection (Appliances With Humidity)
Note that the tube must have a constant slope of at least 5°. The drain must be a maximum of 1 meter long, have a diameter greater than the drain connection and be free of bottlenecks. mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2... -
Page 13: Use
Time selection button. Allows for programming the Modify time button operating time from the moment the chamber has reached the set temperature. Table 6. Control panel buttons functions * Not available in the model without humidity mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2... -
Page 14: Operation
When any regeneration process is finished, in which the time value was set to “undefined,” an audible signal will be heard, and the device will automatically switch to maintenance mode until the user intervenes. mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2... -
Page 15: Door Open
The user is notified of these situations with an error screen such as the one shown below, depending on whether the model is with or without humidity: Figure 6. Error screen for models with humidity mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2... - Page 16 Once the appliance has detected a serious error, it will not function normally until it is repaired. The appliance runs automatic checks which may result in it turning off to prevent a serious error. Turn it on as usual. mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2...
-
Page 17: Maintenance
Leaving the door open for at least 1 hour for ventilation is also recommended. Models without humidity do not have a drain; be careful when rinsing the inside because liquids can overflow through the door. mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2... -
Page 18: Door Gasket
Regenerators are designed for intensive and long-lasting operation. For this to happen, in addition to regular cleaning tasks, preventive maintenance must be carried out. These periodic checks must be carried out by specialized technicians or dealer or technical service. mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2... -
Page 19: Ce Marking
8. CE MARKING The EVOLINE regenerator bears a name plate with the following specifications and references: Manufacturer: Distform, S.L. Item: Series number: Electrical features Year manufactured. Figure 8. CE marking label This regenerator has been manufactured according to the following standards:... -
Page 20: General Electric Blueprint
9. GENERAL ELECTRIC BLUEPRINT Blueprint 1. EVOLINE electric circuit 5, 6, and 10 three-phase with TSC mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2... - Page 21 (3) R2 only in 10 GN and 15 GN K1 N Convection fan PTC0 Core probe (2) PTC1 Chamber KEYBOARD CONTROL Buzzer Door switch Blueprint 2. EVOLINE electric circuit 5, 6, and 10 three-phase without TSC mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2...
- Page 22 K2 N Convection fan K1 L K1 N PTC 1 Core Probe (2) Chamber PTC 0 KEYBOARD CONTROL DOOR SWITCH Blueprint 3. EVOLINE electric circuit 5 2/3 GN and 1/1 GN single-phase with TSC mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2...
- Page 23 (2) Only in models with core probe K1 N Convection fan PTC0 Core probe (2) PTC1 Chamber KEYBOARD CONTROL Buzzer Door switch Blueprint 4. EVOLINE electric circuit 5 2/3 GN and 1/1 GN single-phase without TSC mychefcooking.com 210208_A PRODUCT MANUAL EVOLINE DT.MP.EV.2103.2...
