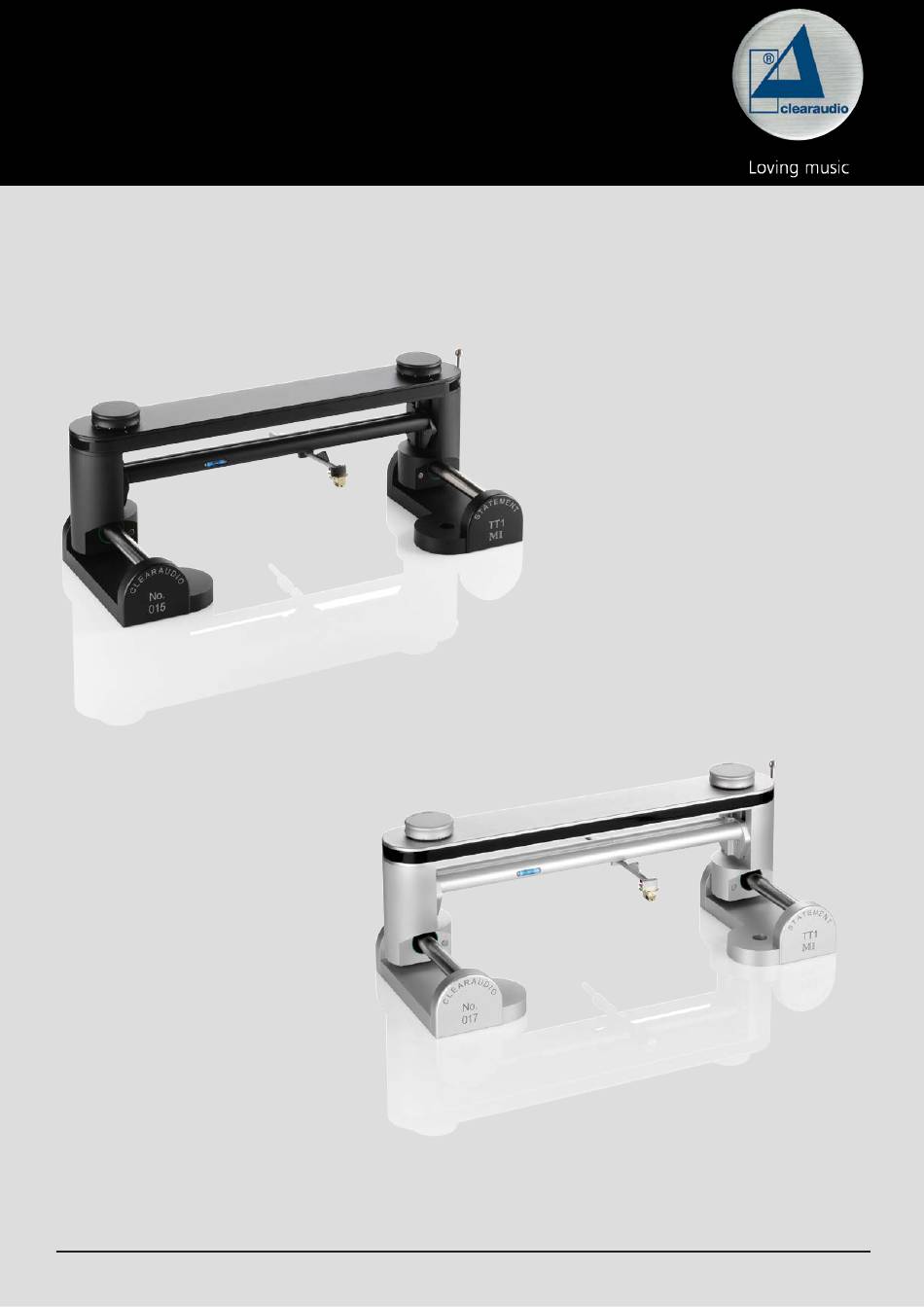

- Page 1 TT1 MI User manual Pic. similar Pic. similar © clearaudio electronic GmbH, 2022-01 Made in Germany...
- Page 2 TT1 MI We wish you much pleasure with your new Clearaudio tangential tonearm. Clearaudio electronic GmbH © clearaudio electronic GmbH, 2022-01...
- Page 3 Safety instructions 1. Maintenance • If the TT1 MI tonearm is not in use for a long period, please cover the tonearm to protect it from dust. • Please make sure that the precision dry ball bearings are not cleaned or lubricated in any way.
-
Page 4: Table Of Contents
9. Fine adjustment of the tonearm 9.1 Adjustment of the tangential alignment ..............13 9.2 Adjustment of the VTA ....................14 9.3 Adjustment of the azimuth ..................15 10. Technical data ...................16 Warranty ......................17 - 18 © clearaudio electronic GmbH, 2022-01 Page 4... -
Page 5: List Of Components
Please keep this packaging in case of any further transport. Important note: Please check the contents as shown in the picture below. Please take special care of the tonearm cable while unpacking your Clearaudio TT1 MI tonearm! Note: All threads are metrical! Pic. -
Page 6: Delivery Condition
User manual 2. Delivery condition The TT1 MI is packed in a special foam packaging and comes almost completely assembled. Pic. 2: Delivery condition tonearm body Please note: For the transport, the tonearm carriage is protected with an transport lock to avoid any damages. -
Page 7: Tt1 Mi
User manual TT1 MI 3. Front and rear view of the tonearm Front view Precision VTA adjustment Precision level Bulletproof wood gauge Precision VTA adjustment Cueing lever Tonearm tower (left) Tonearm tower Magnet to lock in (right) operating position Magnet to lock in... -
Page 8: Preparation Of The Innovation / Master Innovation Turntable
Please note, you may need to remove the previous discs/cylinders or tonearm bases first. Please use only the spacer discs provided, as they are specifically height-matched for the TT1 MI tonearm. Master Innovation Pic. 5: Placing the aluminium spacer discs onto the turntable © clearaudio electronic GmbH, 2022-01 Page 8... -
Page 9: Tt1 Mi
User manual TT1 MI 5. Mounting the tonearm To avoid any damage on the tonearm or turntable, we recommend that two people do the assembly. Place the tonearm chassis on top of the two spacer discs. Lift it carefully, making sure that the sliding tonearm bridge is positioned to the rear of both sliding bases as shown in picture 6. -
Page 10: Mounting The Armwand
Ground the tonearm using the screw as seen in picture 9. We recommend tightening the screws of the aluminum block only slightly, as the armwand needs to be movable for the subsequent adjustments. Pic. 9: Mounting of the armwand © clearaudio electronic GmbH, 2022-01 Page 10... -
Page 11: Mounting The Cartridge
If your cartridge is lighter, please use an additional weight (headshell plate). Available through your dealer/distributor or at Clearaudio: info@clearaudio.de Now you can connect the respective signal cable with the matching color pins of the cartridge. Please note the following colour coding: Pic. -
Page 12: Pre-Setting The Tracking Force
The correct setting will be made at the end of the tonearm settings. Use the #1.5 hex wrench to tighten the counterweight fixing screws. To check the tracking force, we recommend the Clearaudio “Weight Watcher touch” digital cartridge weight (Art. No. AC163, also available at www.analogshop.de). -
Page 13: Fine Adjustment Of The Tonearm
9. Fine adjustment of the tonearm 9.1 Adjustment of the tangential alignment Use the lift to lower the stylus at the left hand end of the Clearaudio linear gauge, moving the gauge so that the diamond sits exactly on the reference line (see Pic. 13a). -
Page 14: Adjustment Of The Vta
The included Clearaudio linear gauge is suitable for adjusting the tonearm height, as it corresponds to the thickness of a record. Place the Clearaudio linear gauge through the existing hole on the spindle of the turntable and align it parallel to the tonearm. -
Page 15: Adjustment Of The Azimuth
For the correct setting we recommend the digital cartridge weight „Weight Watcher touch“ from Clearaudio (item: AC163; also available from: www.analogshop.de). Pic. 17: Placing the Mini Level Gauge For perfect sound, we recommend checking the tracking force, azimuth and VTA settings again and correcting them if necessary. -
Page 16: Technical Data
Approx. 21.26 x 8,27 x 7.68inches" Manufacturer’s warranty*: 5 years * Provided that the warranty card is correctly completed and returned to Clearaudio, or your product is registered online at https://clearaudio.de/en/service/registration.php, within 14 days of purchase. © clearaudio electronic GmbH, 2022-01... -
Page 17: Warranty
Le reçu ou la facture constituent des preuves suffisantes. DEUTSCH GARANTIE Bei Garantiefragen wenden Sie sich bitte zunächst an Ihren Clearaudio Händler. Heben Sie Ihren Kaufbeleg gut auf. WICHTIG! Die Angaben auf Ihrer Quittung erlauben uns die Identifizierung Ihres Gerätes und belegen mit dem Kaufdatum die Dauer Ihrer Garantie-Ansprüche. - Page 18 ESPAÑOL GARANTIA Para obtener información acerca de la garantia póngase en contacto con su distribuidor Clearaudio. GUARDE SU RECIBO DE COMPRA Su recibo de compra es su prueba permanente de haber adquirido un aparato de valor, Este recibo deberá guardarlo en un lugar seguro y utilizarlo como referencia cuando tenga que hacer uso del seguro o se ponga en contacto con Clearaudio.
- Page 19 User manual Made in Germany Page 19...
- Page 20 Handmade in Germany Clearaudio Electronic accepts no liability for any misprints. Technical specifications are subject to change or improvement without prior notice. Product availability is as long as stock lasts. Copies and reprints of this document, including extracts, require written consent from Clearaudio Electronic GmbH, Germany.
