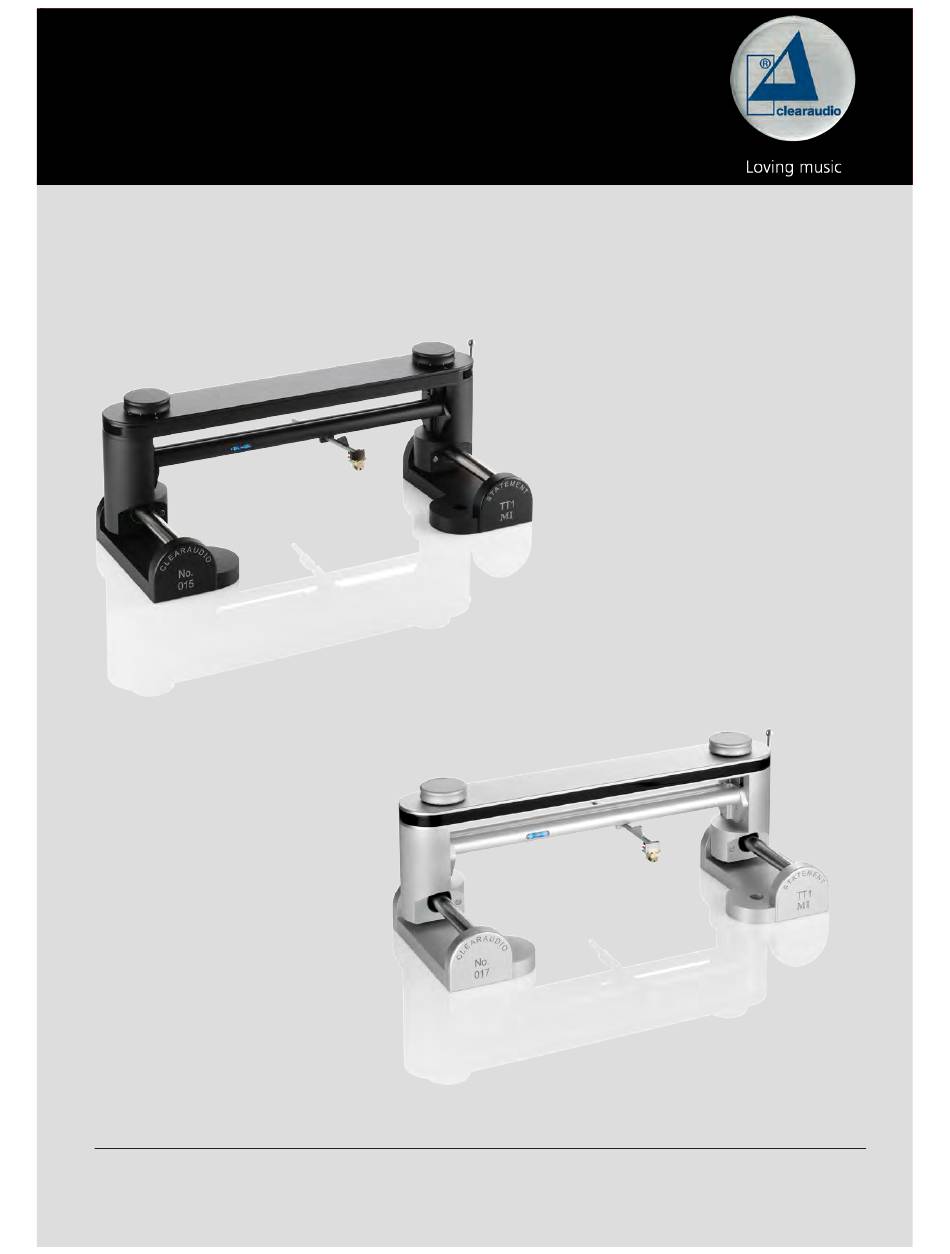

- Page 1 TT1 MI User manual © clearaudio electronic GmbH, 2018/ 05 Made in Germany...
- Page 2 Statement TT1 We wish you much pleasure with your new Clearaudio tangential tonearm. Clearaudio electronic GmbH Warnings Do not expose the equipment to rain or moisture.
-
Page 3: Table Of Contents
User manual Contents . List of components ................4 2. Package overview ................5 TT1 MI 3. Front- and rear view of assembled tonearm ..... 6 4. Assembly and operation ..............7 TT1 MI Master I nnovation 5. Mounting the on the turntable .... -
Page 4: List Of Components
Cartridge alignment gauge Armwand Cartridge mounting screws Bag of hex wrench: 1.5/ 8mm Main counterweights 2x large hex socket headed bolts 2x spacer discs White gloves User manual, warranty card and return delivery note (not shown) © clearaudio electronic GmbH, 2018/ 05... -
Page 5: Package Overview
User manual 2. Package overview The TT1 MI is packed in a special foam packaging and comes almost completely assembled. Pic. 2: Package overview Please note: The armwand is packed separately and need to be installed. Pic. 3: Armwand Additional parts, accessories and tools are also packed separately. -
Page 6: Tt1 Mi
Precission tube holder for glass tube Rear view Tonearm cable ground screw Tonearm cable holder Cueing lever Cueing lift mechanism Tonearm cable holder Precision glass tube for bearing carriage Mounting bolt Pic. 4: Front and rear view © clearaudio electronic GmbH, 2018/ 05... -
Page 7: Assembly And Operation
User manual 4. Assembly and operation After checking that the package contents are as described, place the parts on a clean and flat TT1 MI surface in preparation for set-up. Assembly and set-up of the are quite straightforward, as most parts have been factory preassembled. -
Page 8: Tt1 Mi
No. 4) and tighten them (see picture 6). Please note: Always hold the tonearm in place while tightening the mounting bolts. Pic. 5: Placing the tonearm chassis on the spacer discs 8 mm hex wrench Pic. 6: Tightening the mounting bolts © clearaudio electronic GmbH, 2018/ 05... - Page 9 User manual Please note: You may need to readjust the levelling of the Master Innovation turntable once you TT1 MI have fully completed set-up of the tonearm. Please take great care in undertaking the follow ing steps. Remove the rubber band which is used as transportation lock. Afterwards loosen the screws from the aluminum block and remove the second transportation lock.
-
Page 10: Cartridge Pre-Adjustment / Adjustment
Mount the armwand to the bearing carriage with the aluminum block and the two screws again. Pic. 9: Mounted armwand 6. Cartridge pre-adjustment / adjustment First mount the cartridge into the headshell using the two headshell screws provided (Page 4 No. 7). Pic. 10: Mounting of the cartridge © clearaudio electronic GmbH, 2018/ 05... - Page 11 Slide the appropriate exchangeable counterweight, dependent on the used cartridge, over the back of the armwand tube and adjust the correct tracking force. Please hold the armwand carefully so you don’t apply too much force to the bearings. For the best results we recommend using Clearaudio’s Weight Watcher stylus pressure gauge (Art.
- Page 12 Attention: Before first use or after a long period of storage, please move the cueing lift up and down approximately 4-5 times so that the oil inside can flow allowing the cueing lift to operate smoothly. © clearaudio electronic GmbH, 2018/ 05...
-
Page 13: Technical Data
Warranty: 5 years* * Provided that the warranty card is correctly completed and returned to Clearaudio within 14 days of purchase. Clearaudio electronic is not responsible for typographical errors in descriptions. Technical specifications subject to change or improvement without prior notice. -
Page 14: Special Notes
Otherwise serious damage could occur. 8.3 Service If any servicing or repair of a Clearaudio product is necessary, please first contact your dealer or distributor. Alternatively contact Clearaudio directly and we will advise you of your nearest service location. -
Page 15: Warranty
User manual To achieve the full Clearaudio warranty, it is necessary that you fill out and send the corresponding part of the warranty registration certificate /card back to Clearaudio, within two weeks after purchase. Only if the product is returned in it’s original packing Clearaudio can provide the warranty of 5 years for TT1 MI tonearm .
