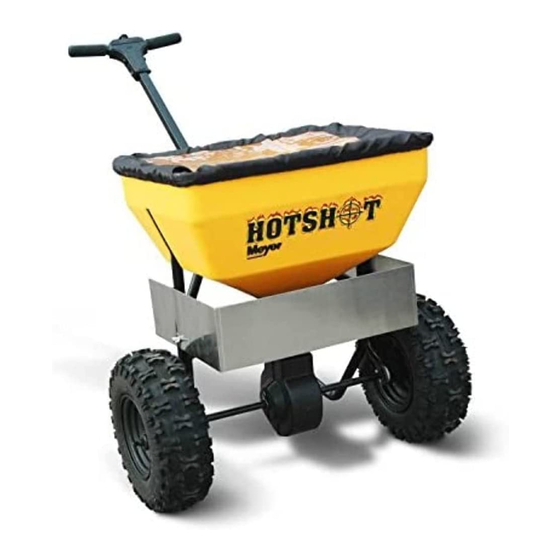

HOTSHOT
COMMERCIAL BROADCAST SPREADER
MODEL 38100
Meyer Spreaders are protected by one or
more of the following patents: 6698997,
CA 2,415,540 C, 7588195, 8448882,
8505837, 8523086, 8657208, 6186731,
6,793,154 B2, 6722590, 6715703,
6978952, 6932287, 8505838, 8827002,
5842649, CA 2,435,106 C, 6364598.
OWNER'S MANUAL
Advertisement
Table of Contents
Related Manuals for Meyer 38100
Summary of Contents for Meyer 38100
- Page 1 HOTSHOT COMMERCIAL BROADCAST SPREADER MODEL 38100 Meyer Spreaders are protected by one or more of the following patents: 6698997, CA 2,415,540 C, 7588195, 8448882, 8505837, 8523086, 8657208, 6186731, 6,793,154 B2, 6722590, 6715703, 6978952, 6932287, 8505838, 8827002, 5842649, CA 2,435,106 C, 6364598.
- Page 2 ASSEMBLY 1/4-20 x 2 1/4” RH. Handle Hex Bolt Brace Remove components from carton and place spreader upside down on a padded surface. Install LH. & RH. handle braces to frame as shown using four (4) 1/4-20 x 2 1/4” hex bolts and nuts but do not tighten.
- Page 3 Control Knob & Remove Caution Wire Assembly Label Feed control knob/wire through the Spring T-handle until spring touches the round Thumb hole. CAUTION: Do Not Compress Release Spring At This Time. Feed wire through the square handle tube. Be sure wire passes above the bolts in the handle 1/4-20 x 2 1/4”...
- Page 4 OPERATION NOTE: This spreader is equipped with a factory installed deflector shield that is used for applying ice melt to narrow areas. Shield is easily removed when ice melt is apply to large areas or when using turf care products Check the product package for the rate setting, and recommended swath width.
- Page 5 HOW TO DETERMINE SPREADER SETTINGS AND SPREAD WIDTH Two major factors should be considered when determining correct spreader settings of any product: 1. The product application rate, or the amount of material applied per 1,000 square feet. 2. The effective pattern width, or the actual width in which material is applied. Label settings are a guide and can be affected by numerous factors.
- Page 6 Scotts R8A/SR-1, — — — AP&SR2000 Setting The following provides approximate Meyer HOTSHOT settings when only the product weight, square foot coverage, and visual inspection of the material is available. FERTILIZER BAG RATE APPROX. APPROX. Pounds of fertilizer used PARTICLE SIZE...
- Page 7 Meyer Products will repair any product that proves to be defective in materials or workmanship. In the event repair is not possible or practical (as deter- mined by Meyer Products in its sole discretion), Meyer Products will either replace the product with a new product of similar model and price, or refund the full purchase price, as determined by Meyer Products.
- Page 8 Parts List for Model 38100 PART OF OUR SERVICE IS PROVIDING REPLACEMENT PARTS. Parts may be obtained through your local distributor. be sure to give: Meyer Products, Inc. IF YOUR LOCAL DISTRIBUTOR CANNOT SUPPLY PARTS, 1. SPREADER MODEL NUMBER 18513 Euclid Ave 2.
