Meyer MINI SPREADER 36000 Parts & Installation Instructions

Item Part No. Qty.
36000 1 MINI SPREADER COMPLETE
1 36126 1 • Tailgate Tie Angle
2 36125 1 • Spreader Frame Tie Angle
36130 1 • Spreader Assembly
3 36425 1 •• Hopper - Black
3 36213 1 •• Hopper - Yellow
4 36426 1 •• Hopper Cover - Black
4 36225 1 •• Hopper Cover - Yellow
5 36256 1 •• Frame Weldment
6 36428 1 •• Spinner Band Poly
7 20049 1 •• Bolt H 3/8-16 x 1" Gr. 2
8 20314 1 •• Locknut 3/8
9 20353 1 •• Flatwasher 3/8
1 0 20005 4 •• Bolt H 1/4-20 x 1" Gr. 2
1 1 20351 4 •• Flatwasher 1/4
1 2 20312 7 •• Locknut 1/4
08729 1 Motor Kit - Service
1 3 36402 1 ••• Motor 12V D.C.
36401 1 ••• Template
08730 1 ••• Hardware Bag
1 4 20029 4 •••• Bolt H 5/16-18 x 1-1/2" Gr.2
1 5 20352 4 •••• Washer 5/16
1 6 20313 4 •••• Locknut 5/16-18
36165 1 Spinner - Auger Assembly
1 7 36151 1 ••• Auger Weldment
1 8 36152 1 ••• Spinner Hub Weldment
1 9 21834 1 ••• Set Screw 3/8-24 x 3/8 Cup Pt.
08757 1 Spinner Kit (Poly)
2 0 36414 1 ••• Spinner Plate (Poly)
2 1 20005 3 ••• Bolt H 1/4-20 x 1" Gr. 2
2 2 20303 3 ••• Locknut 1/4 Esna
25
27
26
FIGURE 1
Meyer Products reserves the right, under its continuing product improvement program, to change construction or design details, specifications
and prices without notice or without incurring any obligation.
© 2002 Printed in the U.S.A.
PARTS & INSTALLATION INSTRUCTIONS
MEYER MINI SPREADER
Description

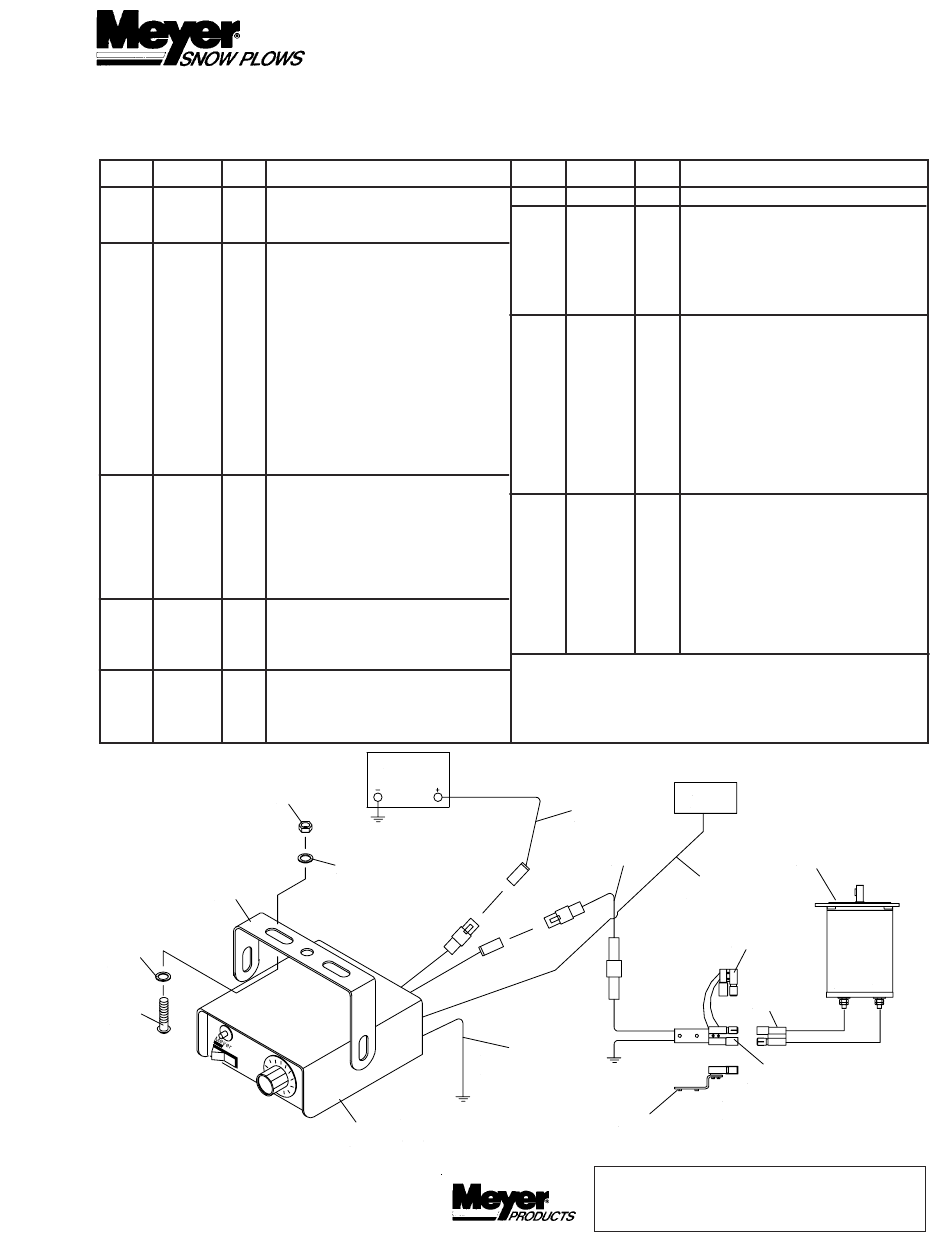

Battery
28
27
Controller must
24
be GROUNDED
PARTS LIST
Item Part No. Qty. Description
2 3 07243
36244
2 4
2 5
2 6
2 7
2 8
36258
36401
2 8 14841
3 0 36127
3 1 36240
3 2 36248
3 3 36241
3 4 36242
3 5 36229
3 6 36247
36246
3 7 20005
3 8 20049
3 9 20203
4 0 20312
4 1 20314
4 2 20353
4 3 20835
4 4 20843
*
Items No. 3 through 20 are pre-assembled and shown in
the exploded view for parts identification only.
36
34
BLACK
GROUND WIRE
31
18513 Euclid Ave. • Cleveland, Ohio 44112-1084
Form No.1-608R9
1 • Stop Light
1 • Speed Control Assembly
1 •• Speed Control
1 •• Mounting Bracket
2 •• Machine Screw, Rd Hd 8-32 x 1"
4 •• Flatwasher #8
2 •• Hex Nut 8-32
1 • Carton - Miscellaneous Parts
1 •• Template
2 •• Mounting Angle
2 •• Brace
1 •• Socket Assy. w/Mtg. Plate
1 ••• Dummy Plug
1 •• Plug Assembly
1 •• Wire, Red, 222"
1 •• Wire, Blue 36"
1 •• Wire, Red, 96"
1 •• HARDWARE BAG
4 ••• Bolt H 1/4-20 x 1"
4 ••• Bolt H 3/8-16 x 1"
5 ••• Bolt C 3/8-16x 1-1/4"
4 ••• Locknut 1/4"
9 ••• Locknut 3/8"
7 ••• Flatwasher 3/8"
2 ••• Screw-Rd. Hd.8-32 x 1"
2 ••• Locknut 8-32
Fuse
Panel
13
35
32
33
31
SIDE VIEW OF
SOCKET (31)
Meyer Products
Phone 486-1313 (Area Code 216)
email•warranty@meyerproducts.com
April, 2002
+ -
