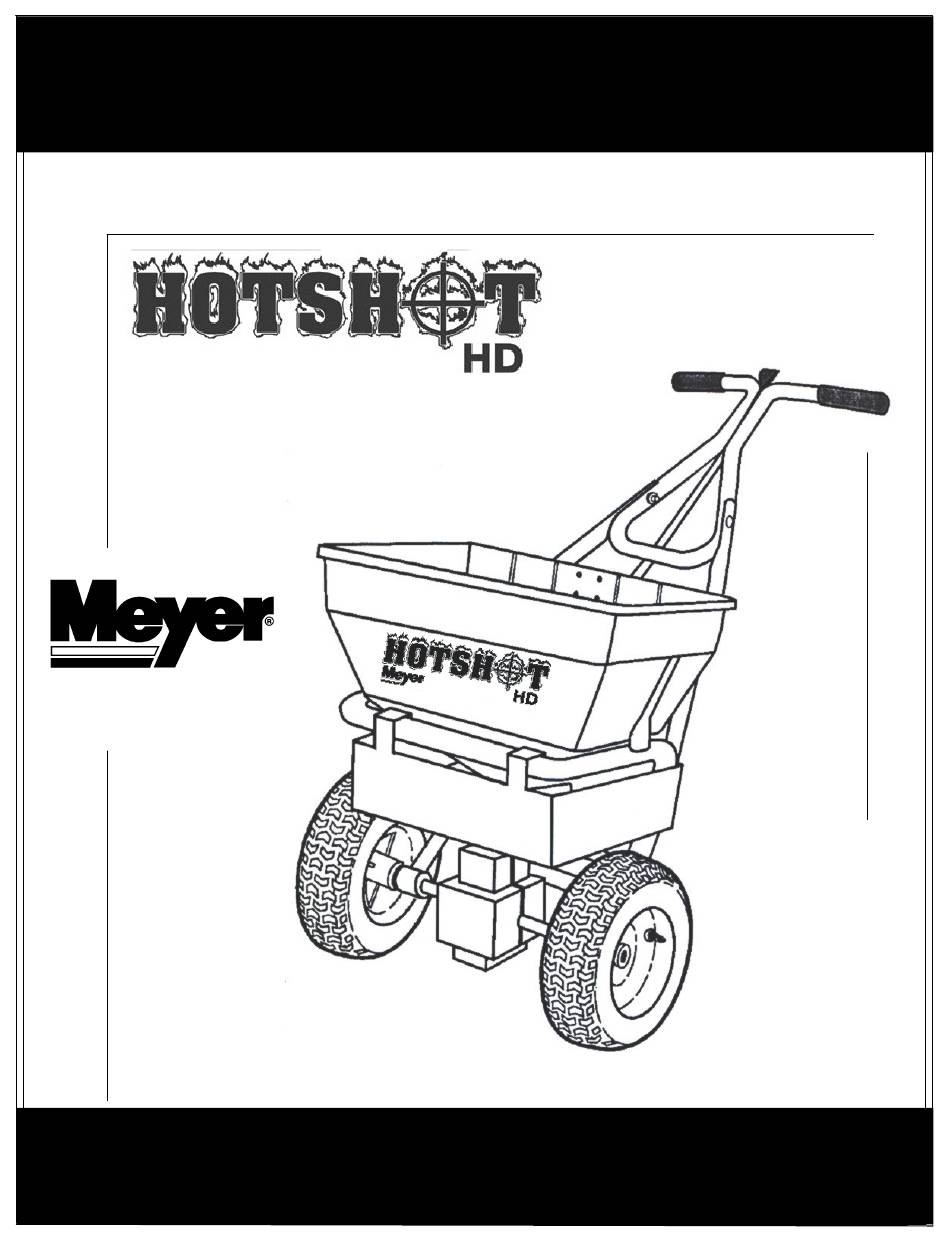

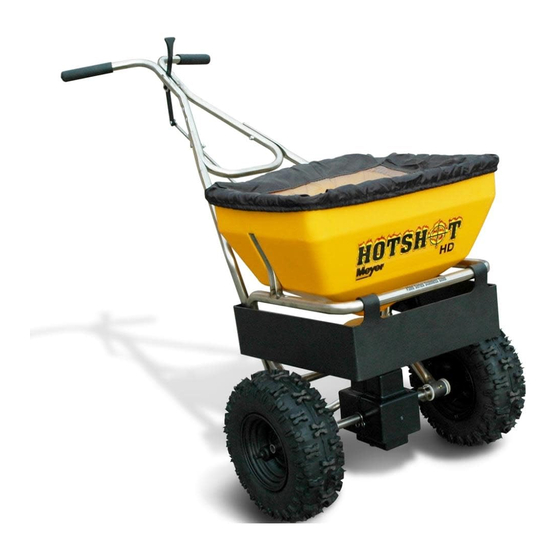

- Page 1 HOTSHOT HD HOTSHOT HD HOTSHOT HD HOTSHOT HD COMMERCIAL BROADCAST SPREADER MODEL 38180 38180 38180 38180 OWNER’S MANUAL...
- Page 2 ASSEMBLY INSTRUCTIONS 3/16 Dia. x 2” Cotter Pin Remove the spreader and 1/8 Dia. x components from carton and 1 1/4” Cotter place hopper up-side down on a padded surface as shown. Slide drive and free wheel onto axle as shown with the longer portion of wheel hub facing the frame.
-
Page 3: Operation
Hold the ends of the deflector open slightly to clear the spreader frame in the back. Hang the deflector onto the spreader bumper bar. Align the slots in the back of deflector with the top frame bolts and secure both sides of the deflector with Spreader Bumper washers and wing nuts. - Page 4 PATTERN ADJUSTMENT Normal spreading of materials Discharge Chute Settings requires no adjustment (factory Discharge setting “A”) unless stated on the Chute package. In those cases where the spread pattern has shifted, the pattern can be adjusted left and Knob right by loosening the two knobs on the discharge chute and moving the chute closer or farther away from Impeller...
-
Page 5: Application Rate
Repeat test until application rate is correct. RATE SETTING CONVERSION The following provides approximate Meyer HOTSHOT HD Meyer HOTSHOT HD Meyer HOTSHOT HD settings for those units listed. Meyer HOTSHOT HD Meyer Meyer Meyer Meyer... -
Page 6: Maintenance
The following provides approximate Meyer HOTSHOT HD Meyer HOTSHOT HD Meyer HOTSHOT HD settings when only the product weight, square foot Meyer HOTSHOT HD coverage, and visual inspection of the material is available. FERTILIZER BAG RATE APPROX. SPREAD Pounds of fertilizer used... -
Page 7: Calibration Instructions
Meyer®/Diamond® products. Meyer Products will repair any product that proves to be defective in materials or workmanship. In the event repair is not possible or practical (as determined by Meyer Products in its sole discretion), Meyer Products will either replace the product with a new product of similar model and price, or refund the full purchase price, as determined by Meyer Products. - Page 8 PSB15972 Impeller Shaft Bearing* PSB14312-1 Meyer Spreaders are protected by one or more of the following patents: 6698997, CA 2,415,540 C, 7588195, 8448882, 8505837, 8523086, 8657208, 6186731, 6,793,154 B2, 6722590, 6715703, 6978952, *Parts included in hopper assembly 6932287, 8505838, 8827002, 5842649, CA 2,435,106 C, 6364598.
