PARTS & INSTALLATION INSTRUCTIONS

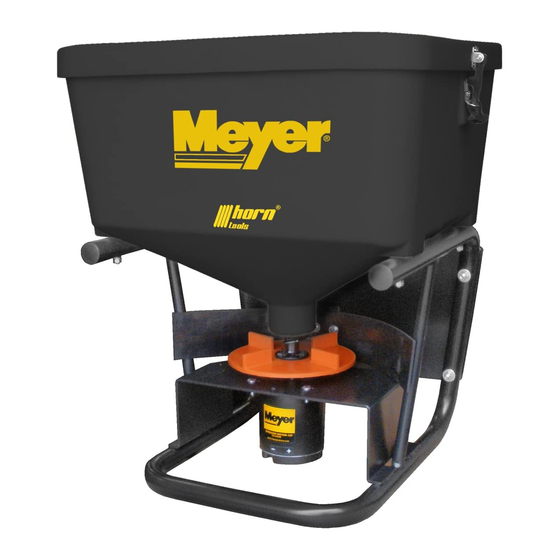

MEYER BL 240 (31100) & BL 400 (36100) SPREADER
Item
Part No.
Qty.
1
31101
1
• 240 Hopper
1
36101
1
• 400 Hopper
2
31102
1
• Hopper Cover
3
34413
1
• 240/400 Spreader Frame
4
34415
1
• Deflector Bracket
5
34401
1
• Deflector
6
34416
2
• Tube Plug
7
36402
1
• Motor 12V D.C.
8
36151
1
• Auger Weldment
9
36152
1
• Spinner Hub Weldment
10
36158
2
• Spinner Mounting Plate
11
36414
1
• Spinner (Poly)
12
34414
1
• 240/400 Hitch Assembly
13
34417
1
• 2 Speed Controller
14
20006
3
• Bolt H 1/4 - 20 x 1-1/4" Gr. 2
15
20010
4
• Bolt H 1/4 - 20 x 2-1/4" Gr. 2
16
20027
4
• Bolt H 5/16 - 18 x 1" Gr. 2
17
20028
4
• Bolt H 5/16 - 18 x 1-1/4" Gr. 2
18
20303
7
• Locknut 1/4 Esna
19
20313
8
• Locknut 5/16 Esna
20
20351
8
• Flatwasher 1/4
21
20352
16
• Flatwasher 5/16
13
Figure 1
Meyer Products reserves the right, under its continuing product improvement program, to change construction or design details, specifications
and prices without notice or without incurring any obligation.
Meyer Products LLC
18513 Euclid Ave. • Cleveland, Ohio 44112-1084
Phone 486-1313 (Area Code 216)
www.meyerproducts.com• email info@meyerproducts.com
© 2010 Printed in the U.S.A.

PARTS LIST

Description
Battery
BLACK
GROUND WIRE
Controller must
GROUNDED
Item
Part No.
Qty.
Description
08259
1
• 240/400 Hitch Hardware Bag
2 2
11101
1
•• Hinge Pin
2 3
20069
4
•• Bolt H 3/8-16 x 3"
2 4
20314
4
•• Locknut 3/8
2 5
20353
8
•• Flatwasher 3/8
2 6
22083
1
•• Linch pin
31103
1
• 240/400 Wiring Kit
2 7
36240
1
•• Socket Assy. w/Mtg. Plate
2 8
36241
1
•• Plug Assembly
2 9
36242
1
•• Wire, Red 222"
3 0
36247
1
•• Wire, Red 96"
3 1
36248
1
•• Dummy Plug
• Parts indented are included in carton, bag or assembly
under which they are indented.
30
29
31
28
SIDE VIEW OF
SOCKET (27)
27
6 Angell Lane • Damariscotta, ME 04543-4507
Phone 563-2227(Area Code 207)
www.meyerproducts.com• email info@meyerproducts.com
Form No.1-999
May 2010
7
+ -
27
Meyer Products LLC
