VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200
Features:
lamp/ballast operation control
- lamp operation parameter adjustable
- inrush current limitation
- lamp cable length up to 30m
UV-C and temperature monitoring
- digital UV / temperature sensors
- UV photodiode sensor
- KTY temperature sensor
manufacturer
name of product
article code
suitable lamps
Read and understand all instructions in this manual before installing and operating the unit.
Contents
1 Technical specification........................................................................................................................................................2
2 EG-Konformitätserklärung/EC Declaration of Conformity.................................................................................................. 6
3 Important safety notes........................................................................................................................................................ 7
4 Wiring................................................................................................................................................................................. 8
5 Status indication............................................................................................................................................................... 10
6 Initial Operation................................................................................................................................................................ 11
7 Further system settings.................................................................................................................................................... 13
8 Main menu overview........................................................................................................................................................ 14
9 'Settings' - submenu overview.......................................................................................................................................... 15
02/2017

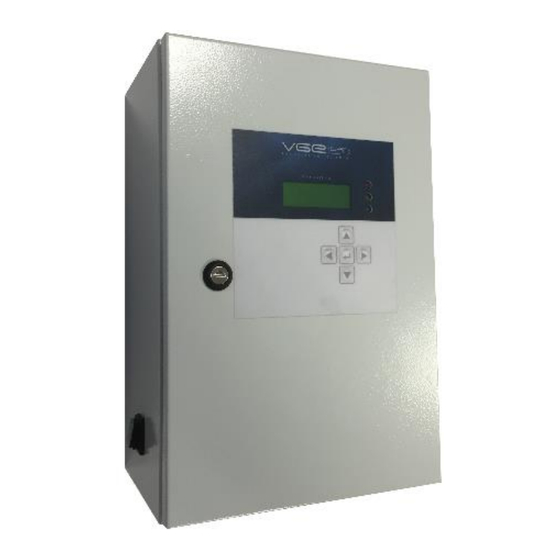

The VGE Pro UV Control Monitor+ 420/600 and VGE Pro UV Control
Monitor+ 140/200 is a UV Cabinet, a system of modular electronic units for
operating 1, 2 or 3 UV-C lamps with total power 600W.
VGE Pro UV Control Monitor+ combines ballast(s) with control- and
monitoring features. Numerous sensor interfaces and configurable
signal outputs are available.
VGE International B.V.
Ekkersrijt 4304, 5692DH Son
VGE Pro UV Control Monitor+ 420/600 and VGE Pro UV Control Monitor+ 140/200
EP600001, EP200002
Lamp VGE Pro T6 140W 867 SPT, Lamp VGE Pro T6 200W 1115 SPT
www.vgebv.nl
remote start and status monitoring
-
remote start input
-
Interlock
-
mains switch
-
3 relay contacts
-
4-20mA signal input/output
EP600001, EP200002
1/18
Advertisement
Table of Contents
Related Manuals for VGE Pro UV Control Monitor+ 420
Summary of Contents for VGE Pro UV Control Monitor+ 420
-
Page 1: Table Of Contents
VGE International B.V. Ekkersrijt 4304, 5692DH Son name of product VGE Pro UV Control Monitor+ 420/600 and VGE Pro UV Control Monitor+ 140/200 article code EP600001, EP200002 suitable lamps Lamp VGE Pro T6 140W 867 SPT, Lamp VGE Pro T6 200W 1115 SPT Read and understand all instructions in this manual before installing and operating the unit. -
Page 2: Technical Specification
Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 Technical specification standby power THD current power factor typical: 0.98 (min: 0.95) power loss (lamps at 3 x 250 W) typical: 5% (max. 8%) ballast efficiency, all lamps on typical: 95 % (min. - Page 3 Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 status indication (see 'Status indication' on page 10 for details) operating status indicated - via LCD front end: – by 4 line alphanumeric LCD: 4*20 digits –...
- Page 4 Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 4...20mA output signal corresponding to UV value • current output active signal output, galvanically isolated • output voltage: max. 15V DC 1. signal •...
- Page 5 Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 Lamp/ballast safety mechanisms fault condition detection action leaking/broken lamp during ignition turn off affected lamp channel during lamp operation lamp voltage rise during ignition...
-
Page 6: Eg-Konformitätserklärung/Ec Declaration Of Conformity
Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 EG-Konformitätserklärung/EC Declaration of Conformity Nummer / EP600001, EP20002 number VGE International B.V. Hersteller Ekkersrijt 4304, 5692DH Son manufacturer Produktbezeichnung VGE Pro UV Control Monitor+ 400/420/600 and... -
Page 7: Important Safety Notes
Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 Important safety notes Make sure, that all of the following safety rules are fulfilled. The device must only be installed by qualified personnel to make sure all applicable safety rules are fulfilled. -
Page 8: Wiring
Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 Wiring • Make sure that the mains voltage is within the tolerances given in the data sheet. • Make sure that imbalances in 3 phase mains supply will not lead to mains voltage outside the specified range. - Page 9 Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 • The unit may only be wired according to the wiring diagram shown here. • Do not add any components such as switches, capacitors or ignition devices to the wires between ballast and lamp because this may damage the ballast.
-
Page 10: Status Indication
Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 • Multi-core cables may not be used. Use one cable per lamp. • Check for the correct lamp current (esp. during preheating). If needed adjust current settings (ask supplier for details). -
Page 11: Initial Operation
Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 Initial Operation 1 'up' info screen, raise values, scroll up 2 'left' set unit to remote/local operation, move cursor to left 3 'enter'... - Page 12 Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 Observing operation status information The system provides a number of operation status information. The system operation state is displayed on the ‘main screen’. Further details and measurement values are display on a number of ‘info screens’.
-
Page 13: Further System Settings
Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 Further system settings All basic functionality like changing clock, date or display contrast is not described exactly, please refer to “main menu overview” below. -
Page 14: Main Menu Overview
(Log in for service access before.) update updating the firmware for base board and frontend via SD-card (Please contact VGE for further details) date - set date time - set time display contrast - change display contrast language –... -
Page 15: 'Settings' - Submenu Overview
Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 'Settings' - submenu overview ‘main menu’ à ’settings’ contains all system specific settings and adjustments. (Log in for service access before.) ‘main menu’ à ’settings’ à’ballast’... - Page 16 Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 set the reduced number of lamps you want to connect to the system. (3 lamps: channel A/B/C, 2 lamps: channel A/B, 1 lamp: channel A) The lamp fault shown on the base board will not be shown in the front end display.
- Page 17 Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 ’main menu’ à ’settings’ à’UV sensor’ contains all UV sensor specific settings parameter If no sensor is activated only the menu item ‘number of sensors’ will appear in ‘UV sensor’ sub menu.
- Page 18 Manual for: VGE Pro UV Control Monitor+ 400/420/600 and VGE Pro UV Control Monitor+ 140/200 EP600001, EP200002 alarm delay (default 2 sec.) set appropriate delay stop if alarm (default N – No) shut down lamps in case of UV alarm ‘main menu’...
