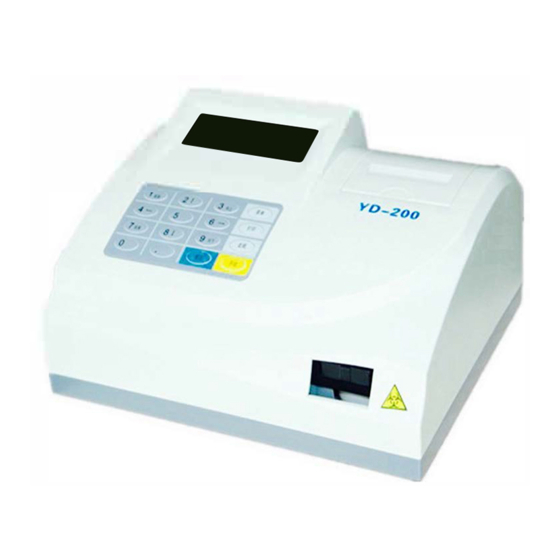

YD-200
Urine Analyzer
User Manual
Jilin Yida Medical Equipments Co.,Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YD-200 and is the answer not in the manual?

Questions and answers

Related Manuals for MR YD-200

Summary of Contents for MR YD-200

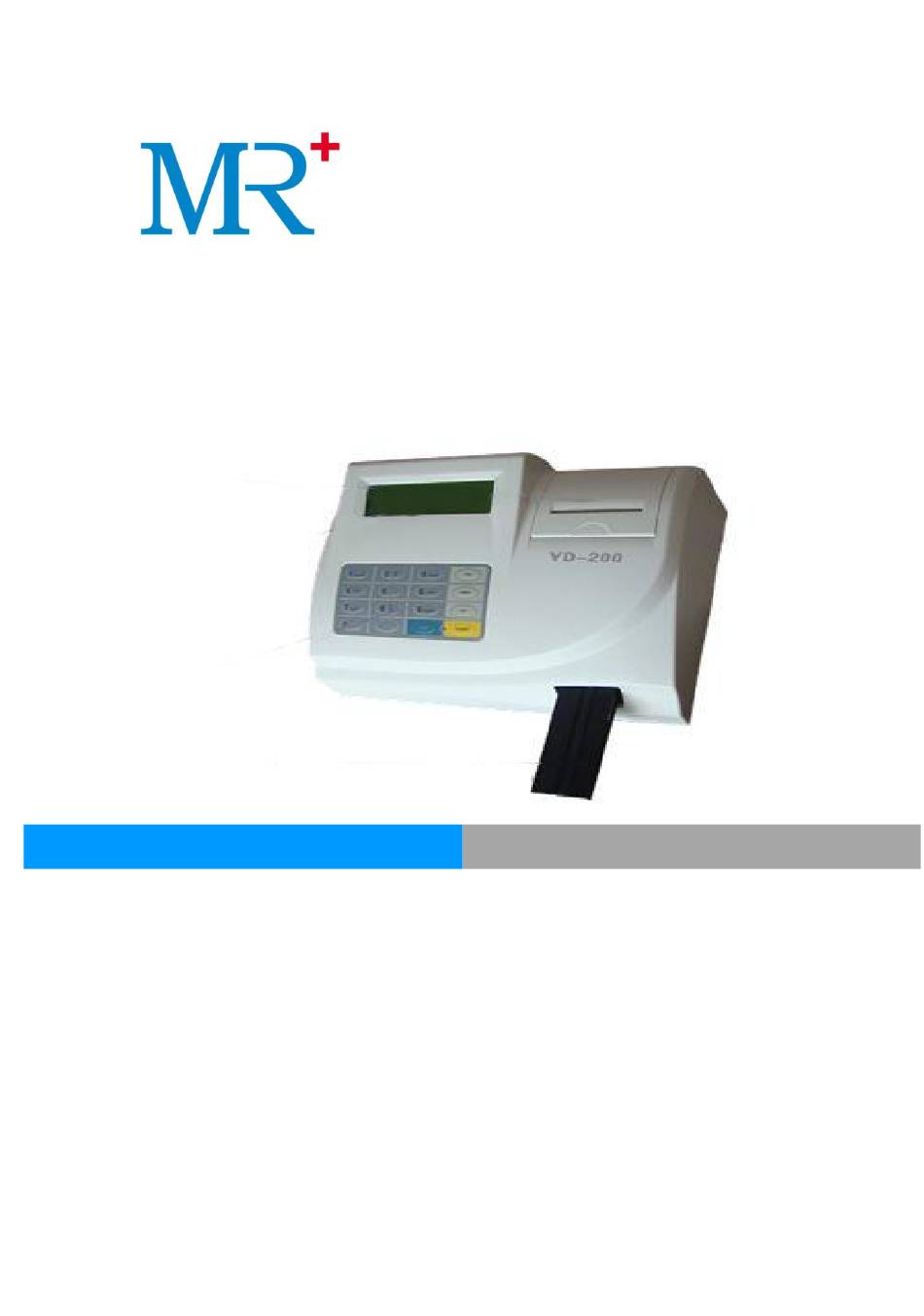

  • Page 1 YD-200 Urine Analyzer User Manual Jilin Yida Medical Equipments Co.,Ltd...

  • Page 2: Table Of Contents

    Chapter 3. Installation and functions…………………………………6 Chapter 4. Set up……………………………………………………..10 Chapter 5. Testing options…………………………………………...19 Chapter 6. Worktable………………………………………………. . 20 Chapter 7. Test method……………………………………………….21 Chapter 8 .Record query……………………………………………...26 Chapter 9. Maintenance………………………………………………27 Chapter 10. Malfunction solution…………………………………… 28 Appendix A. Output value of YD-200 Urine Analyzer……………...29...
  • Page 3 YD-200 urine analyzer is a kind of adopt latest optoelectronic technology and microprocessor technology for Clinical urine test; it is user-friendly, and accurate. URS-11A urine strip is dedicated for YD-200. YD-200 can provide 11 items results of quantitative or semi-quantitative for Urobilinogen, Bilirubin, Ketone, Blood, Protein, Micro-albumin ,Nitrite, Leucocytes, Glucose, Specific gravity, pH, Vitamin C.

  • Page 4: Chapter 2. Technical Specifications, Structure, Application Range

    YD-200 Urine Analyzer User Manual Chapter 2 Technical Specifications, Structure and Application Range 2.1 Technical Specifications Testing Principle：the method of high luminous cold light source reflectivity Monochromatic color: white Test items: Bilirubn Glucose Ketone Gravity Vitamin C Protein Urobilinogen Nitrite...

  • Page 5: Chapter 3 Installation And Functions

    YD-200 Urine Analyzer User Manual It must take the dedicated urine strips. Urine strips are validity of consumables. Please pay attention to the whether it is in the period of validity and color of zone is changed. If so, the urine strips cannot be used. Urine strips is not a part of instrument. User are...
  • Page 6 YD-200 Urine Analyzer User Manual Barometric 76-106Kpa 76-106Kpa Pressure Please put the instrument on a stable, ventilate, clean and flat table-board and Table-board with stable power supply, no strong electromagnetic interference. Note：put the instrument on a stable and flat table-board.
  • Page 7 YD-200 Urine Analyzer User Manual #0001 4-011-01 12:00:00 VERSION 1.001 Figure 3-3 3.5 Install printing paper 3.5.1 Press the printer cover (Figure 3.3), printer cover bounce automatically, then open the printer cover, put the new roll of paper into the paper box.

  • Page 8: Chapter 4 Set Up

    YD-200 Urine Analyzer User Manual Fast mode Fast mode, 120tests/hour Test Mode Slow mode Slow continuous mode, 60tests/hour Slow step mode Slow mode, 60tests/hour Set time Set clock Set date Set time, date, date format Date format URS-10A Strip Select...
  • Page 9 YD-200 Urine Analyzer User Manual Press the key “▲” and “▼” to move the cursor to the position of “Set Seq. No.”, Press the key “START” for confirmation, and enter sequence number setup Submenu. (Figure 4-3). Please Input Sequence No.
  • Page 10 YD-200 Urine Analyzer User Manual key “▲”and“▼”to select the corresponding record as Figure 4-4:. Press the key “Print” to print the showed record. 4.2.2 Sequence number Recall Select the “Sequence number recall” and press the key “start” to confirm, the screen will show as Figure 4-5: Please Input Sequence No.
  • Page 11 YD-200 Urine Analyzer User Manual 4.2.4 Clear Memory Select “Clear memory ” in Figure 4-4 , press “start” to confirm, the screen will display as Figure4-7: Clear memory? Figure4-7 Select “NO”, store the data, select “Yes”, Clear memory. 4.3 Calibration and QC liquid “Calibration”...
  • Page 12 YD-200 Urine Analyzer User Manual Set Clock: Set Time Set Date Date Format Figure 4-9 ·Set time Select “Set Time” in Figure 4-9, press the key “start” to confirm, the screen shows as Figure 4-10: Input Current Time: 24 Hour...
  • Page 13 URS-10 URS-11 Figure 4-13 YD-200 Urine Analyzer can select 10-items and 11-items urinalysis strips. Other strips could not be used. Note: Intended urine strips for YD-200 are YD URS-10A、URS-11A. To ensure the correct results, please do not use other urine strips.
  • Page 14 YD-200 Urine Analyzer User Manual 4.4.3 Set Status Select “Status” in Figure4-8, press the key “start” to confirm, the screen shows as Figure4-14: Plus Used Int Printer Ext Printer PC Port Figure4-14 In this menu, the operator can change the status of “Plus Used”, “Int Printer”, “Ext Printer”, “PC Port”.
  • Page 15 YD-200 Urine Analyzer User Manual GLU 2+ 14 mmol/L 14 mmol/L Figure 4-15 Figure 4-16 · Internal Print: When “Int. printer” is “ON”, the internal printer will print the result, otherwise it will not print. · External Print: When “Ext. printer” is “ON”, the external printer will print the result, otherwise it will not print.

  • Page 16: Chapter 5 Testing Options

    YD-200 Urine Analyzer User Manual 4.4.6 Baud rate select In Figure 4-8, select “Baud Rate Select” and press the key “start”, the screen will show as Figure 4-19: Baud Rate: 1200 9600 19200 115200 Figure 4-19 Baud Rate: It is used to set up the transmission speed of urine analyzer. In Figure 4-19, press the key “▲”...

  • Page 17: Chapter 6. Worktable

    URS-11 Figure 5-1 5.2 Test Mode YD-200 support three test mode, they are “Fast mode” slow continuous test mode, slow test mode. 5.2.1 Slow Continuous Test： There is non-overlap of testing time between neighbor samples, test runs one by one, each test could be conducted after press “START”.

  • Page 18: Chapter 7 Test Method

    This chapter introduces the method that the urine analyzer conducts the conventional urine analysis. Before the test, please carefully read the “Chapter 4 Functions and Setup of the YD-200 Urine Analyzer”. ● When the instrument did not pass the self-testing, the screen displays the error information code.
  • Page 19 YD-200 Urine Analyzer User Manual CALIBRATING …… Figure 7-1 After the calibrating, the screen displays as followed:（Figure 7-2）： ＃0001 15-01-01 12:00:00 1.001 YIDA MEDICAL Figure 7-2 7.1.3 Operation Method The test includes the fast test mode, the slow mode test and the slow continuous test mode.
  • Page 20 YD-200 Urine Analyzer User Manual on the table to conduct test. (4) When hearing the warning tone, repeat the operation in (3). If want to stop the test, please take the following measures: Press the key “Enter” before the strip table come out.
  • Page 21 YD-200 Urine Analyzer User Manual STRIP MISSING Figure 7-3 · During the test process, the keyboard is ineffective, press any key will get no response. · During the test process, do not hit the strip table. 7.2 Quality Control Monitoring 7.2.1 Calibration Strip Test...

  • Page 22: Chapter 8 Record Query

    YD-200 Urine Analyzer User Manual otherwise the result is “Calibration Not OK”. 7.2.2 Quality Control Liquid Test In order to make sure the correctness of the test result, the positive and negative quality control liquor should be often used to test the urine analyzer and the reagent strip.
  • Page 23 YD-200 Urine Analyzer User Manual accuracy of test . 1.2 The front of table which move out could not put anything, avoid to clash , due to test could not runs normally. 1.3 The instrument can be wiped by soft dry cloth, if the surface of the instrument is dirty, wipe it with the water.
  • Page 24 YD-200 Urine Analyzer User Manual No strip in the strip Screen shows (1) Place reagent strip. “No strip”. table. (2) Press “Start” to retest. (1) Strip placing (1) Take out some new strips and place Screen shows “Strip Incorrect. in the right position.

  • Page 25: Appendix A Output Value Of Yd-200 Urine Analyzer

    YD-200 Urine Analyzer User Manual Appendix A Output Value of YD-200 Urine Analyzer Item Plus system unit International unit ± 15 cells/μL Leucocytes 70 cells/μL （ ） 125 cells/μL 500 cells/μL Nitrite （ ） 3.3 μ mol/L normal 33 μ mol/L Urobilinogen 66 μ...
  • Page 26 YD-200 Urine Analyzer User Manual Item Plus system unit International unit ± 0.5 mmol/L Ketone 1.5 mmol/L （ ） 4.0 mmol/L 8.0 mmol/L 0 μ mol/L 17 μ mol/L Bilirubin （ ） 50 μ mol/L 100 μ mol/L 0 mmol/L ±...
  • Page 27 YD-200 Urine Analyzer User Manual Jilin YiDa Medical Equipment Address: No.1636 Jinchuan Road,Economic and Technological Development Zone, Changchun, Jilin, China Tel: +86-431-81317781 Fax: +86-431-81317079 E-mail: sales@mr-healthcare.com...
