Kolpin Outdoors 15-0070 Assembly & Owners Manual

Mid-mount kit

Advertisement

Quick Links

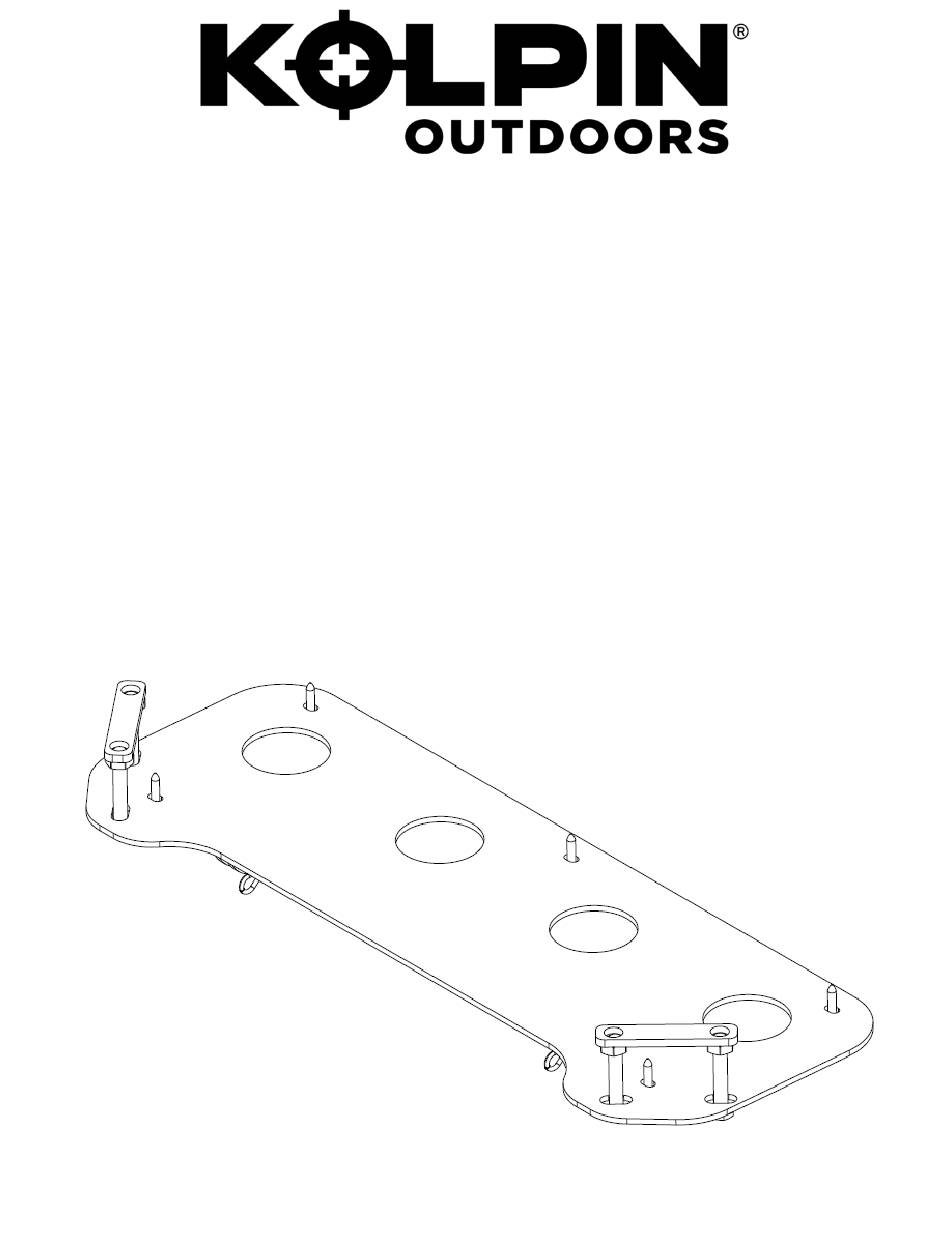

MID-MOUNT KIT
FOR POLARIS ACE
P/N 15-3685
ASSEMBLY / OWNERS MANUAL
Application
PLOW PUSH FRAME NO. 15-0070, 33-0000 or 33-0070
Before you begin, please read these instructions and check to be sure all parts and tools are ac-
counted for. The following instructions contain details required to install and service the contents of
this kit.
© 2018 Kolpin Outdoors Inc.
REV 00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15-0070 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kolpin Outdoors 15-0070

  • Page 1 ASSEMBLY / OWNERS MANUAL Application PLOW PUSH FRAME NO. 15-0070, 33-0000 or 33-0070 Before you begin, please read these instructions and check to be sure all parts and tools are ac- counted for. The following instructions contain details required to install and service the contents of this kit.
  • Page 2 IN UP POSITION. DO NOT ATTEMPT TO RAISE BLADE BY HAND; USE THE LIFT MECHANISM ONLY. LOWER BLADE TO DOWN POSITION WHEN BLADE AND ATV/UTV ARE NOT IN USE. READ BLADE'S INSTRUCTION SHEETS AND ATV/UTV OWNER MANUAL. © 2018 Kolpin Outdoors Inc. REV 00...
  • Page 3 Truss Screw, Zinc Plated, M6-1.0 x 25mm LG Nut Bracket, Mount Flat Washer, Zinc Plated, 10mm Hex Bolt, Zinc Plated, M10-1.5 x 60mm LG Hair Pin, Zinc Plated, #3 PUR1249 Instruction Guide (not shown) © 2018 Kolpin Outdoors Inc. REV 00...
  • Page 4 3 collars) from the ATV used to se- cure plastic skid plate. This hardware will not be used to install mid-mount to ATV. (See illustration 1-1). Remove OEM hardware from ATV Ill. 1-1 © 2018 Kolpin Outdoors Inc. REV 00...
  • Page 5 Note, the RH floor boards will not need to be loosened. Access from under the vehicle. Slightly flex the floor- board upwards to place item 4 into place Item #4 Front of ATV Ill. 1-3 © 2018 Kolpin Outdoors Inc. REV 00...
  • Page 6 Tighten all fasteners to torque specifications. 10. Re-install the fasteners into place to secure the LH floorboards. 6MM FASTENER TORQUE: 8 ft. lbs. (11 Nm) Items #6 and #5 Ill. 1-4 Front of Item #3 Skid plate © 2018 Kolpin Outdoors Inc. REV 00...
  • Page 7 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2018 Kolpin Outdoors Inc. REV 00...
