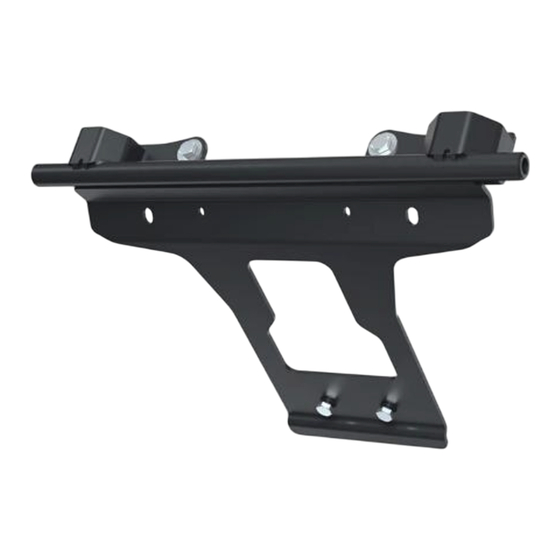

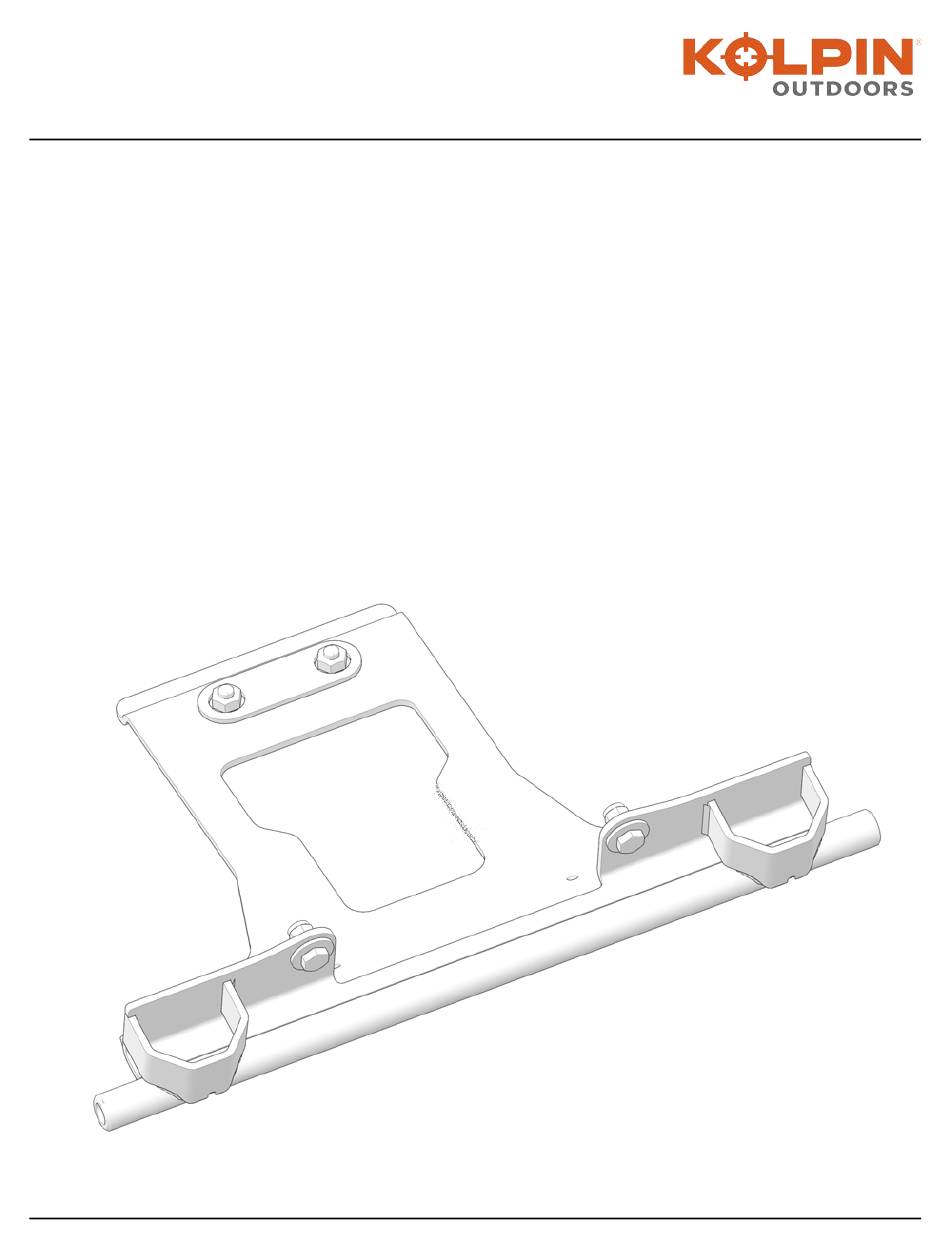

- Page 1 PLOW MOUNTING BRACKET KIT P/N 35-3020 PLOW MOUNT KIT Assembly / Owner’s Manual APPLICATION: General Verify accessory fitment at Kolpin.com Instr K100349 Rev 01 2021-06 Page 1 of 6...
- Page 2 INTRO Thank you for purchasing Kolpin ® engineered products. With proper installation, usage, care, and maintenance, your Kolpin ® product will last for years to come. BEFORE YOU BEGIN • Read and understand the entire installation manual, including all installation instructions, operating instructions, safety warnings and guidelines before installing or operating your accessory.
- Page 3 WARNING To avoid serious injury or death: • Do not exceed 5 mph (8 km/h) with blade installed. • Operate with extreme caution on slopes, steep grades, and rough terrain. • Allow no riders on blade or ATV / UTV while moving or stationary. •...
- Page 4 KIT CONTENTS PART DESCRIPTION PART NUMBER Plow Mount Bracket Plate Lock Washer Screw, M10 x 1.5 x 25 mm 7519308 Lock Nut, M10 x 1.5 mm 7547423 Washer, 10.5 x 20 mm 7556123 Washer, M10 x 30 mm 7556277 Instr K100349 Rev 01 2021-06 Page 4 of 6...
- Page 5 INSTALLATION INSTRUCTIONS VEHICLE PREPARATION 3. Put plate in position inside vehicle frame, aligning with existing holes and mounting holes in GENERAL plow mounting bracket 1. Park vehicle on a flat surface. 2. Shift vehicle into PARK. 3. Turn key to OFF position and remove key. ACCESSORY INSTALLATION 1.
- Page 6 Peripheral products such as engines, electric motors, and actuators may carry an original manufacturer’s warranty. Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.Kolpin.com...
