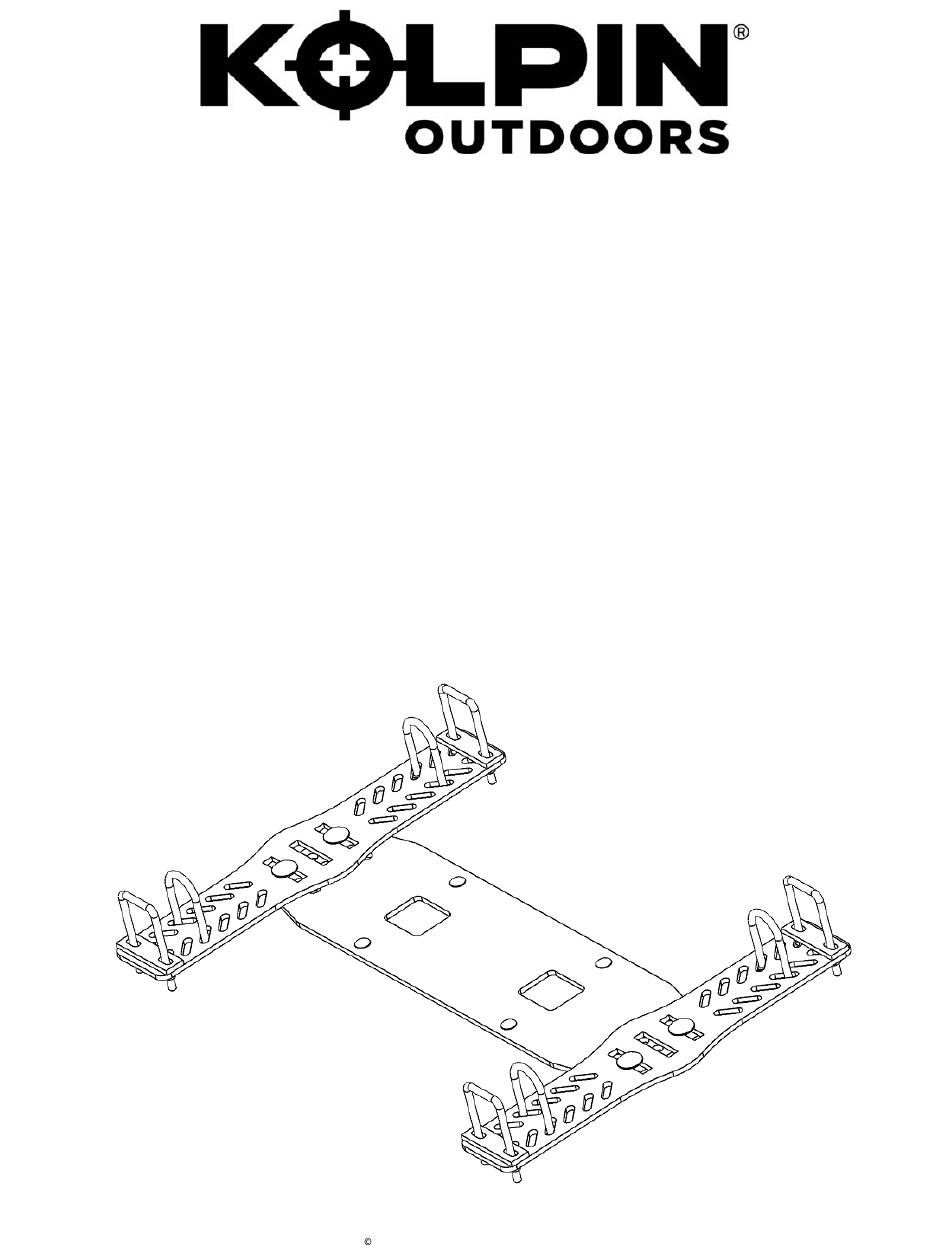

ALL MOUNT

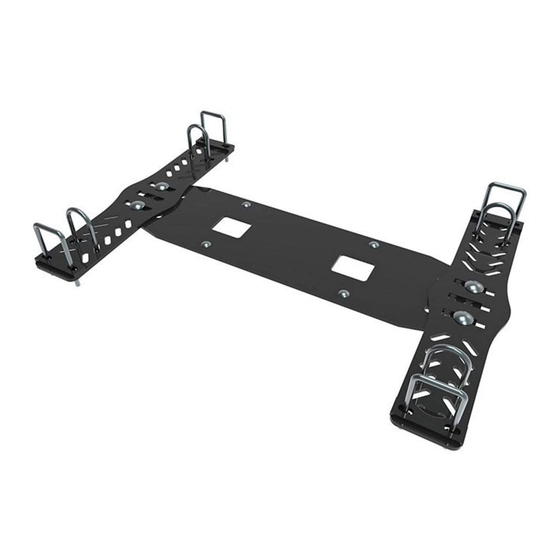

UNIVERSAL UTV PLOW MOUNT KIT
P/N 34-0050
ASSEMBLY / OWNERS MANUAL
Application
PLOW PUSH FRAME NO. 34-0000 or 34-0070
Before you begin, please read these instructions and check to be sure all parts and tools are ac-
counted for. The following instructions contain details required to install and service the contents of
this kit.
2017 Kolpin Outdoors Inc.
REV 03
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 34-0050
Summary of Contents for Kolpin Outdoors 34-0050
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are ac- counted for. The following instructions contain details required to install and service the contents of this kit. 2017 Kolpin Outdoors Inc. REV 03...
-
Page 2: Safety Information
IN UP POSITION. DO NOT ATTEMPT TO RAISE BLADE BY HAND; USE THE LIFT MECHANISM ONLY. LOWER BLADE TO DOWN POSITION WHEN BLADE AND ATV/UTV ARE NOT IN USE. READ BLADE'S INSTRUCTION SHEETS AND ATV/UTV OWNER MANUAL. 2017 Kolpin Outdoors Inc. REV 03... -
Page 3: Kit Contents
Square U-Bolts Round U-Bolts Carriage Bolt, Zinc Plated, M12-1.75 x 40mm LG Carriage Bolt, Zinc Plated, M8-1.25 x 25mm LG Flange Locknut, Zinc Plated, M8-1.25 Flange Locknut, Zinc Plated, M12-1.75 Instruction Guide (not shown) 2017 Kolpin Outdoors Inc. REV 03... -
Page 4: Before You Begin
Plastic skid plate may need to be modified to allow fitment of mount plates. Plastic skid plate can be re-installed if desired. Plastic skid plate provides underside protection that mount plates by themselves cannot provide. 2017 Kolpin Outdoors Inc. REV 03... - Page 5 Note, a high speed cutting tool (like a Dremel) with a cutting bit will also work. (See Illustration 1-3). Re-install the plastic skid plate(s) using OEM fasten- ers. (See Illustration 1-3). Ill. 1-3 2017 Kolpin Outdoors Inc. REV 03...
- Page 6 Item #9 Item #1 Item #7 12. Tighten the M8 locknuts for the u-bolts. Do not over- tighten. The excess threads can be trimmed, but leave 3-4 threads exposed past the locknut. Ill. 1-7 2017 Kolpin Outdoors Inc. REV 03...
-
Page 7: Service Kit
Carriage Bolt, Zinc Plated, M12-1.75 x 40mm LG Included Carriage Bolt, Zinc Plated, M8-1.25 x 25mm LG Included Flange Locknut, Zinc Plated, M8-1.25 Included Flange Locknut, Zinc Plated, M12-1.75 Included Instruction Guide (not shown) 2017 Kolpin Outdoors Inc. REV 03... -
Page 8: One Year Limited Warranty
Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com 2017 Kolpin Outdoors Inc. REV 03...
