Chapter 3 Specifications

Chapter 3 Specifications

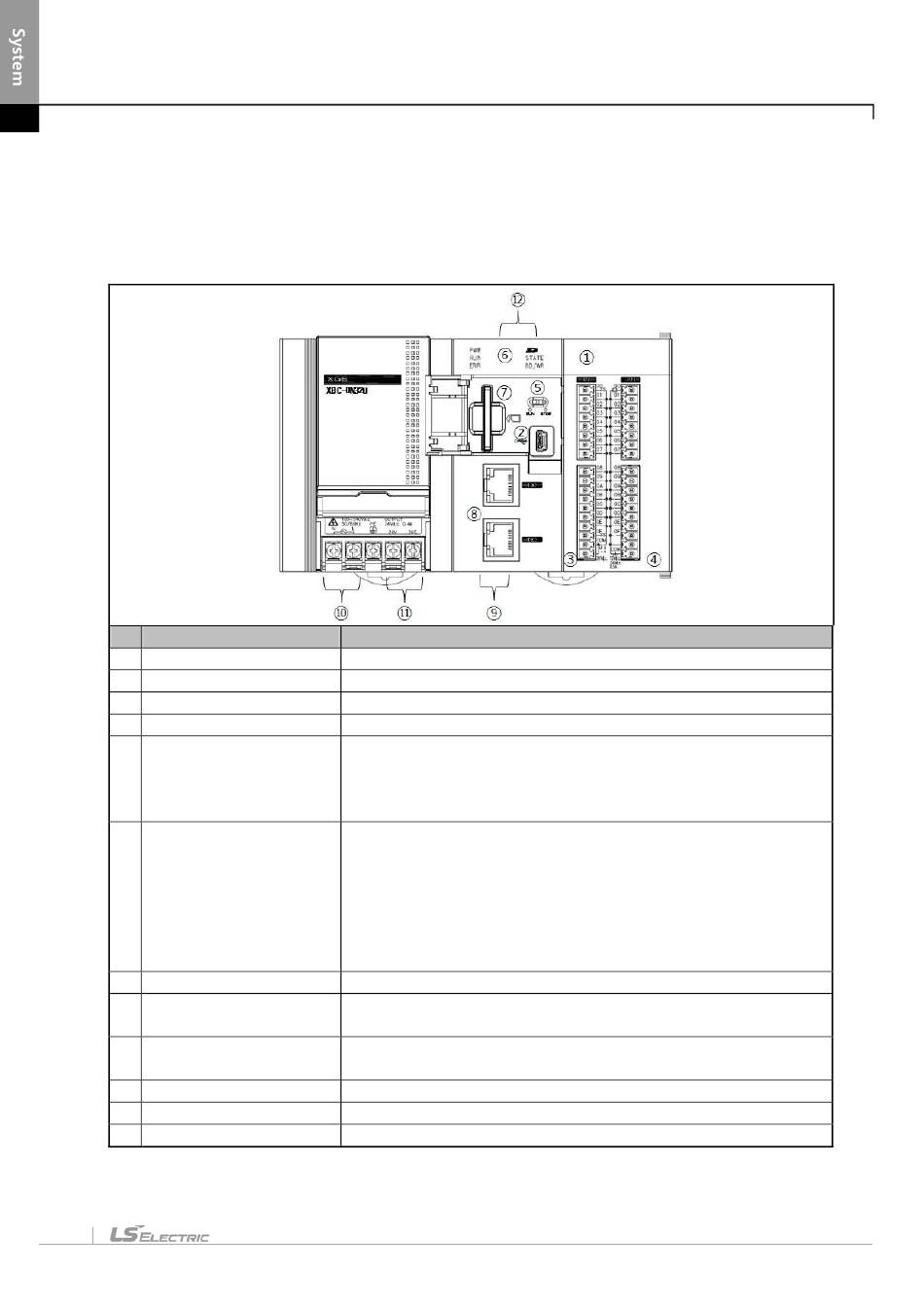

3.1 Names and Functions of Each Part

3.1.1 Basic Type
No Names
① LED for displaying input, output ■ Displays the On/Off status of input, output contacts
② Connector for PADT
③ Input connector
④ Output connector
⑤ RUN/STOP mode switch
⑥ Status display LED
⑦ SD card connector
connector for the embedded
⑧
Enet communication
connector for the embedded
⑨
communication
⑩ Power terminal block
⑪ 24V output
⑫ Battery holder
3-1
■ Connector(USB 1channel) to access to XG5000
■ Terminal block receiving the actual input signal
■ Terminal block outputting the actual output signal
■ Sets the basic unit's operation mode.
• STOP → RUN : Program's operation is executed.
• RUN → STOP : Program's operation is stopped.
(In case of STOP, the remote operation is available.)
■ Displays the basic unit's operation status.
• PWR(Red light On) : The power is supplied.
• RUN(Green light On) : During RUN mode
• ERR(Flickering red light) : Occurrence of errors during operation
• STATE(Red light On/flickering Red light): When the SD card is installed, the
red light is turned On; when the SD card error occurs, the red light is flickering.
• RD/WR(Flickering red light) : During SD card Write
■ Connector with the SD memory card
■ Terminal block for the embedded Enet communication
■ Terminal block(lower part of the product) for the embedded RS-232C/485
communication
■ Terminal block (AC 100 ~ 240V or DC24V) for power supply
■ Terminal block with DC 24V output(Not supported on DC type)
■ Battery holder(upper part of the product)
Purposes
