LS ELECTRIC XGT Series User Manual

Programmable logic control
Hide thumbs Also See for XGT Series:
Table of Contents

Advertisement

Quick Links

Programmable Logic Control
XGB Main unit(XBC-U Type)
XGT Series
XBC-DN32U(/DC)
XBC-DN32UP(/DC)
XBC-DN32UA (/DC)
XBC-DP32U(/DC)
XBC-DP32UP(/DC)
XBC-DP32UA(/DC)
XBC-DR28U(/DC)
XBC-DR28UP(/DC)
XBC-DR28UA(/DC)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XGT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LS ELECTRIC XGT Series

Summary of Contents for LS ELECTRIC XGT Series

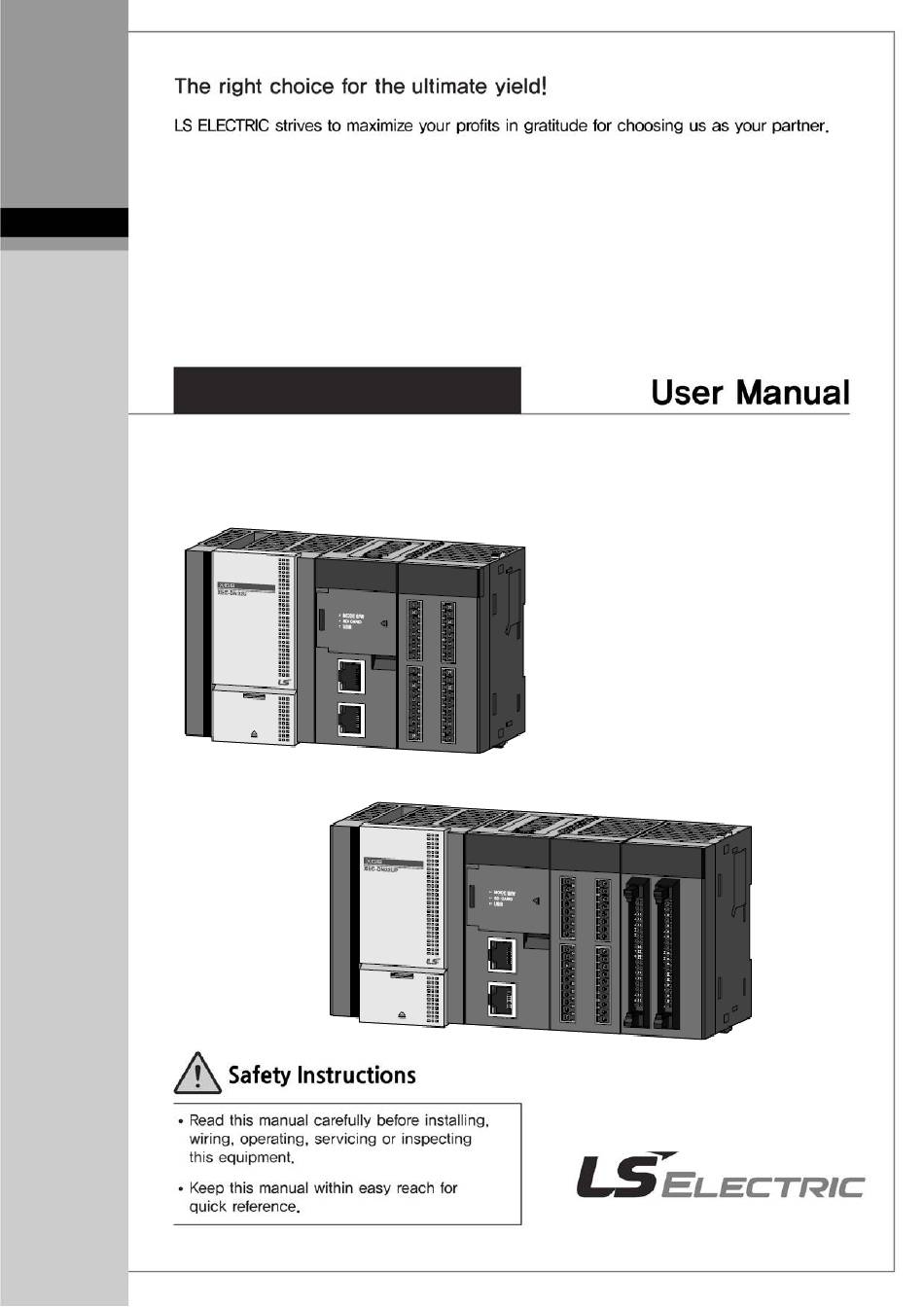

  • Page 1 Programmable Logic Control XGB Main unit(XBC-U Type) XGT Series XBC-DN32U(/DC) XBC-DN32UP(/DC) XBC-DN32UA (/DC) XBC-DP32U(/DC) XBC-DP32UP(/DC) XBC-DP32UA(/DC) XBC-DR28U(/DC) XBC-DR28UP(/DC) XBC-DR28UA(/DC)
  • Page 2 Safety Instruction Before using the product … For your safety and effective operation, please read the safety instructions thoroughly before using the product. ► Safety Instructions should always be observed in order to prevent accident or risk with the safe and proper use the product. ►...
  • Page 3 Safety Instruction Safety Instructions when designing Warning  Please, install protection circuit on the exterior of PLC to protect the whole control system from any error in external power or PLC module. Any abnormal output or operation may cause serious problem in safety of the whole system.
  • Page 4 Safety Instruction Safety Instructions when designing Caution I/O signal or communication line shall be wired at least 100mm  away from a high-voltage cable or power line. If not, it may cause abnormal output or operation. Safety Instructions when designing Caution ...
  • Page 5 Safety Instruction Safety Instructions when wiring Warning Prior to wiring, be sure that power of PLC and external power is  turned off. If not, electric shock or damage on the product may be caused. Before PLC system is powered on, be sure that all the covers of ...
  • Page 6 Safety Instruction Safety Instructions for test-operation or repair Warning  Don’t touch the terminal when powered. Electric shock or abnormal operation may occur.  Prior to cleaning or tightening the terminal screws, let all the external power off including PLC power. If not, electric shock or abnormal operation may occur.
  • Page 7 Revision History Revision History Version Date Remark Part Page 1. First Edition V 1.0 2015.5 1.source output PLC added(XBC-DPxxU(A)(P)) Front 2-1~4,3-6 2.DC power PLC added(/DC) Front 3.PID bumpless added -_PID_MV_BMPL flag comment modified 6-20 4.Web server download modified V1.1 2015.7 -2) communication setup 3-20~21 -3.5 Improvement of the web server’s speed...
  • Page 8 Revision History 10. Add PLC uptime flag App 1-5 11. PID differential calculation source parameter 6-20 added 1. Company name changed V1.3 2020.06...
  • Page 9 About User’s Manual About User’s Manual Congratulations on purchasing PLC of LS ELECTRIC Co.,Ltd. Before use, make sure to carefully read and understand the User’s Manual about the functions, performances, installation and programming of the product you purchased in order for correct use and importantly, let the end user and maintenance administrator to be provided with the User’s Manual.
  • Page 10 About User’s Manual XGB Profibus-DP I/F It describes how to use XGB Profibus-DP I/F (Master) User’s 10310001310 (Master) Commnunication Module Manaual XGB Profibus-DP I/F It describes how to use XGB Profibus-DP I/F (Slave) User’s 10310001410 (Slave) Commnunication Module Manaual DeviceNet It describes how to use XGB DeviceNet I/F (Slave) User’s 10310001414...

  • Page 11: Table Of Contents

    Table of Content ◎ Contents ◎ Contests Part1. System Chapter 1 Introduction ..................... 1-1~1-18 1.1 Guide to Use This Manual ..................... 1-1 1.2 Features ........................1-3 1.3 Terminology ........................1-5 Chapter 2 System configuration ..................2-1~2-12 2.1 Table of Products Configuration ..................2-1 2.2 Classification and Type of Product Name ..............
  • Page 12 Table of Content Part2. Basic Functions Chapter 1 Program Configuration and Operation Method ..........1-1~1-32 1.1 Programming Basics ..................... 1-1 1.2 Operation mode......................1-24 1.3 Memory ........................1-27 Chapter 2 CPU Function ..................... 2-1~2-38 2.1 Type Setting ........................2-1 2.2 Parameter Setting ......................2-2 2.3 Self-Diagnosis Function .....................
  • Page 13 Table of Content 4.3 Internal Memory ......................4-23 4.4 Example of Using High-speed Counter ............... 4-27 Chapter 5 Data Log Function .................... 5-1~5-100 5.1 Overview ........................5-1 5.2 Performance Specifications ................... 5-6 5.3 Specific Functions ....................... 5-7 5.4 Regular Save ....................... 5-27 5.5 Trigger Save ........................
  • Page 14 Table of Content 2.2 External Interface I/O Specifications ................2-3 2.3 The Name of Each Part ....................2-8 Chapter 3 Operation Order and Installation ................ 3-1~3-20 3.1 Operation Order ........................ 3-1 3.2 Installation ........................3-2 3.3 Notices in Wiring ......................3-3 Chapter 4 Positioning Parameter &...
  • Page 15 Table of Content 8.5 Modification Function of Control ................... 8-125 8.6 Auxiliary Function of Control ................... 8-143 8.7 Data Modification Function ..................... 8-149 Chapter 9 Positioning Error Information & Solutions............9-1~9-16 9.1 Positioning Error Information & Solutions ................9-1 Chapter 10 Internal Memory Address of “Read/Write Variable Data” command .... 10-1~10-92 10.1 Parameter memory address ...................
  • Page 16 Table of Content Part 5 Built-in communication functions Chapter.1 Built-in FEnet communication ................1-1~1-124 1.1 Outline ........................... 1-1 1.2 Specifications ........................ 1-3 1.3 Specifications of installation and a trial run ..............1-9 1.4 Configuration of FEnet communication system ............1-13 1.5 Protocols for each service ...................
  • Page 17 Table of Content Chapter 3 Web Server ......................3-1~3-78 3.1 Outline of the Web Server ..................... 3-1 3.2 Specification ........................3-5 3.3 How to use the web server .................... 3-8 3.4 Functions of the web server ..................3-15 3.5 Improvement of the web server’s speed ..............3-74 3.6Directions for use of the web server................

  • Page 18: Part1. System

    Chapter 1 Introduction Part 1. System Chapter 1 Introduction 1.1 Guide to this Manual This manual includes specifications, functions and handling instructions for XGB series PLC. This manual is divided up into chapters as follows Title Contents Describes configuration of this manual, unit’s features and Chapter 1 Introduction terminology.
  • Page 19 Chapter 1 Introduction Chapter 6 Built-in PID Function Describes Built-in PID Function Describes the specification, method to use each positioning Chapter 1 Overview function, programming and the wiring with external equipment of embedded positioning function. Chapter 2 Specifications Describes general specifications of Positing function. Describes the Operation order in case of positioning operation by Chapter 3 Operation Order and Installation...

  • Page 20: Features

    Chapter 1 Introduction 1.2 Features The high performance XGB basic unit has the following characteristics. 1.2.1 Advanced Performances (1) Rapid Processing Speed The processing speed has been improved up to more than 30% compared to the existing XGB PLC. Items XBC ‘SU’...
  • Page 21 Chapter 1 Introduction 1.2.3 Powerful Embedded Functions (1) Embedded high-speed counter function - The high-speed counter with up to 100kpps 8 channels(based on 1 phase 1 input 1 multiplication) is embedded. - Various additional functions such as comparative readout, comparative task, frequency measurement, revolutions per hour, etc.

  • Page 22: Terminology

    Chapter 1 Introduction 1.3 Terminology 1.3.1 Powerful Embedded Functions The following table gives definition of terms used in this manual. Terms Definition Remark Example) Expansion module, A standard element that has a specified function which configures the Module Specialmodule, system. Devices such as I/O board, which inserted onto the mother board. Communication module Example)
  • Page 23 Chapter 1 Introduction Terms Definition Remark Current flows from the switch to the PLC input terminal if a input signal turns on. Z: Input Sink Input − impedance Current flows from the PLC input terminal to the switch after a input signal turns on.
  • Page 24 Chapter 1 Introduction 1.3.2 Serial communication term (1) Communication type (a) Simplex This is the communication type that data is transferred in a constant direction. Information can not be transferred in the reverse direction. (b) Half-Duplex Data is transferred in two ways with one cable if time interval provided, though it can’t be transferred simultaneously. (c) Full-Duplex Data is simultaneously transferred and received in two ways with two cables.
  • Page 25 Chapter 1 Introduction (b) Parallel transmission This type is used in printer, etc., which transmits data in unit of 1 byte, so the speed is high and the accuracy of data is reliable. However, the longer the transmission distance is, the higher the cost of installation is geometrically. 송신...
  • Page 26 Chapter 1 Introduction (4) Protocol This is communication rule established in relation between the transmission side and the receiving side of information in order to send and accept information between two computers/terminals or more without error, effectively, and reliably. In general, this specifies call establishment, connection, structure of message exchange form, re-transmission of error message, procedure of line inversion, and character synchronization between terminals, etc.
  • Page 27 Chapter 1 Introduction (11) Half Duplex Communication Two-way communication is available, however simultaneous communication of transmission & receiving isn’t available. This communication type is applied to RS-485 for instance. It is used a lot for multi-drop communication type which communicates via one signal line by several stations. Half Duplex Communication results from the transmission characteristic performed by stations one by one not allowing simultaneous transmission by multi stations due to the data damage of data impact caused by the simultaneous multi-transmission of the stations.
  • Page 28 Chapter 1 Introduction (13) BCC (Block Check Character) As serial transmission may have signals distorted due to undesirable noise in transmission line, BCC is used as data to help receiving side to check the signals if normal or distorted and to detect errors in signals as compared with the received BCC after calculating BCC by receiving side itself using the data input to the front terminal of BCC.
  • Page 29 Chapter 1 Introduction (15) Frame Frame is composed of transmitted and received data as in a specified form in data communication including additional information of segments [station No., command, parameter by command], control characters [ENQ, ACK, EOT, ETX] for synchronization, parity for detecting error, and BCC. The structure of frame used for serial communication of Cnet is as follows.
  • Page 30 Chapter 1 Introduction 1.3.3 Ethernet term This chapter describes about the general terminology of FEnet I/F module. For more detail, refer to professional book on the Ethernet IEEE 802.3 IEEE 802.3 specifies standards for CSMA/CD based Ethernet. Exactly it is a LAN based on CSMA/CD (Carrier Sense Multiple Access with Collision Detection) Ethernet designed by IEEE 802.3 group, which is classified into detailed projects as specified below;...
  • Page 31 Chapter 1 Introduction E-mail Address The address of the user with login account for the specific machine connected via the Internet. Usually user’s ID @ domain name (machine name) is assigned. In other words, it will be like hjjee@microsoft.com, where @ is called as ‘at’...
  • Page 32 Chapter 1 Introduction IP Address Address of respective computers on the Internet made of figures binary of 32 bits (4 bytes) to distinguish the applicable machine on the Internet. Classified into 2 sections, network distinguishing address and host distinguishing address. The network address and the host address is respectively divided into class A, B and C based on the bits allotted.
  • Page 33 Chapter 1 Introduction example, which bit/byte should go out through the line) or high level of message exchange regulations as files are transferred through the Internet. Router A device used to transfer the data packet between the networks. It sends the data packet to its final destination, waits if the network is congested, or decides which LAN is good to connect to at the LAN junction.
  • Page 34 Chapter 1 Introduction Token Ring As short-distance network using Token to connect to network having physical ring structure, one of the Node connection methods at network. If node sending data gets Token, then node gets right to send message packet. Realistically structured examples are IEEE 802.5, ProNet-1080 and FDDI. Terms called Token is used as IEEE 802.5 Token passing Token...
  • Page 35 Chapter 1 Introduction 1-18...

  • Page 36: Chapter 2 System Configuration

    Chapter 2 System Configuration Chapter 2 System Congifuration You can configure various systems by using the XGB ‘U’ Type basic unit and expansion·special communication I/F modules. This chapter describes how to configure the system through the XGB ‘U’ Type basic unit 2.1 Table of Products Configuration The available configurations of for the XGB ‘U’...
  • Page 37 Connection cable (PC to PLC), USB Notice (1) LS ELECTRIC CO., LTD. has consistently developed and launched new products. For new products that are not included to this manual, please contact a nearby exclusive agency. (2) Use USB cable within 3m length and use shield cable like USB-301A.

  • Page 38: Classification And Type Of Product Name

    Chapter 2 System Configuration 2.2 Classification and Type of Product Name 2.2.1 Classification and type of basic unit Standard (S) Name of basic unit is classified as follows. Standard with usb loader (S) High-end type (H) Ultimate Performance type (U) Ultimate Analog type (UA) Ultimate Positioning type (UP) XGB PLC...
  • Page 39 Chapter 2 System Configuration 2.2.2 Classification and type of expansion module Name of expansion module is classified as follows. No. of I/O point XGB series Relay output(RY) Transistor output (TN/TP) I/O expansion module(E) Digital input (DC) Expansion special module(F) Digital input+ sink type transistor output (DN) Expansion communication Digital input+ source type transistor output (DP) module(L)
  • Page 40 Chapter 2 System Configuration 2.2.3 Classification and type of special module Special module is classified as follows Non-insulation type (A) Insulation type (S) XGB series RTD input (RT) TC input(TT) No. of IO point Analog input (AD) Analog voltage output (DC) Analog current output (DV) I/O expansion module(E) RTD input (RD)
  • Page 41 Chapter 2 System Configuration 2.2.4 Classification and type of communication module Name of communication module is classified as follows. C21A Cnet 1 channel (RS-232C): C21A Cnet 1 channel (RS-422/485): C41A XGB series FEnet 1 channel: EMTA RAPIEnet 1 channel: EIMT I/O expansion module(E) Expansion special module(F) Expansion communication...

  • Page 42: Xgb 'U' Type's System Configuration

    Chapter 2 System Configuration 2.3 XGB ‘U’ Type’s System Configuration 2.3.1 How to configure the System You can configure thesystem by using the XGB ‘U’ Type PLC as below. You can connect to the expansion modules up to 10EA. Special module Communication Basic unit I/O module Items...
  • Page 43 Chapter 2 System Configuration 2.3.2 Instructions for System Configuration (1) high speed expansion I/F module XGB ‘U’ Type PLC supports the high speed expansion I/F to enhance the expansion module processing speed. This section describes the instructions to configure the system by using the high speed expansion I/F modules and the existing expansion modules.
  • Page 44 Chapter 2 System Configuration System Configuration is impossible. (The ○ ◎ ◎ ◇ ◇ number of communication modules is exceeded) System Configuration is impossible. (The high speed expansion modules cannot be applied to ○ ◈ ◈ ◇ ◇ the further stage of the existing expansion modules) (2) How to allocate slots for expansion modules -In the case of the high performance XGB PLC, the embedded special functions (built-in positioning or analog)
  • Page 45 Chapter 2 System Configuration 2.3.3 Embedded Communication System Configuration 2.3.3.1 Embedded Cnet I/F System Configuration The Cnet I/F system is the system to transmit·receive external devices including PC and data through RS-232C/RS- 422 I/F. In the case of the high performance XGB PLC, RS-232C and RS-485 communication I/F are respectively embedded.
  • Page 46 Chapter 2 System Configuration (3) Configuring 1:N communication system with the maximum 32 stations by using the basic unit’s embedded RS-485port Notice For detailed specificaitons of the high performance XGB’s embedded Cnet communication, refer to Chap.5 Embedded Communication of this manual. For detailed specificaitons of the expansion Cnet communication module, refer to “XGB Cnet I/F”...
  • Page 47 CSMA/CD and builds up the network easily, furthermore, can collect high-capacity data. (1) Ethernet system’s block diagram Notice For more details on how to the above LS ELECTRIC’s network system configuration and Enet system configuration, refer to Chap.5 Embedded Communication and “XGB FEnet I/F ” of this manual. 2-12...

  • Page 48: Chapter 3 Specifications

    Chapter 3 Specifications Chapter 3 Specifications 3.1 Names and Functions of Each Part 3.1.1 Basic Type Names Purposes ① LED for displaying input, output ■ Displays the On/Off status of input, output contacts ■ Connector(USB 1channel) to access to XG5000 ②...
  • Page 49 Chapter 3 Specifications 3.1.2 Analog Type Names Purposes LED for displaying input, ■ Displays the On/Off status of input, output contacts ① output ■ Connector(USB 1channel) to access to XG5000 ② Connector for PADT ■ Terminal block receiving the actual input signal ③...
  • Page 50 Chapter 3 Specifications 3.1.3 Positioning Type ⑫ ⑥ ① ⑬ ⑤ ⑦ ② ⑧ ③ ④ ⑭ ⑮ ⑩ ⑪ ⑨ Names Purposes LED for displaying input, ■ Displays the On/Off status of input, output contacts ① output ■ Connector(USB 1channel) to access to XG5000 ②...

  • Page 51: General Specifications

    • Peak acceleration : 147 m/s (15G) • Duration : 11ms Shocks • Pulse wave type : Half-sine (3 times each direction per each axis) AC: ±1,500 V Square wave LS ELECTRIC DC: ±900 V impulse noise standard Electrostatic IEC61131-2 Voltage: 4kV (Contact discharge)

  • Page 52: Power Specifications

    Chapter 3 Specifications 3.3 Power specifications This section describes the high performance XGB PLC basic unit’s power specifications. Specification Items AC power DC power Input volatage AC85V ~ AC264V DC24V range Rated input AC100V ~ AC240V DC19.2~28.8V voltage 50/60 ± 3 ㎐(47 ~ 63 ㎐) Input frequency 1.2A or less input current...
  • Page 53 Chapter 3 Specifications 3.3.1 Consumption current (Unit : ㎃) Consumption current Type Model XBC-DN32U(/DC) XBC-DR28U(/DC) XBC-DN32UP(/DC) 1250 Main unit XBC-DR28UP(/DC) 1550 XBC-DN32UA(/DC) XBC-DR28UA(/DC) 1040 XBE-DC32A XBE-DC16A/B XBE-DC08A XBE-RY16A Expansion I/O module XBE-RY08A/B XBE-TN32/16/08A 80/50/40 XBE-DR16A XBE-DN32A XBE-TP32/16/08A 80/50/40 XBF-AD04A XBF-AD08A XBF-AH04A XBF-DV04A XBF-DC04A...
  • Page 54 Chapter 3 Specifications 3.3.2 Calculation Example of Consumption Current/Voltage Calculate the consumption current and configure the system not to exceed the output current capacity of main unit. Refer to 3.3.1 for each module’s consumption current (1) XGB PLC configuration example 1 Consumption of current/voltage is calculated as follows.

  • Page 55: Battery

    Chapter 3 Specifications 3.4 Battery 3.4.1 Battery specifications Items Specifications Nominal voltage / current DC 3.6V / 800 mAh Warranty term 3 years(at room temperature) Purpose Program and data backup, RTC operation during the blackout Backup time 3 years Specifications Lithium battery, 3.6V φ14.5 X 26 mm Appearance Size (mm)
  • Page 56 Chapter 3 Specifications 3.4.4 How to replace a battery The battery used for backup in case of power failure of programs and data requires the periodic replacement. Although the battery is removed, the program and data electrostatic holding data are maintained by the Super Capacitor for about 30 minutes, however, it should be replaced as soon as possible.

  • Page 57: Performance Specifications

    Chapter 3 Specifications 3.5 Performance specifications 3.5.1 Common performance specifications for CPU The high performance XGB basic unit’s common performance specifications for CPU are as below. Specifications Items XBC-DN(P) XBC-DR XBC-DN XBC-DR XBC-DN XBC-DR Remark 32U(/DC) 28U(/DC) 32UA(/DC) 28UA(/DC) 32UP(/DC) 28UP(/DC) Cyclic execution of stored program, Time-driven interrupt, Program control metho...
  • Page 58 Chapter 3 Specifications Specifications Items XBC-DN(P) XBC-DR XBC-DN(P) XBC-DR XBC-DN(P) XBC-DR Remark 32U(/DC) 28U(/DC) 32UA(/DC) 28UA(/DC) 32UP(/DC) 28UP(/DC) Control by instruction, auto-tuning, PWM output, Forced output, Operation scan time setting, PID control Antiwindup, Delta MV, PV tracking, Hybrid operation, Cascade operation Dedicated protocol(XGT) Modbus protocol PID control...
  • Page 59 Chapter 3 Specifications Notice Function support according to CPU OS version: XG5000 related to OS version should be used. CPU OS version XG5000 version Function Remarks V1.9 or later V4.xx SFC, ST language support Automatic assignment variable support 3-12...
  • Page 60 Chapter 3 Specifications 3.5.2 Specifications for Embeded Positioning The specifications for Embeded Positioning are as below. Items Specifications Remark No. of control axi: 4axis Control Method:Position, Speed, Speed/Position, Feed Control Control Unit: Pulse ,mm, inch, degree Basic Function Positioning Data: Each axis can have up to 400 data (Step number:1~400) Operation pattern: End, Keep, Continuous Operation method: Singular, Repeat...
  • Page 61 Chapter 3 Specifications 3.5.3 Specifications for Embeded Analog The specifications for Embeded Anlalog are as below. Items Specifications Remark Channels 4channels (current/voltage) Voltage: 1~5V, 0~5V, 0~10V, -10~10V Current: 4~20㎃,0~20㎃ Input Range Current input or Voltage input can be selected through the external terminal wiring setting.

  • Page 62: Chapter 4 Installation And Wiring

    Chapter 4 Installation and Wiring Chapter 4 Installation and wiring 4.1 Parameter & Operation data Danger  Please design protection circuit at the external of PLC for entire system to operate safely because an abnormal output or an malfunction may cause accident when any error of external power or malfunction of PLC module. (1) It should be installed at the external side of PLC to emergency stop circuit, protection circuit, interlock circuit of opposition action such as forward /reverse operation and interlock circuit for protecting machine damage such as upper/lower limit of positioning.
  • Page 63 Chapter 4 Installation and Wiring Danger Don’t close the control line or communication cable to main circuit or power line. Distance should be more than 100mm. It may cause malfunction by noise. In case of controlling lamp load, heater, solenoid valve, etc. in case of Off -> On, large current (10 times of normal current) may flows, so consider changing the module to module that has margin at rated current.
  • Page 64 Chapter 4 Installation and Wiring 4.1.1 fail safe circuit (1) example of system design (When ERR contact point of power module is not used) In case of AC In case of AC . DC Power Power Check direct Trans Trans Trans current Fuse...
  • Page 65 Chapter 4 Installation and Wiring (2) Fail Safe Measures in case of PLC failures Failures of the PLC CPU and memory are detected by self-diagnosis but if there are some problems with I/O control part, etc, the failure may not be detected from the CPU. In this case, it can be different depending on the failure status, all contacts may be On or Off so normal operation or safety of the controlled subject cannot be guaranteed.
  • Page 66 Chapter 4 Installation and Wiring 4.1.2 PLC heat calculation (1) Power consumption of each part (a) Power consumption of module The power conversion efficiency of power module is about 70% and the other 30% is gone with heat; 3/7 of the output power is the pure power consumption.
  • Page 67 Chapter 4 Installation and Wiring (e) Input average power consumption of input module (power consumption of simultaneous On point) • W X E X input point X simultaneous On rate (W) : input current (root mean square value in case of AC) (A) E : input voltage (actually used voltage) (V) (f) Power consumption of special module power assembly •...

  • Page 68: Attachment/Detachment Of Modules

    Chapter 4 Installation and Wiring 4.2 Attachment/Detachment of Modules Here describes about basic parameter of embedded positioning. 4.2.1 Attachment/Detachment of modules Caution in handling Use PLC in the range of general specification specified by manual. In case of usage out of range, it may cause electric shock, fire, malfunction, damage of product. Remark ...
  • Page 69 Chapter 4 Installation and Wiring (3) Installation of module XGB PLC has a hook for DIN rail (rail width: 35mm) so that cab be installed at DIN rail. (a) In case of installing at DIN rail • Pull the hook as shown below for DIN rail at the bottom of module and install it at DIN rail •...
  • Page 70 Chapter 4 Installation and Wiring (4) Module equipment location Keep the following distance between module and structure or part for ventilation, easy detachment and attachment. 30㎜ or above 20㎜or above 30㎜or above 5㎜ or above 5㎜ or above *1 : In case height of wiring duct is less than 50 mm (except this 40mm or more) *2 : In case of equipping cable without removing near module, 20mm or more *3 : In case of connector type, 20mm or above (5) Module equipment direction...
  • Page 71 Chapter 4 Installation and Wiring (6) Distance with other device To avoid radiation noise or heat, keep the distance between PLC and device (connector and relay) as far as the following figure. Device installed in front of PLC: 100 ㎜ or more Device installed beside PLC: 50 ㎜...
  • Page 72 Chapter 4 Installation and Wiring 4.2.2 Caution in handling Here describes caution from open to install • Don’t drop or impact product. • Don’t disassemble the PCB from case. It may cause an error. • In case of wiring, make sure foreign substance not to enter upper part of module.

  • Page 73: Wire

    Chapter 4 Installation and Wiring 4.3 Wire In case using system, it describes caution about wiring. Danger When wiring, cut off the external power. If all power is cut, it may cause electric shock or damage of product. In case of flowing electric or testing after wiring, equip terminal cover included in product. It not, it may cause electric shock. Remark ...
  • Page 74 Chapter 4 Installation and Wiring (3) Isolate the PLC power, I/O devices and power devices as follows. Main unit Main power power Constant AC220V Voltage Transformer AC100-240V IO power Main circuit device (4) If using DC24V of the main unit (a) Do not connect DC24V of several power modules in parallel.
  • Page 75 Chapter 4 Installation and Wiring (8) To prevent surge from lightning, use the lightning surge absorber as presented below. (9) Wiring of each input power should be twisted as short as possible and the wiring of shielding transformer or noise filter should not be arranged via a duct.
  • Page 76 Chapter 4 Installation and Wiring 4.3.2 I/O Device wiring (1) The size of I/O device cable is limited to 0.3~2 mm but it is recommended to select a size(0.3 mm ) to use conveniently. (2) Please isolate input signal line from output signal line. (3) I/O signal lines should be wired 100mm and more away from high voltage/high current main circuit cable.
  • Page 77 Chapter 4 Installation and Wiring (6) Example of input module. (7) Example of output module. 4-16...
  • Page 78 Chapter 4 Installation and Wiring 4.3.3 Grounding wiring (1) The PLC contains a proper noise measure, so it can be used without any separate grounding if there is a large noise. However, if grounding is required, please refer to the followings. (2) For grounding, please make sure to use the exclusive grounding.
  • Page 79 Chapter 4 Installation and Wiring 4-18...

  • Page 80: Chapter 5 Maintenance

    Chapter 5 Maintenance Chapter 5 Maintenance Be sure to perform daily and periodic maintenance and inspection in order to maintain the PLC in the best conditions. 5.1 Maintenance and Inspection The I/O module mainly consist of semiconductor devices and its service life is semi-permanent. However, periodic inspection is requested for ambient environment may cause damage to the devices.

  • Page 81: Daily Inspection

    Chapter 5 Maintenance 5.2 Daily Inspection The following table shows the inspection and items which are to be checked daily. Corrective Check Items Check Points Judgment Actions Connection conditions of Retighten Check the screws. Screws should not be loose. base Screws.

  • Page 82: Chapter 6 Troubleshooting

    Chapter 6 Trouble Shooting Chapter 6 Troubleshooting The following explains contents, diagnosis and corrective actions for various errors that can occur during system operation. 6.1 Basic Procedure of Troubleshooting System reliability not only depends on reliable equipment but also on short downtimes in the event of fault. The short discovery and corrective action are needed for speedy operation of system.
  • Page 83 Chapter 6 Trouble Shooting 6.2.1 Troubleshooting flowchart used when the PWR (Power) LED turns Off The following flowchart explains corrective action procedure used when the power is supplied or the power LED turns Off during operation. Power LED is turned Off. Is the power supply Supply the power.
  • Page 84 Chapter 6 Trouble Shooting 6.2.2 Troubleshooting flowchart used with when the ERR (Error) LED is flickering The following flowchart explains corrective action procedure used when the power is supplied starts or the ERR LED is flickering during operation. STOP LED goes flickering Check error code,...
  • Page 85 Chapter 6 Trouble Shooting 6.2.3 Troubleshooting flowchart used with when the RUN , STOP LED turns Off. The following flowchart explains corrective action procedure to treat the lights-out of RUN LED when the power is supplied, operation starts or is in the process. RUN, STOP LED is Off.
  • Page 86 Chapter 6 Trouble Shooting 6.2.4 Troubleshooting flowchart used when the I/O part doesn’t operate normally. The following flowchart explains corrective action procedure used when the I/O module doesn’t operate normally. When the I/O module doesn’t work normally. Is the output LED of SOL1 Replace the connector of Correct wiring.
  • Page 87 Chapter 6 Trouble Shooting Continue Are the indicator LED of the switch 1 and 2 on? Check voltage of switch 1,2 by Check voltage of switch 1,2 by tester tester Is the Is the measured value Is the measured value terminal screw tighten normal? normal?

  • Page 88: Troubleshooting Questionnaire

    Chapter 6 Trouble Shooting 6.3 Troubleshooting Questionnaire If any problem occurs during the operation of XGB series, please write down this Questionnaires and contact the service center via telephone or facsimile.  For errors relating to special or communication modules, use the questionnaire included in the User’s manual of the unit. 1.

  • Page 89: Troubleshooting Examples

    Chapter 6 Trouble Shooting 6.4 Troubleshooting Examples Possible troubles with various circuits and their corrective actions are explained. 6.4.1 Input circuit troubles and corrective actions The followings describe possible troubles with input circuits, as well as corrective actions. Corrective Actions Cause Condition ...
  • Page 90 Chapter 6 Trouble Shooting  Use only one power supply.  Sneak current due to the use of two different power  Connect a sneak current prevention diode. Input signal doesn’t turn off. supplies. DC input DC input  E1 > E2, sneaked. 6.4.2 Output circuit and corrective actions The following describes possible troubles with output circuits, as well as their corrective actions.
  • Page 91 Chapter 6 Trouble Shooting  Leakage current by surge absorbing circuit, which is  Drive the relay using a contact and drive the C-R type When the load is C-R type timer, connected to output element in parallel. timer using the since contact. ...
  • Page 92 Chapter 6 Trouble Shooting transistor output.  To suppress the surge current make the dark Output Surge current of the white lamp on. transistor current of 1/3 to 1/5 rated current flow. destroyed. Output Output Sink type transistor output Output A surge current of 10 times or more when turned Source type...

  • Page 93: Error Code List

    Chapter 6 Trouble Shooting 6.5 Error Code List Error code Action Operation Diagnosis Error cause (restart mode after taking an action) status status point (Dec) Program to execute is 0.5 second Start after reloading the program Warning RUN mode abnormal Flicker Start after reloading I/O parameter, Reset...
  • Page 94 Chapter 6 Trouble Shooting Error code Action Operation Diagnosis Error cause (restart mode after taking an action) status status point (Dec) Scan time of program during operation After checking the scan watchdog time designated While exceeds the scan 0.5 second by parameter, modify the parameter or the Warning running the...
  • Page 95 Chapter 6 Trouble Shooting 6-14...

  • Page 96: Chapter 7 Emc Standard

    XGB series. The details of these precautions are based on the requirements and the applicable standards control. However, LS ELECTRIC guarantee that the overall machinery manufactured according to the these details conforms to the below-described directives. The method of conformance to the EMC directive and the judgment on whether or not the machinery conforms to the EMC Directive must be determined finally by the manufacturer of the machinery.
  • Page 97 Chapter 7 EMC Standard 7.1.2 Control Panel The PLC is an open type device (device installed to another device) and must be installed in a control panel. This is needed to prevent electric shock by touching XGB PLC and reduce the PLC-generated noise. Install the XGB PLC in a metallic panel to reduce PLC-generated EMI (Electro-magnetic interference), The specifications for the control panel are as follows: (1) Control panel...
  • Page 98 Chapter 7 EMC Standard (2) Connection of power and earth wires Earthing and power supply wires for the PLC system must be connected as described below. ferrite core (a) Earth the control panel with a thick wire so that a low impedance connection to ground can be ensured even at high frequencies. (b) The function of LG (Line Ground) and FG (Frame Ground) terminals is to pass the noise generated in the PLC system to the ground, so an impedance that is as low as possible must be ensured.

  • Page 99: Requirement To Conform To The Low-Voltage Directive

    The described contents in this manual are based on the requirements and the applicable standards control. However, LS ELECTRIC guarantee that the overall machinery manufactured according to the these details conforms to the above regulation. The method of conformance to the EMC directive and the judgment on whether or not the machinery conforms to the EMC Directive must be determined finally by the manufacturer of the machinery.
  • Page 100 Chapter 1 Configuration and Operation Mode of Programs Part 2 Basic Functions This Chapter covers the details of programming and operations, monitoring of the high performance XGB basic unit (XBC-DN32UX) Chapter 1 Program Configuration and Operation Method 1.1 Programming Basics 1.1.1 Programming Method The XBC high performance basic unit supports programming method of repetitive operation interrupt operation, fixed operation.
