Dimensions and Templates, cont'd

Templates

N

Extender WM template

4.50"
(11.43 cm)
Extender Series • Dimensions and Templates
B-10
Always check and use the dimensions given in this appendix.

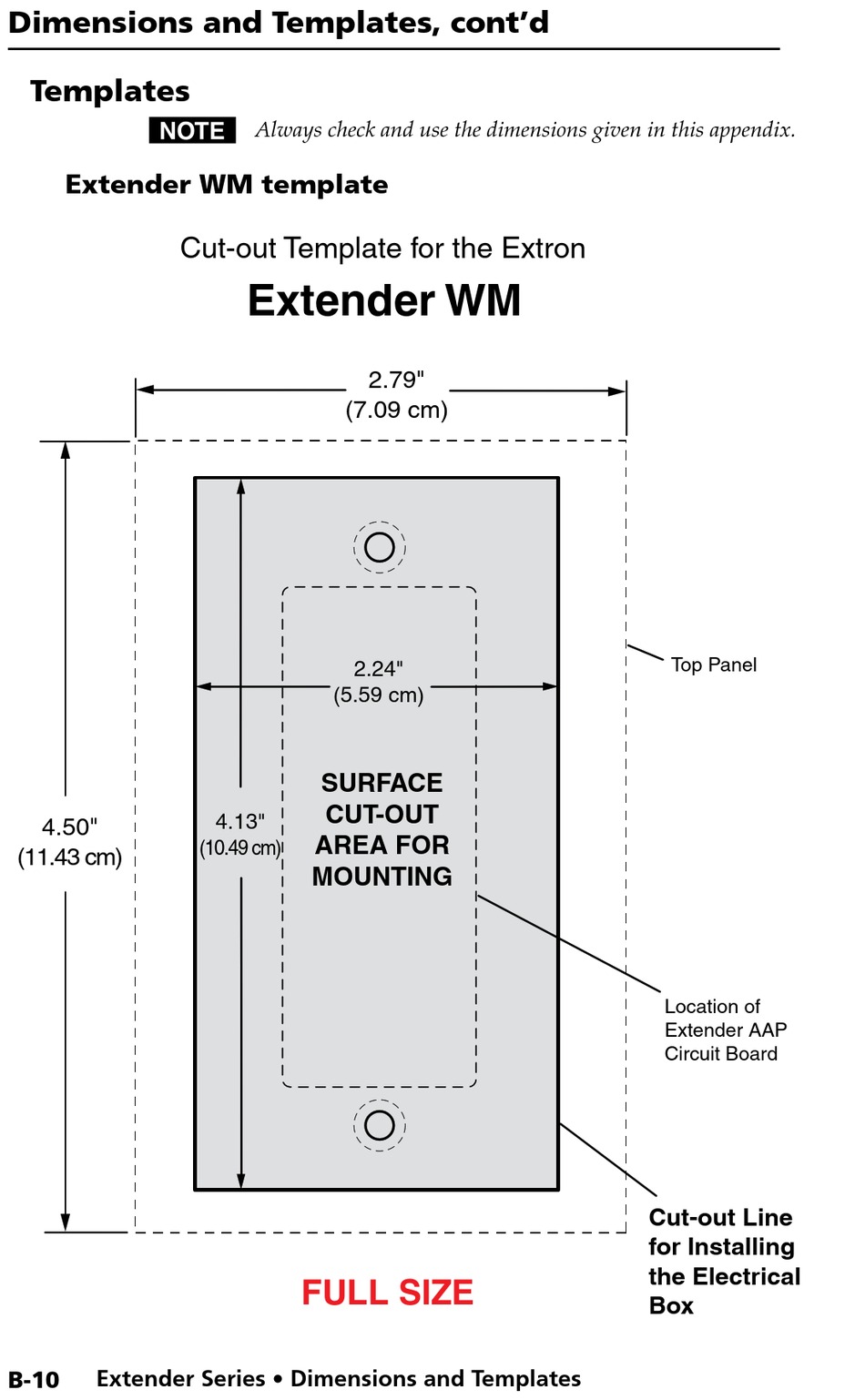

Cut-out Template for the Extron
Extender WM
(5.59 cm)
SURFACE
CUT-OUT
4.13"
AREA FOR
(10.49 cm)
MOUNTING
FULL SIZE
2.79"
(7.09 cm)
2.24"
Top Panel
Location of
Extender AAP
Circuit Board
Cut-out Line
for Installing
the Electrical
Box
