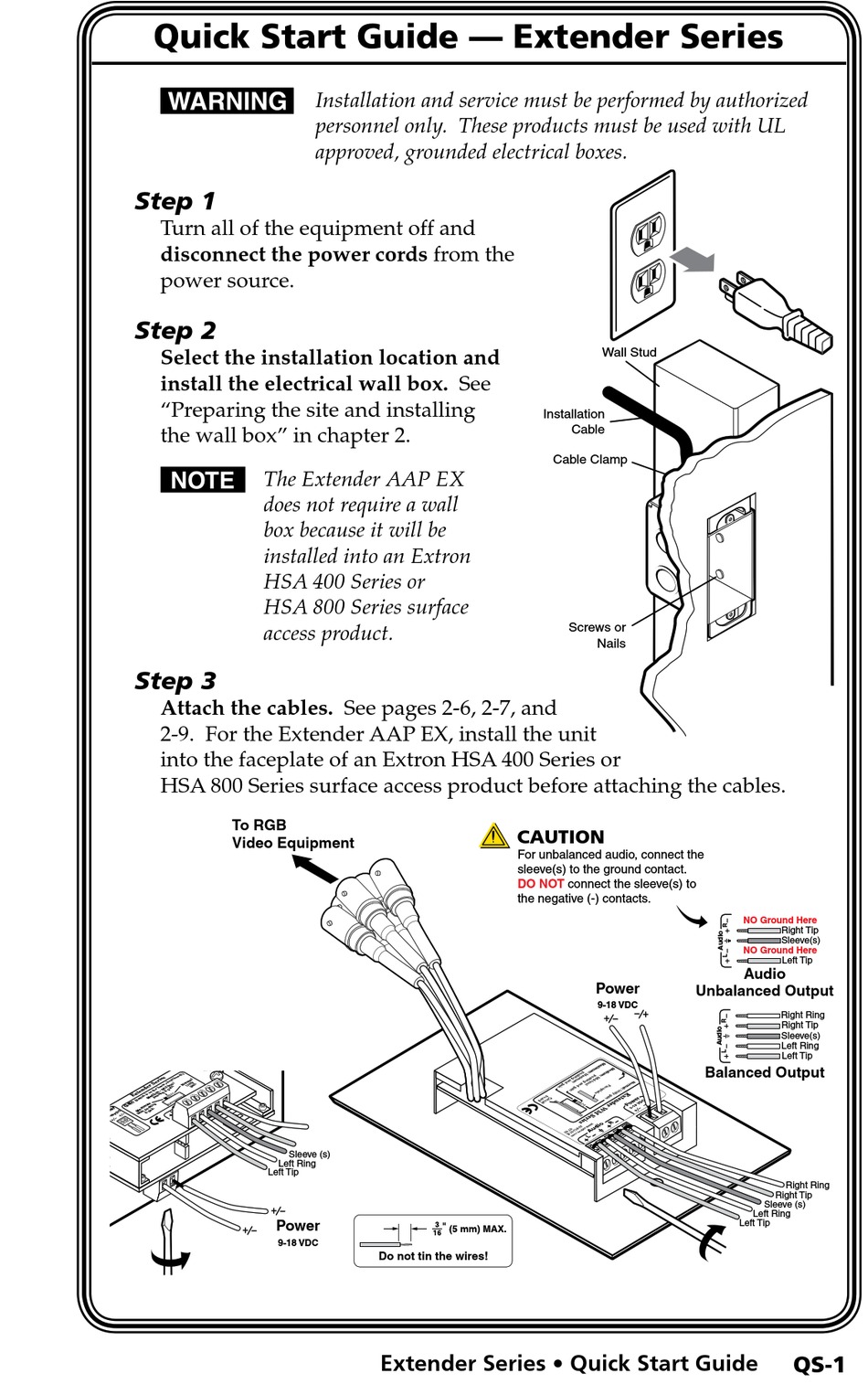

Quick Start Guide — Extender Series
W
Step 1
Turn all of the equipment off and
disconnect the power cords from the
power source.
Step 2
Select the installation location and
install the electrical wall box. See
"Preparing the site and installing
the wall box" in chapter 2.
N The Extender AAP EX
does not require a wall
box because it will be
installed into an Extron
HSA 400 Series or
HSA 800 Series surface
access product.
Step 3
Attach the cables. See pages 2‑6, 2-7, and
2‑9. For the Extender AAP EX, install the unit
into the faceplate of an Extron HSA 400 Series or
HSA 800 Series surface access product before attaching the cables.
To RGB
Video Equipment
Sleeve (s)
Left Ring
Left Tip
Power
9-18 VDC
Installation and service must be performed by authorized
personnel only. These products must be used with UL
approved, grounded electrical boxes.
Do not tin the wires!
Extender Series • Quick Start Guide
Wall Stud
Installation
Cable
Cable Clamp
Screws or
Nails
CAUTION
For unbalanced audio, connect the
sleeve(s) to the ground contact.
DO NOT
connect the sleeve(s) to
the negative (-) contacts.
Power
9-18 VDC
NO Ground Here
Right Tip
Sleeve(s)
NO Ground Here
Left Tip
Audio
Unbalanced Output
Right Ring
Right Tip
Sleeve(s)
Left Ring
Left Tip
Balanced Output
Right Ring
Right Tip
Sleeve (s)
Left Ring
Left Tip
QS-1
