Installation, cont'd
a

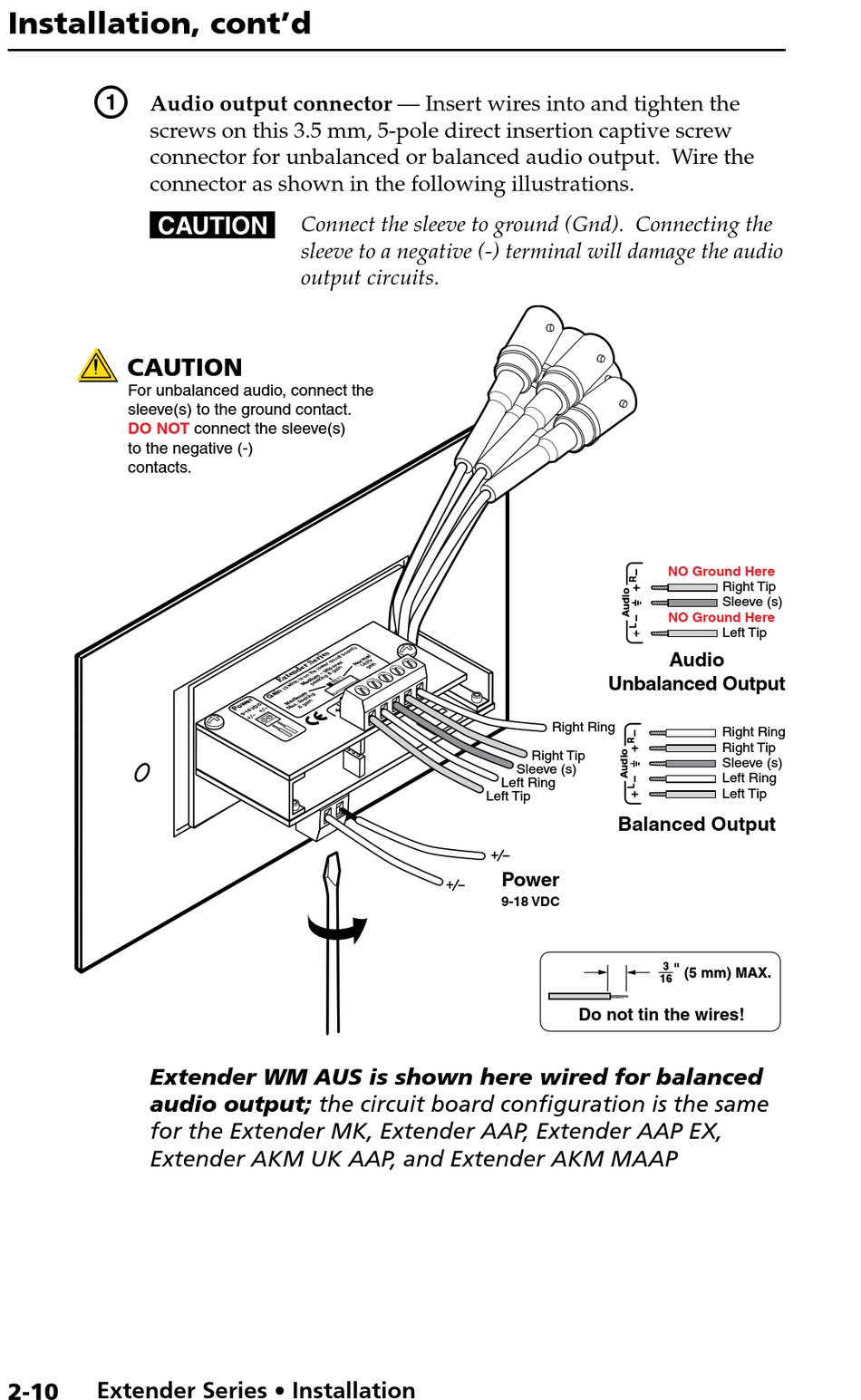

Audio output connector — Insert wires into and tighten the
screws on this 3.5 mm, 5-pole direct insertion captive screw
connector for unbalanced or balanced audio output. Wire the
connector as shown in the following illustrations.
C
CAUTION
For unbalanced audio, connect the
sleeve(s) to the ground contact.
DO NOT
to the negative (-)
contacts.
Extender WM AUS is shown here wired for balanced
audio output; the circuit board configuration is the same
for the Extender MK, Extender AAP, Extender AAP EX,
Extender AKM UK AAP, and Extender AKM MAAP
Extender Series • Installation
2-10
Connect the sleeve to ground (Gnd). Connecting the
sleeve to a negative (-) terminal will damage the audio
output circuits.
connect the sleeve(s)
Unbalanced Output
Right Ring
Right Tip
Sleeve (s)
Left Ring
Left Tip
Balanced Output
Power
9-18 VDC
Do not tin the wires!
NO Ground Here
Right Tip
Sleeve (s)
NO Ground Here
Left Tip
Audio
Right Ring
Right Tip
Sleeve (s)
Left Ring
Left Tip
