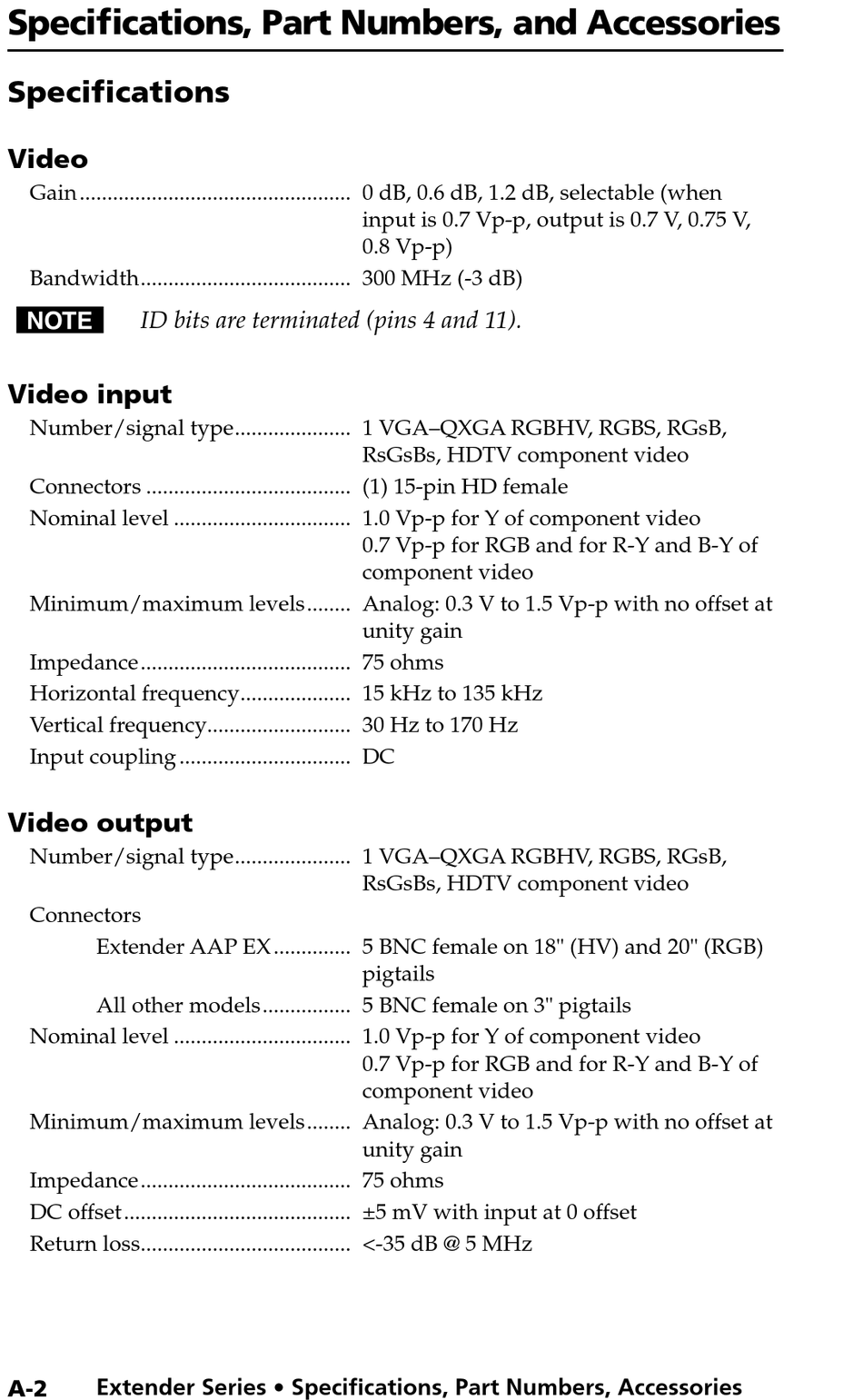

Specifications, Part Numbers, and Accessories
Specifications
Video
Gain ................................................. 0 dB, 0.6 dB, 1.2 dB, selectable (when
Bandwidth...................................... 300 MHz (-3 dB)
ID bits are terminated (pins 4 and 11).
N
Video input
Number/signal type..................... 1 VGA–QXGA RGBHV, RGBS, RGsB,
Connectors ..................................... (1) 15-pin HD female
Nominal level ................................ 1.0 Vp-p for Y of component video
Minimum/maximum levels........ Analog: 0.3 V to 1.5 Vp-p with no offset at
Impedance...................................... 75 ohms
Horizontal frequency.................... 15 kHz to 135 kHz
Vertical frequency.......................... 30 Hz to 170 Hz
Input coupling ............................... DC
Video output
Number/signal type..................... 1 VGA–QXGA RGBHV, RGBS, RGsB,
Connectors
Extender AAP EX .............. 5 BNC female on 18" (HV) and 20" (RGB)
All other models................ 5 BNC female on 3" pigtails
Nominal level ................................ 1.0 Vp-p for Y of component video
Minimum/maximum levels........ Analog: 0.3 V to 1.5 Vp-p with no offset at
Impedance...................................... 75 ohms
DC offset......................................... ±5 mV with input at 0 offset
Return loss...................................... <-35 dB @ 5 MHz
Extender Series • Specifications, Part Numbers, Accessories
A-2
input is 0.7 Vp-p, output is 0.7 V, 0.75 V,
0.8 Vp-p)
RsGsBs, HDTV component video
0.7 Vp-p for RGB and for R-Y and B-Y of
component video
unity gain
RsGsBs, HDTV component video
pigtails
0.7 Vp-p for RGB and for R-Y and B-Y of
component video
unity gain
