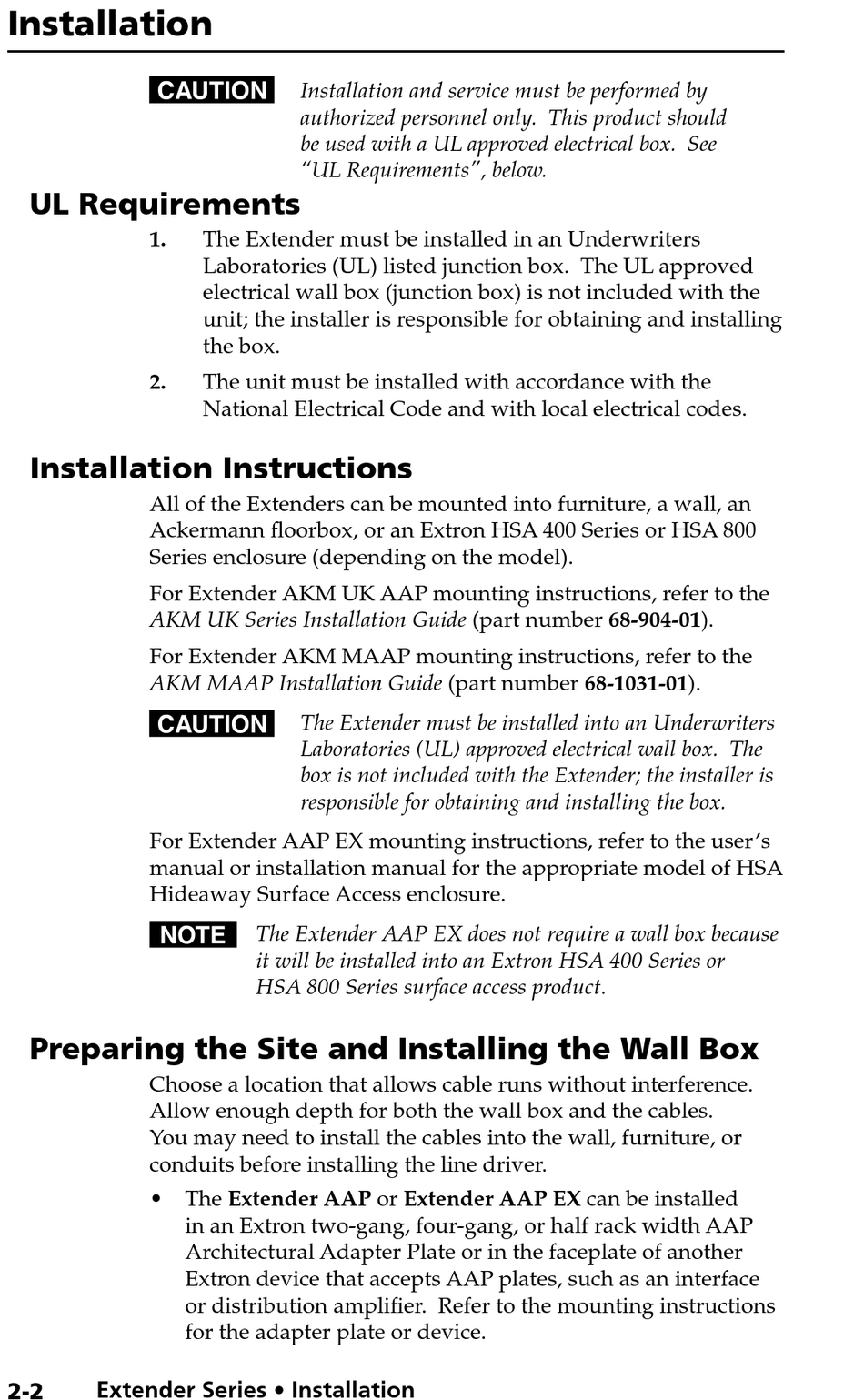

Installation
C

UL Requirements

1.
2.

Installation Instructions

All of the Extenders can be mounted into furniture, a wall, an
Ackermann floorbox, or an Extron HSA 400 Series or HSA 800
Series enclosure (depending on the model).
For Extender AKM UK AAP mounting instructions, refer to the
AKM UK Series Installation Guide (part number 68-904-01).
For Extender AKM MAAP mounting instructions, refer to the
AKM MAAP Installation Guide (part number 68-1031-01).
C
For Extender AAP EX mounting instructions, refer to the user's
manual or installation manual for the appropriate model of HSA
Hideaway Surface Access enclosure.
N

Preparing the Site and Installing the Wall Box

Choose a location that allows cable runs without interference.
Allow enough depth for both the wall box and the cables.
You may need to install the cables into the wall, furniture, or
conduits before installing the line driver.
• The Extender AAP or Extender AAP EX can be installed
Extender Series • Installation
2-2
Installation and service must be performed by
authorized personnel only. This product should
be used with a UL approved electrical box. See
"UL Requirements", below.
The Extender must be installed in an Underwriters
Laboratories (UL) listed junction box. The UL approved
electrical wall box (junction box) is not included with the
unit; the installer is responsible for obtaining and installing
the box.
The unit must be installed with accordance with the
National Electrical Code and with local electrical codes.
The Extender must be installed into an Underwriters
Laboratories (UL) approved electrical wall box. The
box is not included with the Extender; the installer is
responsible for obtaining and installing the box.
The Extender AAP EX does not require a wall box because
it will be installed into an Extron HSA 400 Series or
HSA 800 Series surface access product.
in an Extron two-gang, four-gang, or half rack width AAP
Architectural Adapter Plate or in the faceplate of another
Extron device that accepts AAP plates, such as an interface
or distribution amplifier. Refer to the mounting instructions
for the adapter plate or device.
