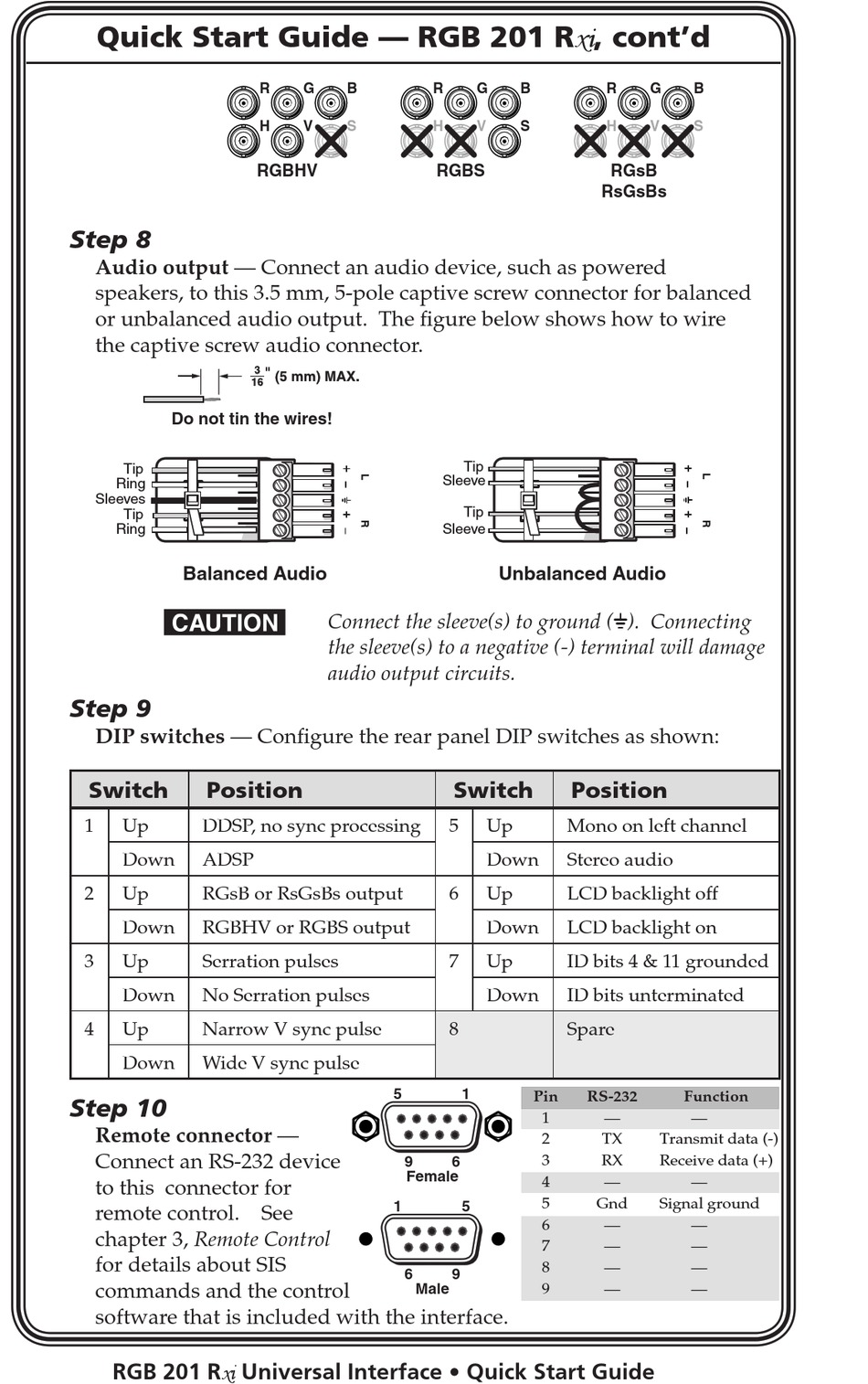

Quick Start Guide — RGB 201 Rxi, cont'd
Step 8
Audio output — Connect an audio device, such as powered
speakers, to this 3.5 mm, 5-pole captive screw connector for balanced
or unbalanced audio output. The figure below shows how to wire
the captive screw audio connector.
Do not tin the wires!
Tip
Ring
Sleeves
Tip
Ring
Balanced Audio
C
Step 9
DIP switches — Configure the rear panel DIP switches as shown:
Switch
Position
1
Up
DDSP, no sync processing
Down
ADSP
2
Up
RGsB or RsGsBs output
Down
RGBHV or RGBS output
3
Up
Serration pulses
Down
No Serration pulses
4
Up
Narrow V sync pulse
Down
Wide V sync pulse
Step 10
Remote connector —
Connect an RS-232 device
to this connector for
remote control. See
chapter 3, Remote Control
for details about SIS
commands and the control
software that is included with the interface.
RGB 201 Rxi Universal Interface • Quick Start Guide
R
G
B
H
V
S
RGBHV
Connect the sleeve(s) to ground ( ). Connecting
the sleeve(s) to a negative (-) terminal will damage
audio output circuits.
5
9
Female
1
6
Male
R
G
B
H
V
S
RGBS
Tip
Sleeve
Tip
Sleeve
Unbalanced Audio
Switch
Position
5
Up
Mono on left channel
Down
Stereo audio
6
Up
LCD backlight off
Down
LCD backlight on
7
Up
ID bits 4 & 11 grounded
Down
ID bits unterminated
8
Spare
1
Pin
RS-232
1
2
6
3
4
5
Gnd
5
6
7
8
9
9
R
G
B
H
V
S
RGsB
RsGsBs
Function
—
—
TX
Transmit data (-)
RX
Receive data (+)
—
—
Signal ground
—
—
—
—
—
—
—
—
