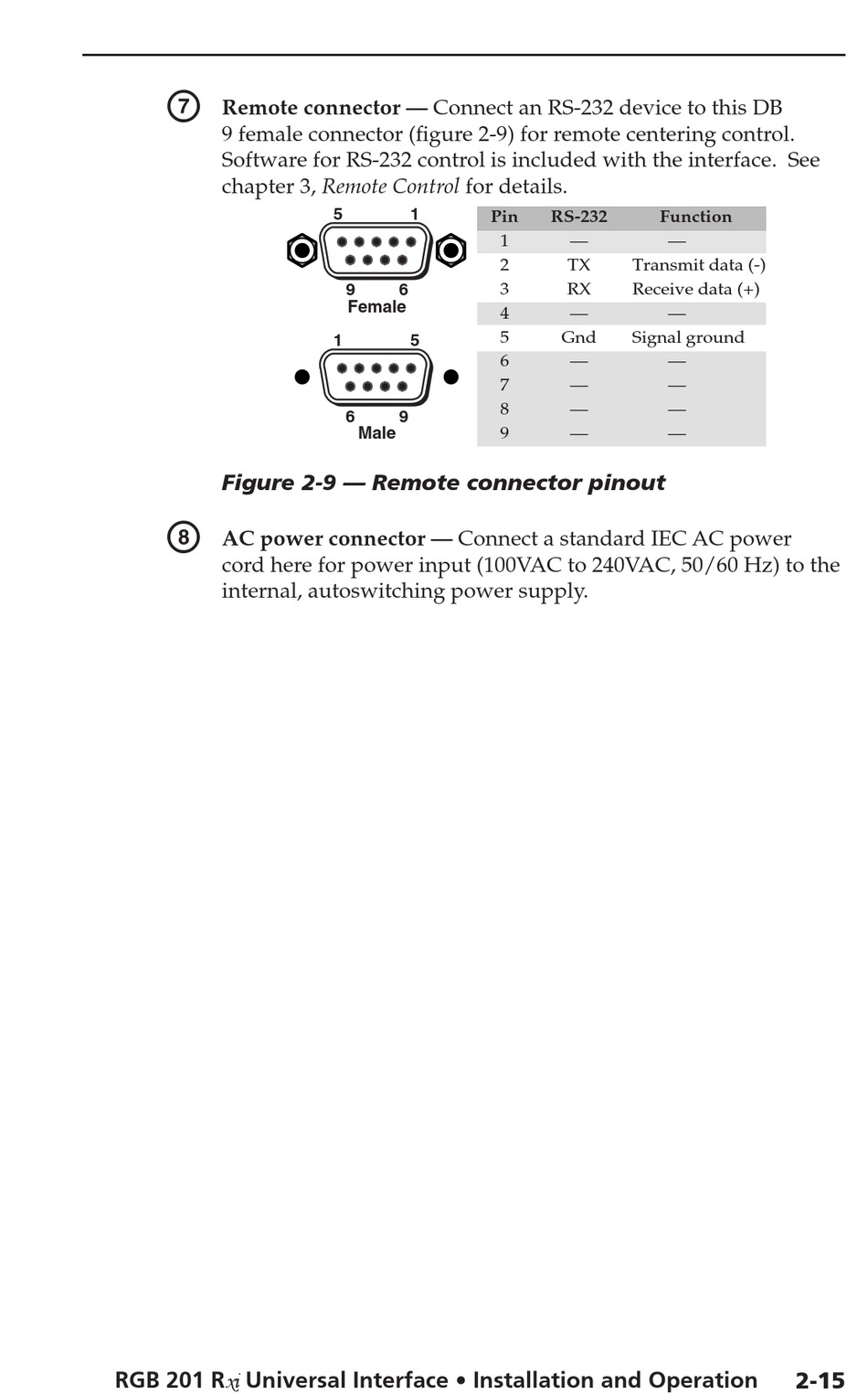

Remote connector — Connect an RS-232 device to this DB
9 female connector (figure 2-9) for remote centering control.
Software for RS-232 control is included with the interface. See
chapter 3, Remote Control for details.
Figure 2-9 — Remote connector pinout
h
AC power connector — Connect a standard IEC AC power
cord here for power input (100VAC to 240VAC, 50/60 Hz) to the
internal, autoswitching power supply.
RGB 201 Rxi Universal Interface • Installation and Operation
5
1
Pin
9
6
Female
1
5
6
9
Male
RS-232
Function
1
—
2
TX
Transmit data (-)
3
RX
Receive data (+)
4
—
5
Gnd
Signal ground
6
—
7
—
8
—
9
—
—
—
—
—
—
—
