Installation and Operation, cont'd
DVI 201 Rx Front Panel
DVI 201 A D Rx Front Panel
AUDIO OUT
13
PASS THRU
12

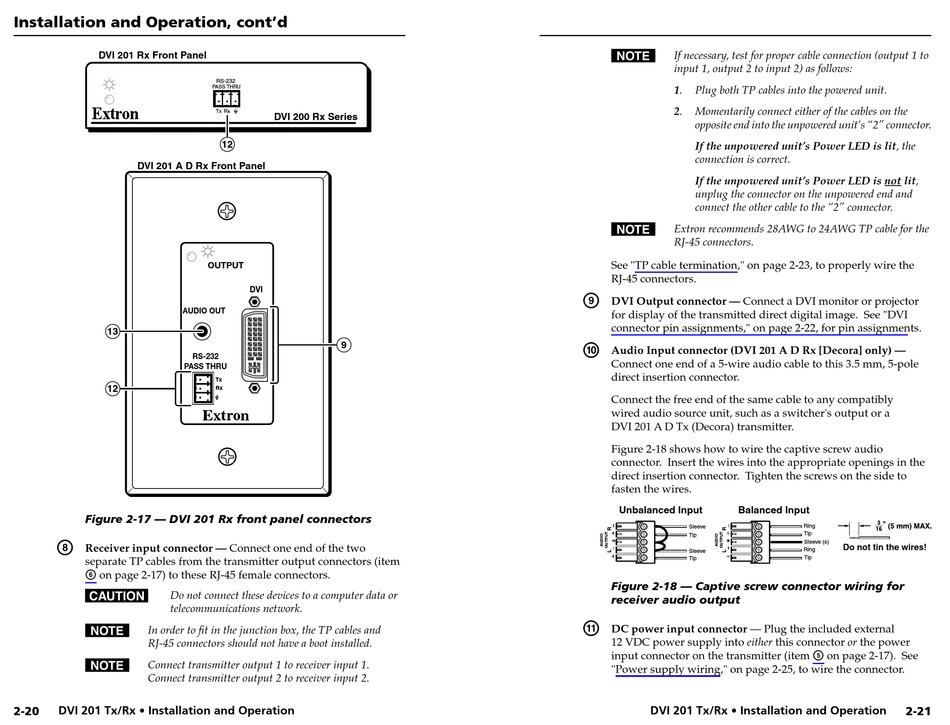

Figure 2-17 — DVI 201 Rx front panel connectors
h
Receiver input connector — Connect one end of the two
separate TP cables from the transmitter output connectors (item
f
on page 2-17) to these RJ-45 female connectors.
C Do not connect these devices to a computer data or
telecommunications network.
N In order to fit in the junction box, the TP cables and
RJ-45 connectors should not have a boot installed.
N Connect transmitter output 1 to receiver input 1.
Connect transmitter output 2 to receiver input 2.
DVI 201 Tx/Rx • Installation and Operation
2-20
RS-232
PASS THRU
Tx Rx
DVI 200 Rx Series
12
OUTPUT
DVI
9
RS-232
Tx
Rx
N If necessary, test for proper cable connection (output 1 to
input 1, output 2 to input 2) as follows:
1.
Plug both TP cables into the powered unit.
2. Momentarily connect either of the cables on the
opposite end into the unpowered unit's "2" connector.
If the unpowered unit's Power LED is lit, the
connection is correct.
If the unpowered unit's Power LED is not lit,
unplug the connector on the unpowered end and
connect the other cable to the "2" connector.
N Extron recommends 28AWG to 24AWG TP cable for the
RJ-45 connectors.
See "TP cable termination," on page 2-23, to properly wire the
RJ-45 connectors.
i
DVI Output connector — Connect a DVI monitor or projector
for display of the transmitted direct digital image. See "DVI
connector pin assignments," on page 2-22, for pin assignments.
j
Audio Input connector (DVI 201 A D Rx [Decora] only) —
Connect one end of a 5-wire audio cable to this 3.5 mm, 5-pole
direct insertion connector.
Connect the free end of the same cable to any compatibly
wired audio source unit, such as a switcher's output or a
DVI 201 A D Tx (Decora) transmitter.
Figure 2-18 shows how to wire the captive screw audio
connector. Insert the wires into the appropriate openings in the
direct insertion connector. Tighten the screws on the side to
fasten the wires.
Unbalanced Input Balanced Input
Sleeve
Tip
Sleeve
Tip
Figure 2-18 — Captive screw connector wiring for
receiver audio output
k
DC power input connector — Plug the included external
12 VDC power supply into either this connector or the power
input connector on the transmitter (item
"Power supply wiring," on page 2-25, to wire the connector.
DVI 201 Tx/Rx • Installation and Operation
Ring
Tip
Sleeve (s)
Do not tin the wires!
Ring
Tip
e
on page 2-17). See
2-21
