DFX 100 Series • Setup Guide

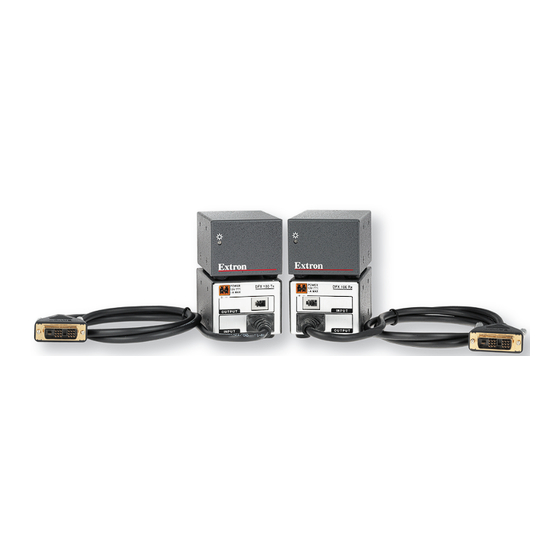

The Extron DFX 100 Series consists of a transmitter (DFX 100 Tx) and receiver (DFX 100 Rx)
that use one multimode fiber optic cable to extend a DVI-D signal up to 984 feet (300 m).
This guide provides basic instructions for an experienced installer to set up and operate the
DFX 100 (for full instructions see the DFX 100 Series User Guide, at www.extron.com).
Installation
Step 1 — Mounting
Mount the DFX 100 Tx close to the DVI source and the DFX 100 Rx close to the DVI display
device. See the DFX 100 Series User Guide for all mounting options. Follow the instructions
provided with the appropriate installation kit.
Step 2 — Cable Connections
DFX 100 Series Front Panel
a
Extron
Extron
1. Connect one of the provided 12 VDC power supplies to the rear panel captive screw
connectors of the transimtter and the other to the receiver (
ATTENTION: Before connecting power to the DFX 100 Tx or Rx, see the attention
box in the "Power Supply" section of the DFX 100 Series User Guide for important
information about power supplies.
NOTES:
• When the units receive power but no input signals, the front panel LED (
amber.
• When the transmitter receives power and a DVI input signal, the front panel LED lights
green
• When the receiver receives power and a fiber optic input signal, the front panel LED
lights green.
2. Connect the DFX 100 Tx output (
cable (not provided).
WARNING:
invisible light (Class 1 rated), which may be harmful and dangerous to the eyes; use
with caution. Do not look into the rear panel fiber optic cable connector or into the
fiber optic cable itself. Plug the attached dust cap into the optical transceiver when
the fiber optic cable is unplugged.
3. Connect the DVI display to the DVI output connector of the DFX 100 Rx (
display.
