4.7.3 Ethernet Panel Description
Each Ethernet module is equipped with two LEDs that indicate link/activity status information. The
LED will be solid for ports with link, and will blink for activity. The diagram in Figure 25 highlights
the port and the associated link/activity LED.

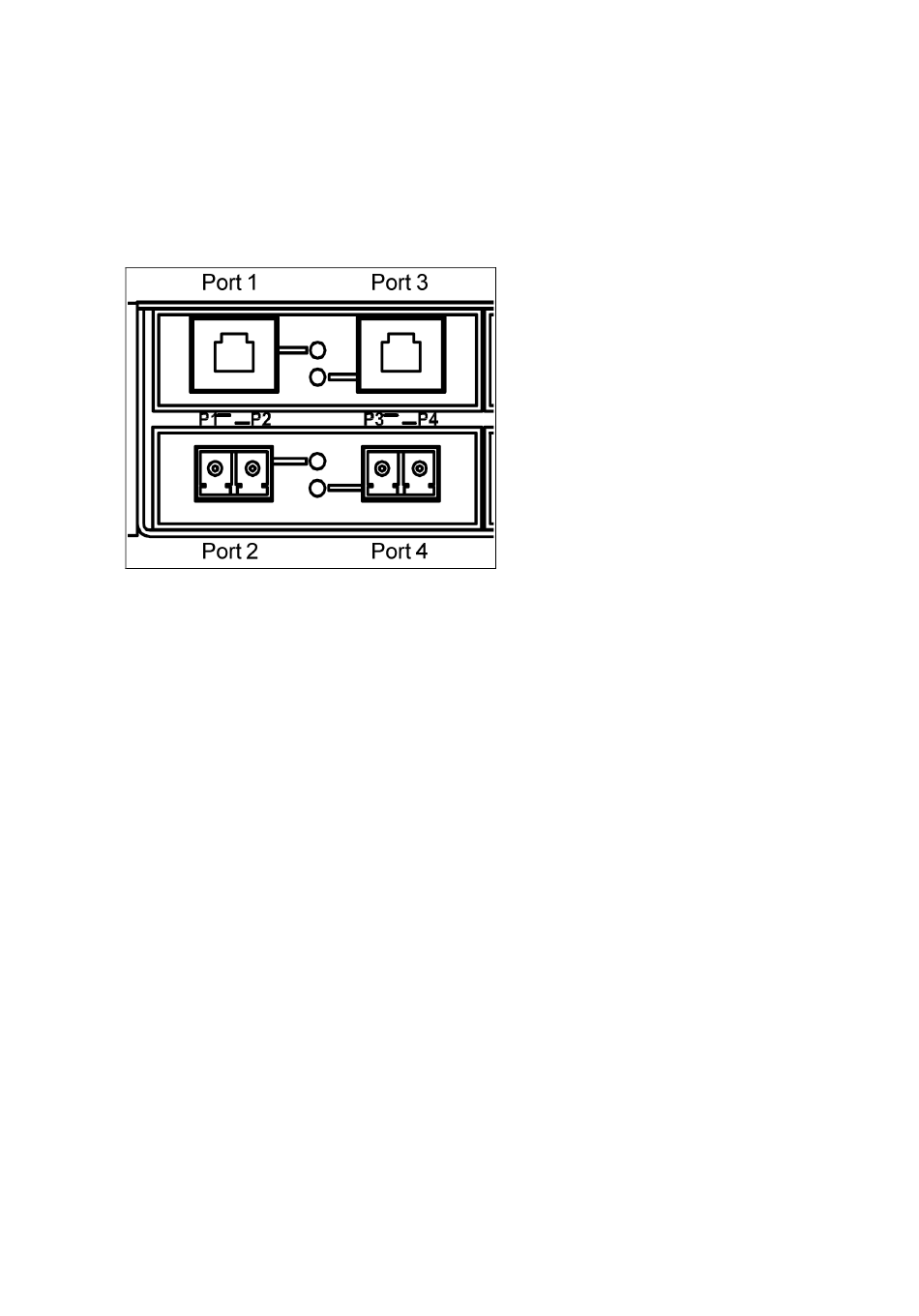

Figure 25: Ethernet panel LED description
28
©
2008 RuggedCom Inc. All rights reserved
Rev104
