4.2.3 Dual Power Supplies Wiring Examples

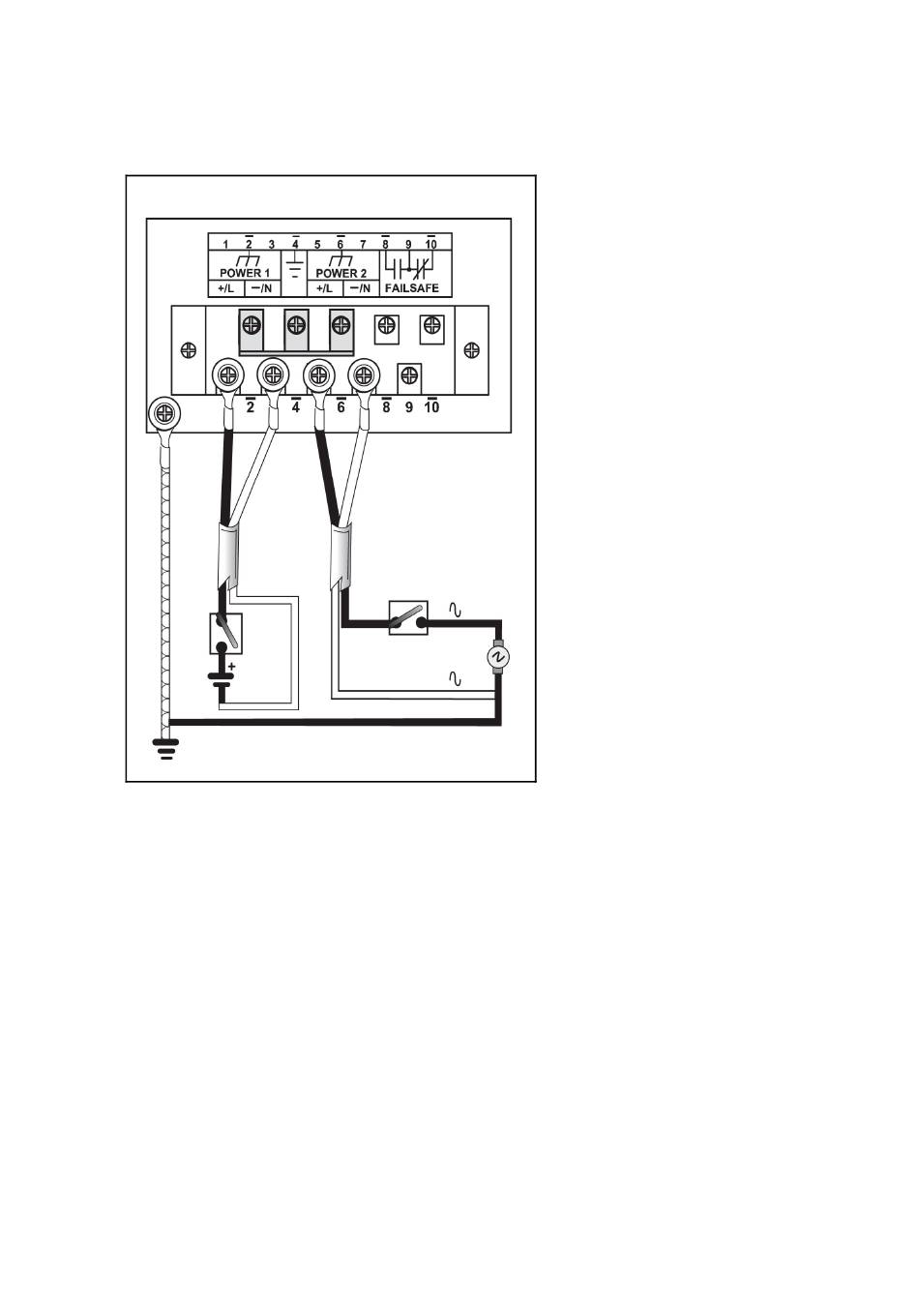

Figure 10: DC And AC power supply wiring examples

NOTES:

1. 88-300VDC rated equipment: A 300VDC appropriately rated circuit breaker must be

installed within 3m of unit.

2. 100-240VAC rated equipment: A 250VAC appropriately rated circuit breaker must be

installed within 3m of unit.

3. A circuit breaker is not required for 12, 24 or 48 VDC rated power supplies.

4. Separate circuit breakers must be installed and separately identified.

5. Equipment must be installed according to the applicable country wiring codes.

All manuals and user guides at all-guides.com

Rev104
