4 Installation

The RS416 has been designed with maximum mounting and display flexibility. Customers can

order an RS416 that can be mounted in a standard 19" rack, 1" DIN Rail, or directly onto a panel.

For rack mount installations, the RS416 can be ordered with connectors on the front of the unit, or

located on the rear of the chassis to allow for all data and power cabling to be installed and

connected at the rear of the rack. See Figure 2 for rack mount orientation examples.

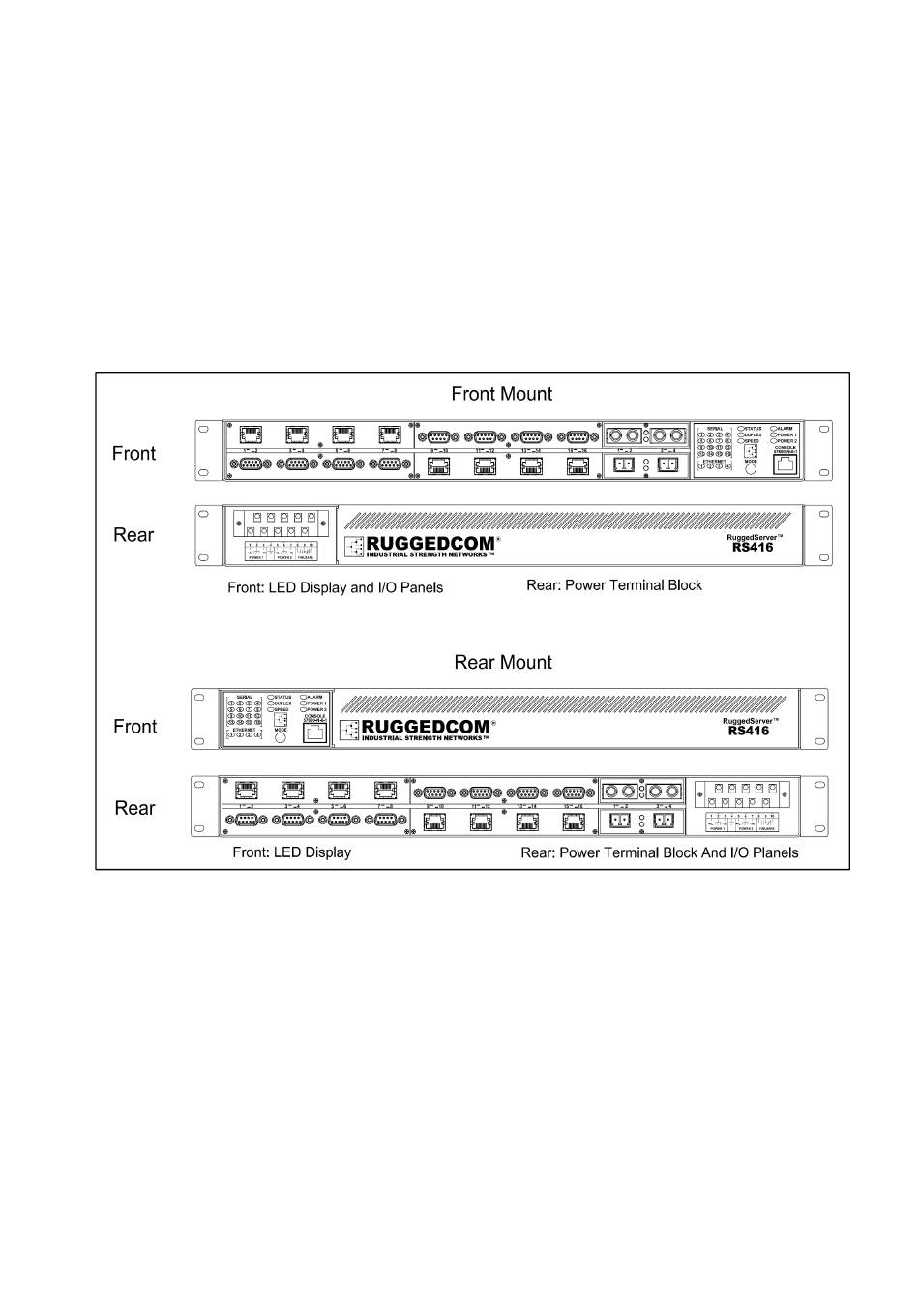

Figure 2: RS416 Series Rack mount chassis orientation options – Front and rear mount.

Rev104
