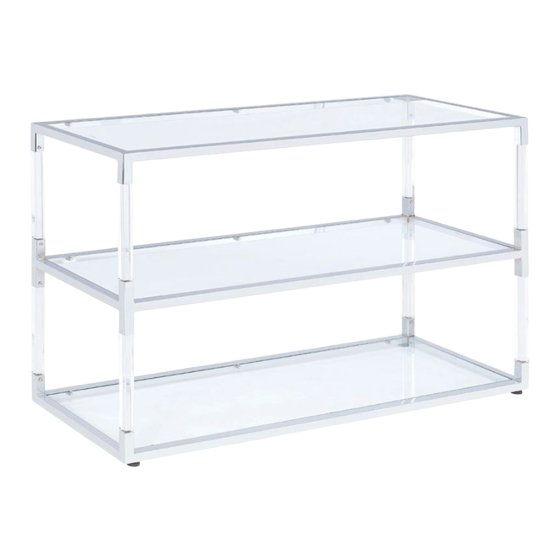

ITEM NO.91245 TV STAND
A
TOP FRAME
1PC
D
ACRYLIN STRETCHER
8PCS
1
BOLT 1/4" X 1/2"
16PCS
4
L BRACKET
4PCS
7
PLASTIC STRAP
2PCS
ASSEMBLY
MIDDLE FRAME
GLASS
LEVELER
WALL ANCHOR
ALLEN WRENCH
INSTRUCTIONS
B
1PC
E
3PCS
2
4PCS
5
2PCS
8
1PC
C
BOTTOM FRAME
1PC
F
3
GLASS PAD
18PCS
6
SCREW
2PCS
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Raegan 91245 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acme Furniture Raegan 91245

Summary of Contents for Acme Furniture Raegan 91245

  • Page 1 ITEM NO.91245 TV STAND ASSEMBLY INSTRUCTIONS TOP FRAME MIDDLE FRAME BOTTOM FRAME ACRYLIN STRETCHER GLASS 8PCS 3PCS BOLT 1/4" X 1/2" LEVELER GLASS PAD 16PCS 4PCS 18PCS L BRACKET WALL ANCHOR SCREW 4PCS 2PCS 2PCS PLASTIC STRAP ALLEN WRENCH 2PCS...
  • Page 2 *** Do not tighten screws & bolts until the entire unit is completely assembled. *** STEP 1 Attach acrylic stretcher (D) to top frame (A) and middle frame (B) by using bolt (1). Add L bracket (4) when using bolt (1) to attach acrylic stretcher (D) to top frame (A) as shown.
  • Page 3 STEP 3 Attach glass pads (3) to each frames (A, B, C), and place the glass (E) on the assembled unit as shown. STEP 4 Wall Select a location where you want the TV stand mounted. Mark on the wall the two locations where the wall anchor (5) will be placed.
  • Page 4 STEP 5 Insert each end of the plastic strap (7) into L bracket (4), then secure and tighten. Wall...
