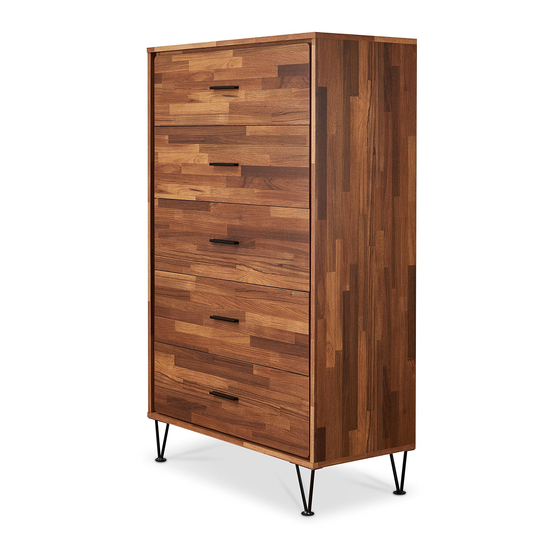

5-drawers chest

Download this manual

ASSEMBLY INSTRUCTION FOR ACME FURNITURE

MODEL#97362/97364

Thank you for purchasing the quality product. Be sure to check all packing material carefully for small parts which

may have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware.

Compare with all parts are present. If any part(s) are missing or damaged, please contact your local furniture dealer.

For eﬃcient and speedy service, please indicate the model number and code letter of part(s) needed.

***Do not fully tighten screws until fully assembled.***

Need help?

Do you have a question about the 97362 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION FOR ACME FURNITURE MODEL#97362/97364 Thank you for purchasing the quality product. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware.
Page 3 Attention Some number parts listed on the instruction sheet may not be in parts bag as they may already be assembled. Carefully check parts and packing materials prior to ordering replacements.
Page 4 Screw Hole Screw Hole 2nd Hole Push runner to see screw holes on the other end...
Page 5 Insert in as arrow direction to specify...
Page 10 Extend the two outer slides of the runners so that they could align with the sides of the drawer. Make sure the pre-drilled holes from the drawer align with the screw holes of the outer slides. Secure two screws from the inside of the drawer using a Phillips screwdriver to tighten them to the outer slides.
Page 11 Wall For safety,please use the strap to secure the uniton the wall. ASSEMBLY IS COMPLETED. Make sure the product is rested on a ﬂat surface and does not feel loose or wobbly. If it does, double check that the bolts/screws are secured and properly tightened.
