ASSEMBLY INSTRUCTION FOR ACME FURNITURE
Thank you for purchasing the quality product. Be sure to check all packing material carefully for small parts which
may have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware.
Compare with all parts are present. If any part(s) are missing or damaged, please contact your local furniture dealer.
For efficient and speedy service, please indicate the model number and code letter of part(s) needed.
***Do not fully tighten screws until fully assembled.***
MODEL#97787

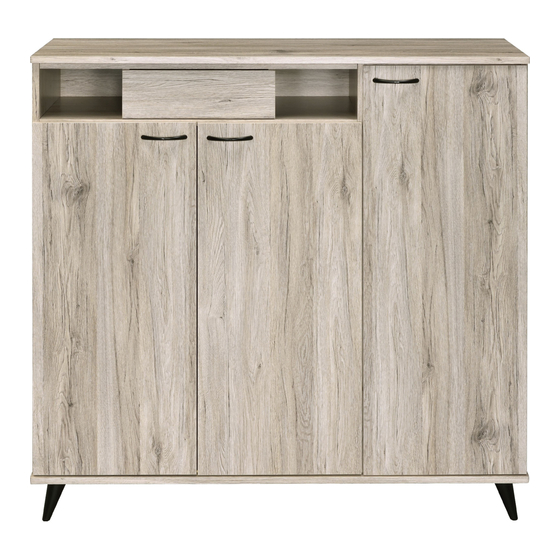

SHOE CABINET
DIMENSIONS
Width - 47.24"
Depth - 15.75"
Height - 50.08"
Advertisement
Related Manuals for Acme Furniture 97787
Summary of Contents for Acme Furniture 97787
- Page 1 ASSEMBLY INSTRUCTION FOR ACME FURNITURE MODEL#97787 Thank you for purchasing the quality product. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware.
-
Page 2: Parts List
97787 PARTS LIST Large support Large door Drawer head Small support Left side Drawer left Small left side Right side Drawer right Small right side Drawer back Large layer Bottom Drawer bottom Small layer Middle Right back Left door Middle top... -
Page 3: Hardware List
HARDWARE LIST Hinge ø26mm*3/8 Cam bolt 7*35*12.5mm Hinge screw Cam lock 15*12mm 6#*1/2" Fixative plate Dowel 8*30mm Wood screw 8#*1-3/4" Wood screw 3*19mm Coarse screw 7*11*50mm Dowel 8*20mm Slide rail 17*310mm Foot #6*1/2" Wood screw Support foot Fixing screw T-head screw M4*12mm 4*12mm Shelf pin... - Page 4 ASSEMBLY INSTRUCTIONS Step 1.
- Page 5 ASSEMBLY INSTRUCTIONS Step 2. Push runner to see screw holes on the other end. 2nd Hole Screw Hole...
- Page 6 ASSEMBLY INSTRUCTIONS Step 3. hole usage...
- Page 7 ASSEMBLY INSTRUCTIONS Step 4. Insert in as arrow direction to specify...
- Page 8 ASSEMBLY INSTRUCTIONS Step 5. Unfinished...
- Page 9 ASSEMBLY INSTRUCTIONS Step 6.
- Page 10 ASSEMBLY INSTRUCTIONS Step 7.
- Page 11 ASSEMBLY INSTRUCTIONS Step 8.
- Page 12 ASSEMBLY INSTRUCTIONS Step 9. hole usage Extend the two outer slides of the runners so that they could align with the sides of the drawer. Make sure the pre-drilled holes from the drawer align with the screw holes of the outer slides. Secure two screws from the inside of the drawer using a Phillips screwdriver to tighten...
- Page 13 ASSEMBLY INSTRUCTIONS Step 10. ASSEMBLY IS COMPLETED. Make sure the product is rested on a flat surface and does not feel loose or wobbly. If it does, double check that the bolts/screws are secured and properly tightened.
