ASSEMBLY INSTRUCTION FOR ACME FURNITURE
Thank you for purchasing the quality product. Be sure to check all packing material carefully for small parts which
may have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware.
Compare with all parts are present. If any part(s) are missing or damaged, please contact your local furniture dealer.
For efficient and speedy service, please indicate the model number and code letter of part(s) needed.
***Do not fully tighten screws until fully assembled.***
MODEL#97783

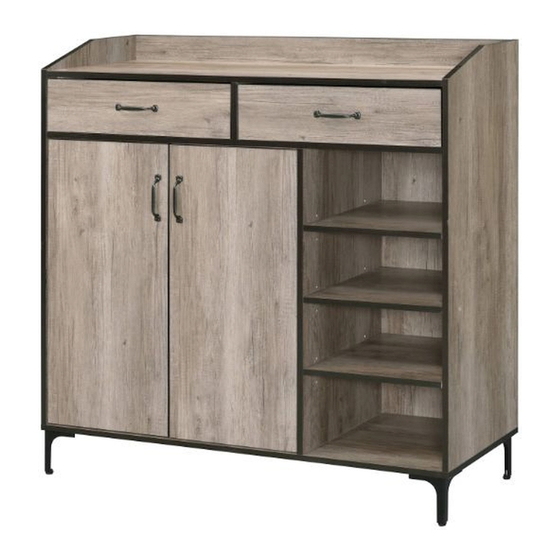

SHOE CABINET
DIMENSIONS
Width - 47.16"
Depth - 16.57"
Height - 48.16"
Advertisement
Related Manuals for Acme Furniture 97783
Summary of Contents for Acme Furniture 97783
- Page 1 ASSEMBLY INSTRUCTION FOR ACME FURNITURE MODEL#97783 Thank you for purchasing the quality product. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware.
-
Page 2: Parts List
97783 PARTS LIST Large layer Drawer Left Drawer Right Small layer Bottom Drawer support Left side Left door Drawer bottom Right side Right door Top back Top middle Middle top Left back Middle Drawer head Right back Top support Drawer back... -
Page 3: Hardware List
HARDWARE LIST Hinge ø26mm*insert Cam bolt 7*35*12.5mm Hinge screw 6#*1/2" Cam lock 15*12mm Fixative plate Dowel 8*30mm Wood screw 3*19mm Wood screw 8#*1-1/2" Blocking screw 4*10mm Coarse screw 7*11*50mm Foot Slide rail 17*310mm T-head screw 4*16mm #6*1/2" Wood screw Support foot Fixing screw M4*12mm T-head screw... - Page 4 ASSEMBLY INSTRUCTIONS Step 1. Screw Hole 2nd Hole Push runner to see screw holes on the other end.
- Page 5 ASSEMBLY INSTRUCTIONS Step 2. Push runner to see screw holes on the other end. 2nd Hole 3nd Hole 180° Screw Hole...
- Page 6 ASSEMBLY INSTRUCTIONS Step 3. hole usage...
- Page 7 ASSEMBLY INSTRUCTIONS Step 4. Insert in as arrow direction to specify...
- Page 8 ASSEMBLY INSTRUCTIONS Step 5.
- Page 9 ASSEMBLY INSTRUCTIONS Step 6.
- Page 10 ASSEMBLY INSTRUCTIONS Step 7.
- Page 11 ASSEMBLY INSTRUCTIONS Step 8.
- Page 12 ASSEMBLY INSTRUCTIONS Step 9. hole usage...
- Page 13 ASSEMBLY INSTRUCTIONS Step 10. Extend the two outer slides of the runners so that they could align with the sides of the drawer. Make sure the pre-drilled holes from the drawer align with the screw holes of the outer slides. Secure two screws from the inside of the drawer using a Phillips screwdriver to tighten them to the...
