Summary of Contents for Acme Furniture 92990

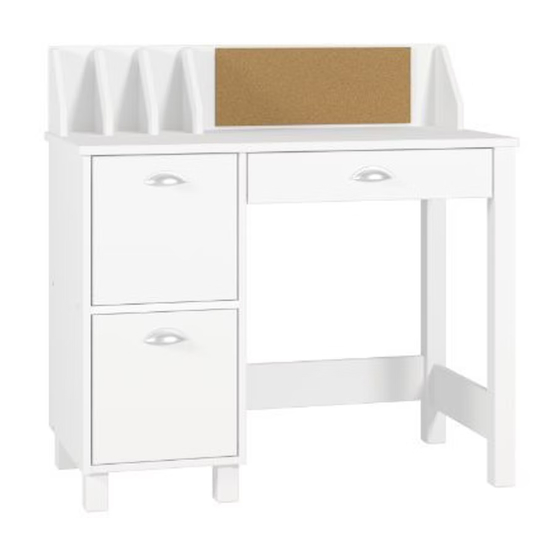

  • Page 3 ASSEMBLY INSTRUCTIONS ACME 92990 - Desk Thank you for purchasing this quality product. Be sure to check all packing material carefully, for small parts which may have come loose inside the carton during shipment. Separate, identify and count all parts and hardware.
  • Page 4 Part list: 92990 - Kids Desk Manufacturer Label Blue Black Blue (x2)
  • Page 5 10 x 50 Wood dowel 1 ³⁄ " Wooden Dowel (8 x 30mm) 2 ³⁄ " Bolt (7 x 70mm) 2" Bolt (7 x 50mm) 2" Bolt (5 x 50mm) Ø6,0 x 10 Screw ³⁄ " Screw (6 x 10mm) ³⁄...
  • Page 6 Side Parts and Crossbars Insert wooden dowels (A) into the holes, as shown in the diagram. Blue (x4) 8 x 30 Wood dowel 1 ³⁄ " Wooden Dowel Crossbars Attach crossbars 3 on sides 1 and 2 with bolts (D) using the allen wrench (O), as shown in the diagram.

  • Page 7: Support Feet

    Support feet Insert wooden dowels (A) into the holes, as shown in the diagram. Fix the plastic foot (P) on the support feet 4 with hammer. (x4) 8 x 30 Wood dowel 1 ³⁄ " Wooden Dowel Plastic Foot Support feet Fix the support feet 4 on lower crossbars 3 with bolts (C) using the allen wrench (N) .
  • Page 8 SET OF METAL GLIDES FOR THE DRAWERS - The glides (K) are used on panels side and has a left and right pieces. - The glides (L) are used on drawers side, also has a left and right pieces. (x3) (x3) (x3) (x3)
  • Page 9 Metal Glides Attach the metal glides (K) on side 2 with screws (F). The wheel to the front Blue Pre-drilled holes Ø6,0 x 10 Screw ³⁄ " Screw Metal Glides 13 ³⁄ " Crossbars Insert wooden dowels (A) into the holes, as shown in the diagram. PLEASE ASSEMBLE ON A FLAT SURFACE.
  • Page 10 Back Crossbars Attach back crossbars 5 on the side panel 2 with bolts (C), usisng the allen wrench (N), as shown in the diagram. Blue Allen wrench 7,0 x 50 Bolt 2" Bolt Ø13 Post and Crossbars Insert wooden dowels (A) and cam bolts (H) into the holes, as shown in the diagram. Attach part 10 on upper crossbar 8, using screws (E).
  • Page 11 Crossbars and Posts Attach crossbars 8 and 9 on post 6 with bolts (B), using the allen wrench (N) and then on post 7 with cam locks (I), as shown in the diagram. Black PLEASE Blue ASSEMBLE ON A FLAT SURFACE. USE A CARPET OR THE PRODUCT 7,0 x 70 Bolt CARTON TO LINE THE FLOOR.

  • Page 12: Notice Board

    Crossbars Attach crossbars 5 on post 6 with bolts (B), using the allen wrench (N). Blue Black Blue 7,0 x 70 Bolt Allen wrench 2 ³⁄ " Bolt Ø13 Organizer Insert wooden dowels (A) into the holes, as shown in the diagram. Attach divisions 12 on back panel 11 with bolts (D) using the allen wrench (O).
  • Page 13 Insert cam bolts (H) into the holes, as shown in the diagram. INSIDE PLEASE ASSEMBLE ON A FLAT SURFACE. USE A CARPET OR THE PRODUCT CARTON TO LINE THE FLOOR. Cam Bolt Parafuso Minifix Desk Top Attach the organizer on top 13 with bolts (D) using the allen wrench (O). Notice Board Allen wrench...
  • Page 14 Attach the top 13 to the desk structure, tting the wooden dowels (A) and cam bolts (H) into the pre-drilled holes. Pre-drilled holes Be careful to not damage! Fix the top 13 to the desk structure, using cam locks (I), locking with Phillips screwdriver, according the detail 1.

  • Page 15: Back Panel

    Back Panel Attach the back panel 14 on the sides of desk, using nails (J) and a hammer. Manufacturer Label ³⁄ " Nail High Drawer Components Insert wooden dowels (A) and cam bolts (H) into the holes, as shown in the diagram. (x2) BACK PART (x2)
  • Page 16 High Drawers Attach drawer sides 15 on the drawer front 16 with cam locks (I). Insert drawer bottom 17, as shown in the diagram. Attach back side 18 on the drawer sides 15, using cam locks (I) (x2) BOTTOM PART Groove BACK PART inside...
  • Page 17 Low Drawer Components Insert wooden dowels (A) and cam bolts (H) into the holes, as shown in the diagram. (x2) 8 x 30 Wood dowel Cam Bolt 1 ³⁄ " Wooden Dowel Parafuso Minifix Low Drawer Attach drawer sides 19 on the drawer front 20 with cam locks (I). Insert drawer bottom 21, as shown in the diagram.
  • Page 18 Low Drawer Fix the knob (M) on drawer front 20 with screws (G). Then, attach metal glides (L) on drawer sides 19 using screws (F) . The wheel to the back S I D FRONT DRAWER SIDE PART Pre-drilled holes BACK PART Ø6,0 x 10 Screw PZ 48...
