Summary of Contents for Acme Furniture 97366

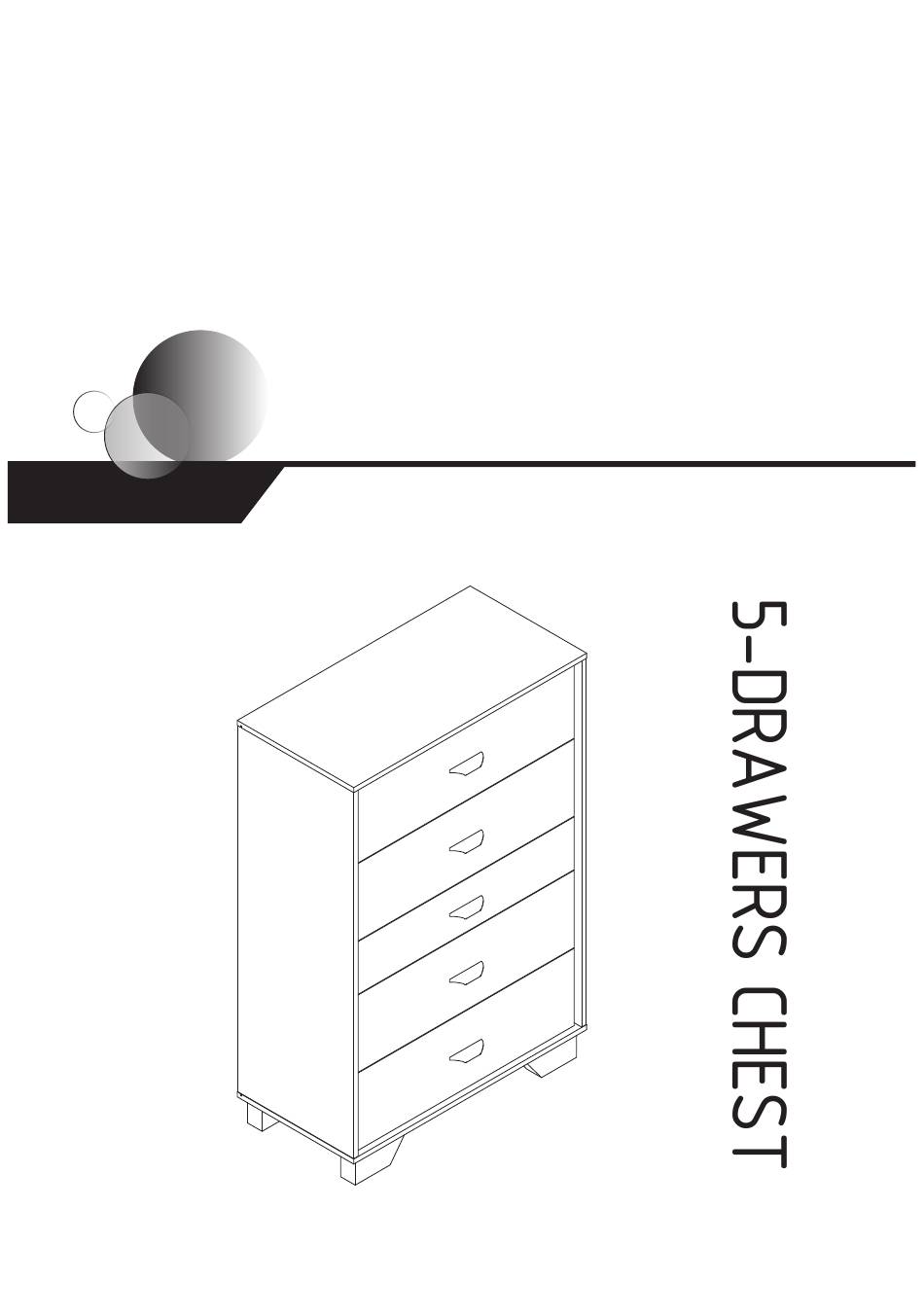

- Page 1 ASSEMBLY INSTRUCTIONS...

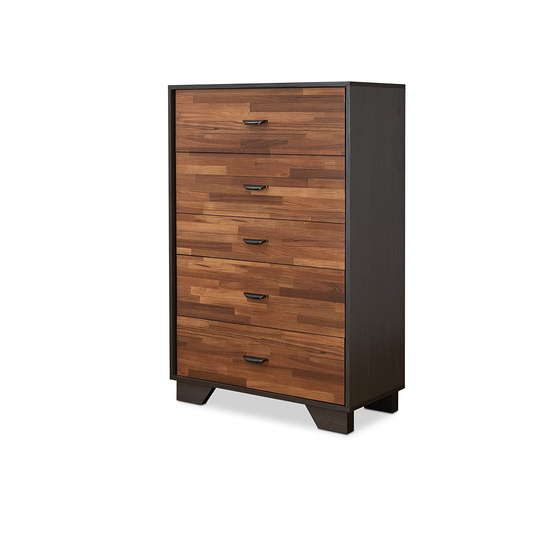

- Page 2 5-DRAWERS CHEST DIMENSIONS Width - 31.5" Depth - 15.75" Height - 47.24" PARTS LIST HARDWARE LIST...
- Page 3 ASSEMBLY INSTRUCTIONS Step 1. 2nd Hole Push runner to see screw holes on the other end...
- Page 4 ASSEMBLY INSTRUCTIONS Step 2. Insert in as arrow direction to specify...
- Page 5 ASSEMBLY INSTRUCTIONS Step 3.
- Page 6 ASSEMBLY INSTRUCTIONS Step 4.
- Page 7 ASSEMBLY INSTRUCTIONS Step 5. Extend the two outer slides of the runners so that they could align with the sides of the drawer. Make sure the pre-drilled holes from the drawer align with the screw holes of the outer slides. Secure two screws from the inside of the drawer using a Phillips screwdriver to tighten them to the outer slides.
