ASSEMBLY INSTRUCTION FOR ACME FURNITURE

Thank you for purchasing the quality product. Be sure to check all packing material carefully for small parts which

may have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware.

Compare with all parts are present. If any part(s) are missing or damaged, please contact your local furniture dealer.

For efﬁcient and speedy service, please indicate the model number and code letter of part(s) needed.

***Do not fully tighten screws until fully assembled.***

MODEL#97781

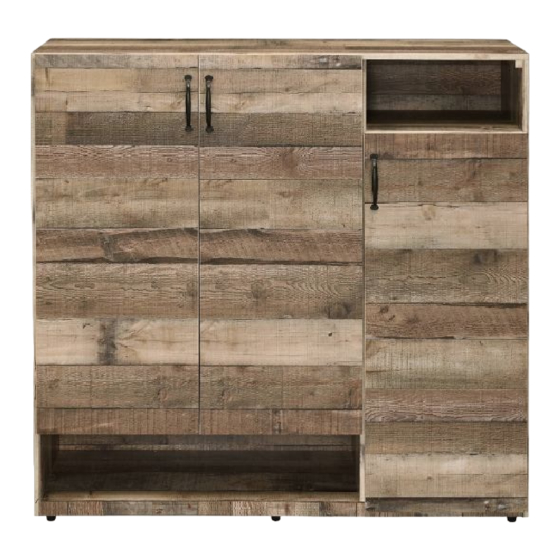

SHOE CABINET

DIMENSIONS

Width - 47.63"

Depth - 15.88"

Height - 47.83"

Need help?

Do you have a question about the 97781 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION FOR ACME FURNITURE MODEL#97781 Thank you for purchasing the quality product. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware.
Page 2: Parts List
97781 PARTS LIST Left top Middle door Right top Right door Bottom Large layer Left side Left back Right side Small layer Right back Front support Back support Middle Left door...
Page 3: Hardware List
HARDWARE LIST Fixative plate Cam bolt 7*35*12.5mm Cam lock 15*12mm Wood screw 3*19mm Dowel Foot nail 8*30mm Vent cap 60mm*66mm*3mm Wood screw 8#*1-3/4" Glue 6#*1/2" Coarse screw 7*11*50mm Shelf pin Allen wrench 4.9*16mm Handle Handle screw 10*9mm Hinge ø26mm*3/8 Hinge screw 6#*1/2"...
Page 4 ASSEMBLY INSTRUCTIONS Step 1.
Page 5 ASSEMBLY INSTRUCTIONS Step 2. 180°...
Page 6 ASSEMBLY INSTRUCTIONS Step 3. hole usage short long...
Page 7 ASSEMBLY INSTRUCTIONS Step 4. Insert in as arrow direction to specify...
Page 8 ASSEMBLY INSTRUCTIONS Step 5.
Page 9 ASSEMBLY INSTRUCTIONS Step 6.
Page 10 ASSEMBLY INSTRUCTIONS Step 7. hole usage...
Page 11 ASSEMBLY INSTRUCTIONS Step 8. ASSEMBLY IS COMPLETED. Make sure the product is rested on a ﬂat surface and does not feel loose or wobbly. If it does, double check that the bolts/screws are secured and properly tightened.
