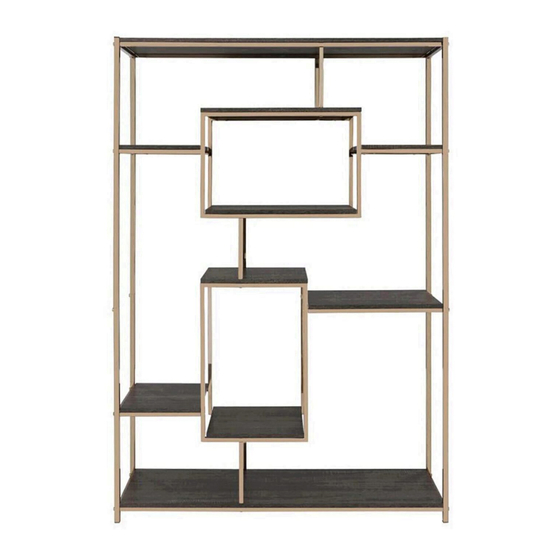

ITEM NO. 92655 BOOKSHELF
A
UPPER PANEL
2PCS
E
MIDDLE FRAME
2PCS
I
STRETCHER
6PCS
M
WOOD SHELF
500 x 400mm
1PC
ASSEMBLY
B
UNDER LEFT PANEL
1PC
F
STRETCHER
4PCS
J
WOOD SHELF
1200 x 400mm
2PCS
N
WOOD SHELF
400 x 400mm
1PC
INSTRUCTIONS
C
UNDER RIGHT PANEL
1PC
G
STRETCHER
2PCS
K
WOOD SHELF
600 x 400mm
1PC
O
WOOD SHELF
364 x 400mm
1PC
D
CONNECT FRAME
2PCS
H
STRETCHER
2PCS
L
WOOD SHELF
564 x 400mm
1PC
P
WOOD SHELF
300 x 400mm
3PCS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Acme Furniture Scaola 92655
Summary of Contents for Acme Furniture Scaola 92655
- Page 1 ITEM NO. 92655 BOOKSHELF ASSEMBLY INSTRUCTIONS UPPER PANEL UNDER LEFT PANEL UNDER RIGHT PANEL CONNECT FRAME 2PCS 2PCS MIDDLE FRAME STRETCHER STRETCHER STRETCHER 2PCS 4PCS 2PCS 2PCS WOOD SHELF WOOD SHELF WOOD SHELF STRETCHER 1200 x 400mm 600 x 400mm 564 x 400mm 6PCS 2PCS...
- Page 2 BOLT 1/4" X 1-1/2" BOLT 1/4" X 1/2" BOLT 1/4" X 2" SHAFT SLEEVES 16PCS 2PCS 16PCS 2PCS BOLT COVER END CAP L BRACKET WALL ANCHOR 20PCS 8PCS 2PCS 2PCS SCREW PLASTIC STRAP ALLEN KEY 46PCS 2PCS *** Do not tighten screws & bolts until the entire unit is completely assembled. *** STEP 1 Insert end cap (6) to the top of upper panel (A), then...
- Page 3 STEP 2 Insert end cap (6) to the bottom of under left panel (B) and under right panel (C), then attach under left panel (B) to upper panel (A) using bolt (2) and shaft sleeves (4). Attach under right panel (C) to upper panel (A), attach stretcher (G) to under right panel (C) and upper panel...
- Page 4 STEP 4 Attach stretcher (I) through the wood shelf (J) and wood shelf (K) to stretcher (F) and connect frame (D) using bolts (3) and allen key (11). Attach wood shelf (J) and wood shelf (K) to assembled bookshelf using screw (9) as shown.
- Page 5 STEP 6 Attach stretcher (I) through the wood shelf (N) to connect frame (D) and middle frame (E) using bolts (3) and allen key (11). Attach wood shelf (L) and wood shelf (N) to assembled bookshelf using screw (9) as shown. STEP 7 Attach wood shelf (M) and wood shelf (P) to...
- Page 6 STEP 8 Attach stretcher (I) through the wood shelf (J) to middle frame (E) and stretcher (F) using bolts (3) and allen key (11). Attach wood shelf (O) and wood shelf (J) to assembled bookshelf using screw (9) as shown. STEP 9 Cover the bolt head using bolt cover (5) as shown.
- Page 7 STEP 10 Wall Select a location where you want the bookshelf mounted. Mark on the wall the two locations where the wall anchors (8) will be placed. Drill a hole for each anchor slightly smaller than the size of screws (9). Push the wall anchors (8) as far as it will go with your finger.
