ASSEMBLY INSTRUCTION FOR ACME FURNITURE

Thank you for purchasing the quality product. Be sure to check all packing material carefully for small parts which

may have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware.

Compare with all parts are present. If any part(s) are missing or damaged, please contact your local furniture dealer.

For efﬁcient and speedy service, please indicate the model number and code letter of part(s) needed.

***Do not fully tighten screws until fully assembled.***

MODEL#97785

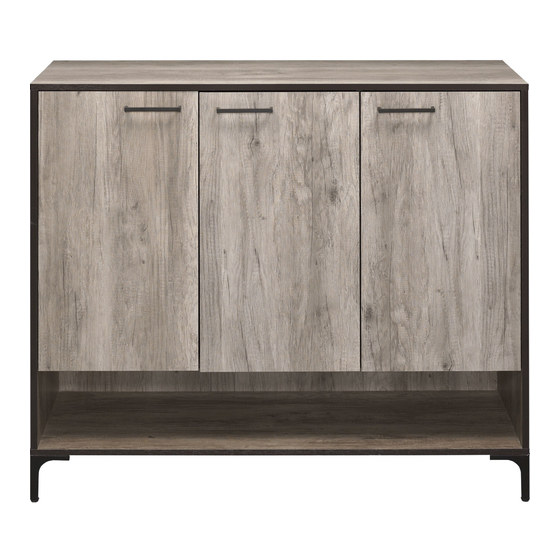

SHOE CABINET

DIMENSIONS

Width - 47.24"

Depth - 16.73"

Height - 44.08"

Need help?

Do you have a question about the 97785 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION FOR ACME FURNITURE MODEL#97785 Thank you for purchasing the quality product. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Separate, identify and count all parts and metal hardware.
Page 2: Parts List
97785 PARTS LIST Left door Bottom back Bottom Right door Top support Large layer Bottom support Left side Right side Small layer Middle door Middle top Left back Middle Right back...
Page 3: Hardware List
HARDWARE LIST Fixative plate Cam bolt 7*35*12.5mm Wood screw 3*19mm Cam lock 15*12mm Dowel Foot 8*30mm T-head screw 4*12mm Wood screw 8#*7/8" Support foot Coarse screw 7*11*50mm Shelf pin T-head screw 4.9*16mm 8#*1/2" Vent cap Handle 60mm*66mm*3mm Handle screw 8/32*19mm Glue Hinge Allen wrench...
Page 4 ASSEMBLY INSTRUCTIONS Step 1.
Page 5 ASSEMBLY INSTRUCTIONS Step 2.
Page 6 ASSEMBLY INSTRUCTIONS Step 3. short hole usage long...
Page 7 ASSEMBLY INSTRUCTIONS Step 4. Insert in as arrow direction to specify...
Page 8 ASSEMBLY INSTRUCTIONS Step 5. Big Screw Hole...
Page 9 ASSEMBLY INSTRUCTIONS Step 6.
Page 10 ASSEMBLY INSTRUCTIONS Step 7.
Page 11 ASSEMBLY INSTRUCTIONS Step 8. hole usage...
Page 12 ASSEMBLY INSTRUCTIONS Step 9. ASSEMBLY IS COMPLETED. Make sure the product is rested on a ﬂat surface and does not feel loose or wobbly. If it does, double check that the bolts/screws are secured and properly tightened.
