EuroMaster AutoEV
6.9.

Low Resistor

Low Resistor / +200mA, -200mA

Measure only on equipment and circuits that is de-energized!

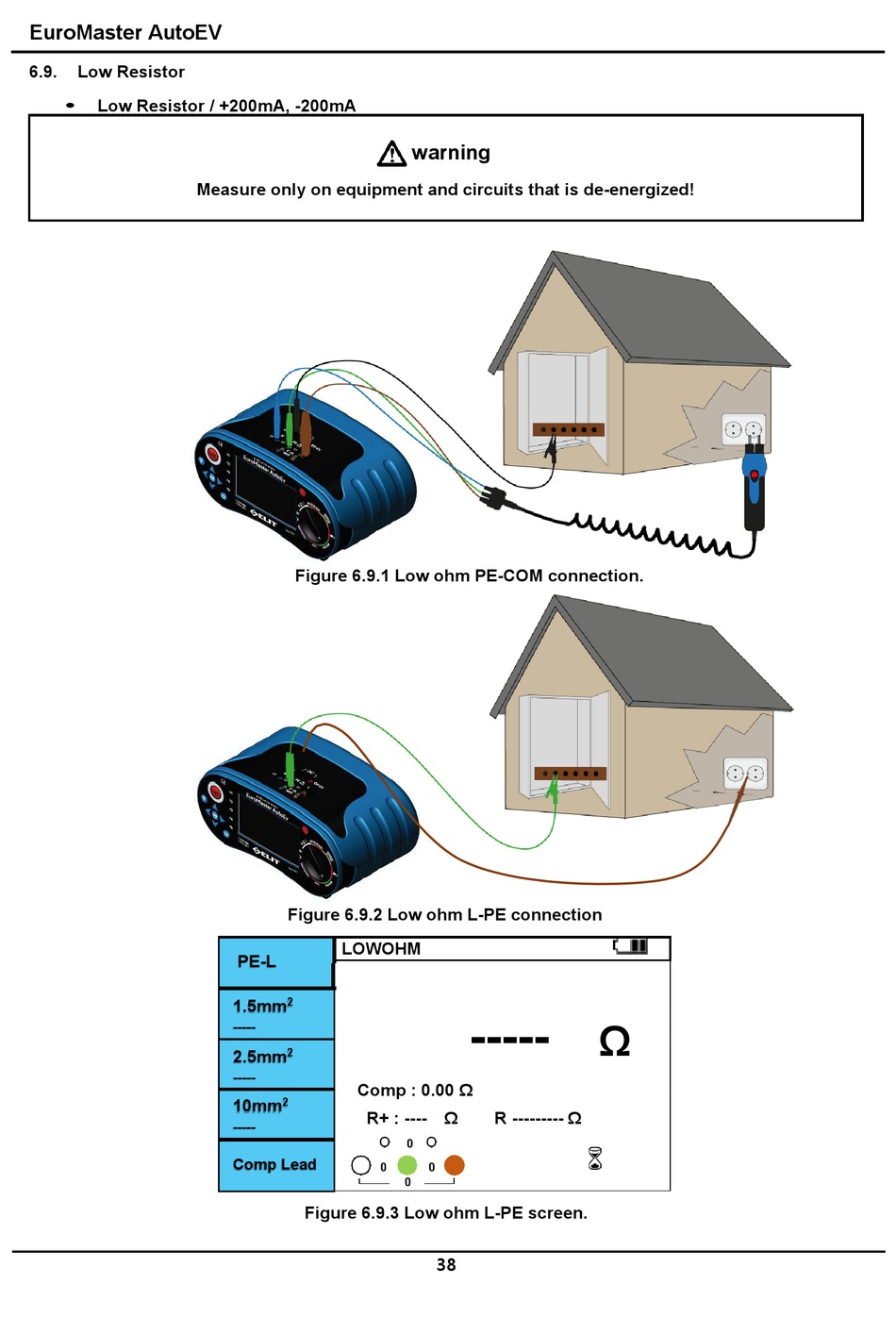

Figure 6.9.1 Low ohm PE-COM connection.
Figure 6.9.2 Low ohm L-PE connection
LOWOHM
PE-L
1.5mm 2
-----
2.5mm
2
-----
Comp : 0.00 Ω
10mm 2
R+ : ---- Ω
-----
Comp Lead
0
Figure 6.9.3 Low ohm L-PE screen.
warning
-----
R --------- Ω
0
0
0
38
Ω
