EuroMaster AutoEV
6.8.

Earth Resistor

Earth / 2Pole

I. Set the rotary switch to Earth.
II. Select 2 Pole with F1.
III. Set the Pass and Fail values with F2. (1666Ω, 833Ω, 250Ω, 100Ω, 50Ω, 25Ω)
IV. Connect the L-PE terminal and measurement position as shown in Figure 6.8.1.
V. If there is no voltage induced when connected to the measurement position, press the Test button.
VI. The symbol during measurement is displayed and the measured value is displayed.
VII. Press the Test button to perform continuous measurement and press the Test button again to stop the
measurement.
VIII. The measured value is held on the screen.

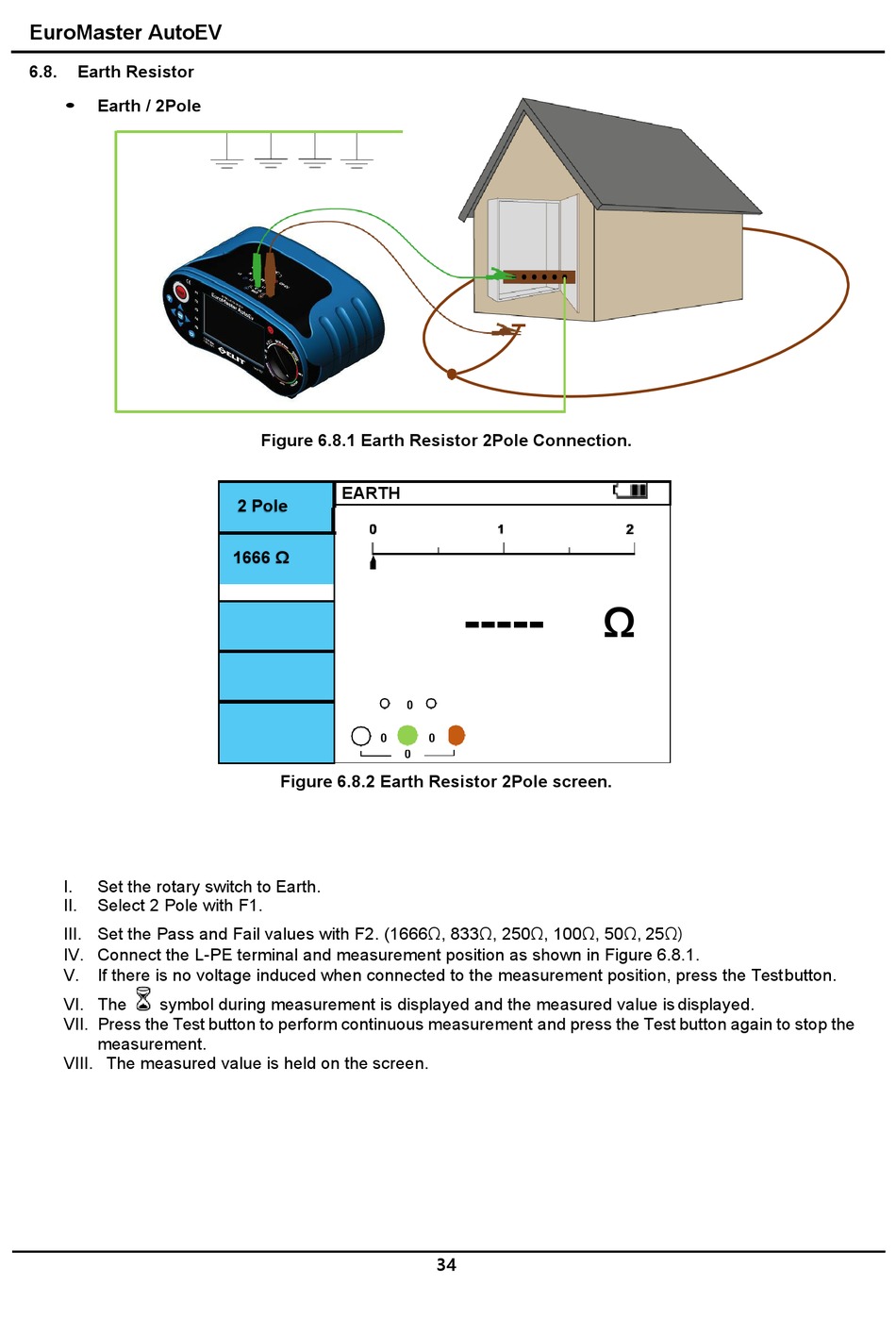

Figure 6.8.1 Earth Resistor 2Pole Connection.
EARTH
2 Pole
1666 Ω
0
Figure 6.8.2 Earth Resistor 2Pole screen.
-----
0
0
0
34
