EuroMaster AutoEV

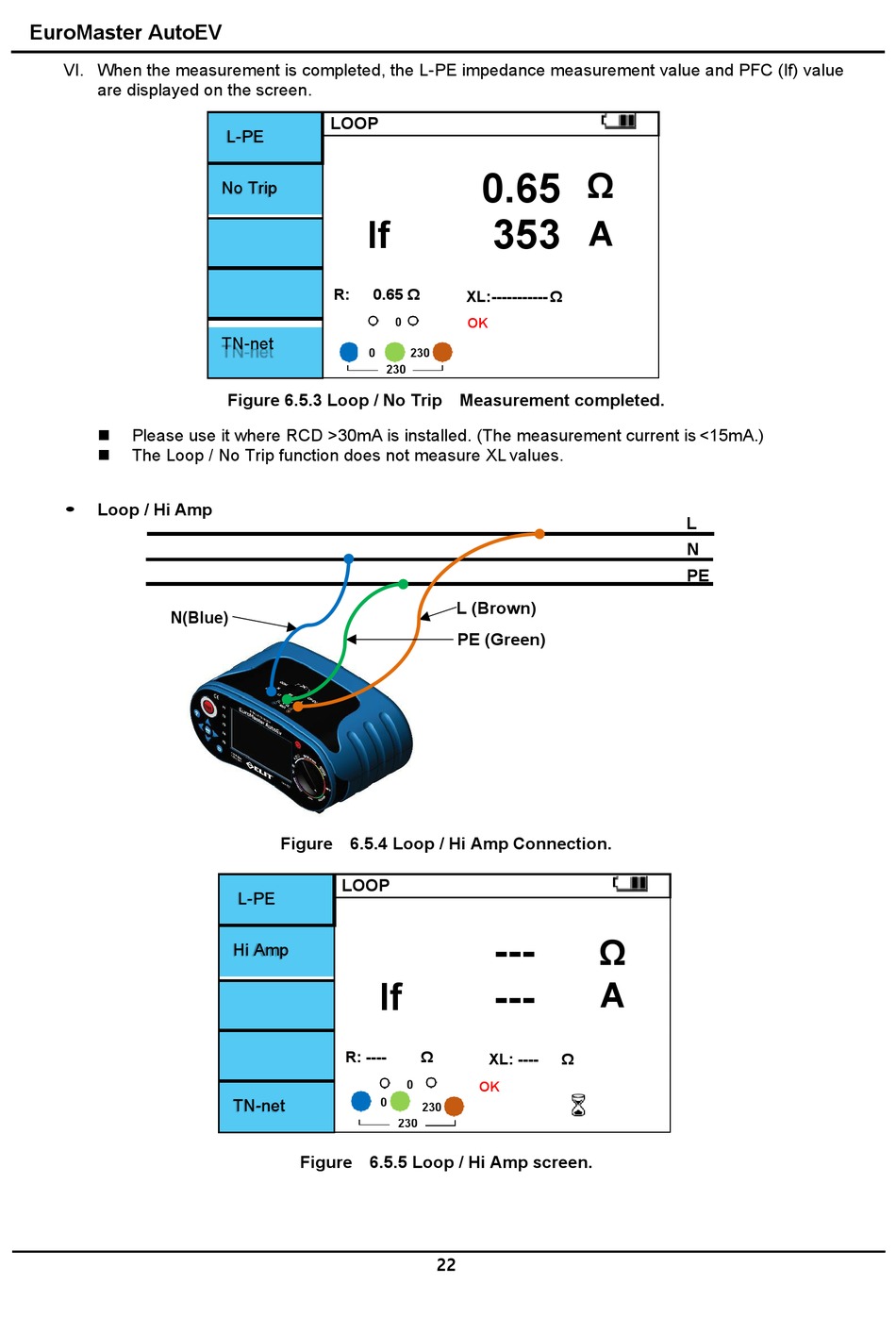

VI. When the measurement is completed, the L-PE impedance measurement value and PFC (If) value
are displayed on the screen.
Please use it where RCD >30mA is installed. (The measurement current is <15mA.)

The Loop / No Trip function does not measure XL values.

Loop / Hi Amp

N(Blue)
LOOP
L-PE
No Trip
If
R: 0.65 Ω
TN-net
0
230
Figure 6.5.3 Loop / No Trip Measurement completed.
Figure 6.5.4 Loop / Hi Amp Connection.
LOOP
L-PE
Hi Amp
If
R: ----
TN-net 0
Figure 6.5.5 Loop / Hi Amp screen.
0.65
353
XL: ----------- Ω
OK
0
230
L (Brown)
PE (Green)
---
---
Ω
XL: ---- Ω
0
OK
230
230
22
Ω
A
L
N
PE
Ω
A
