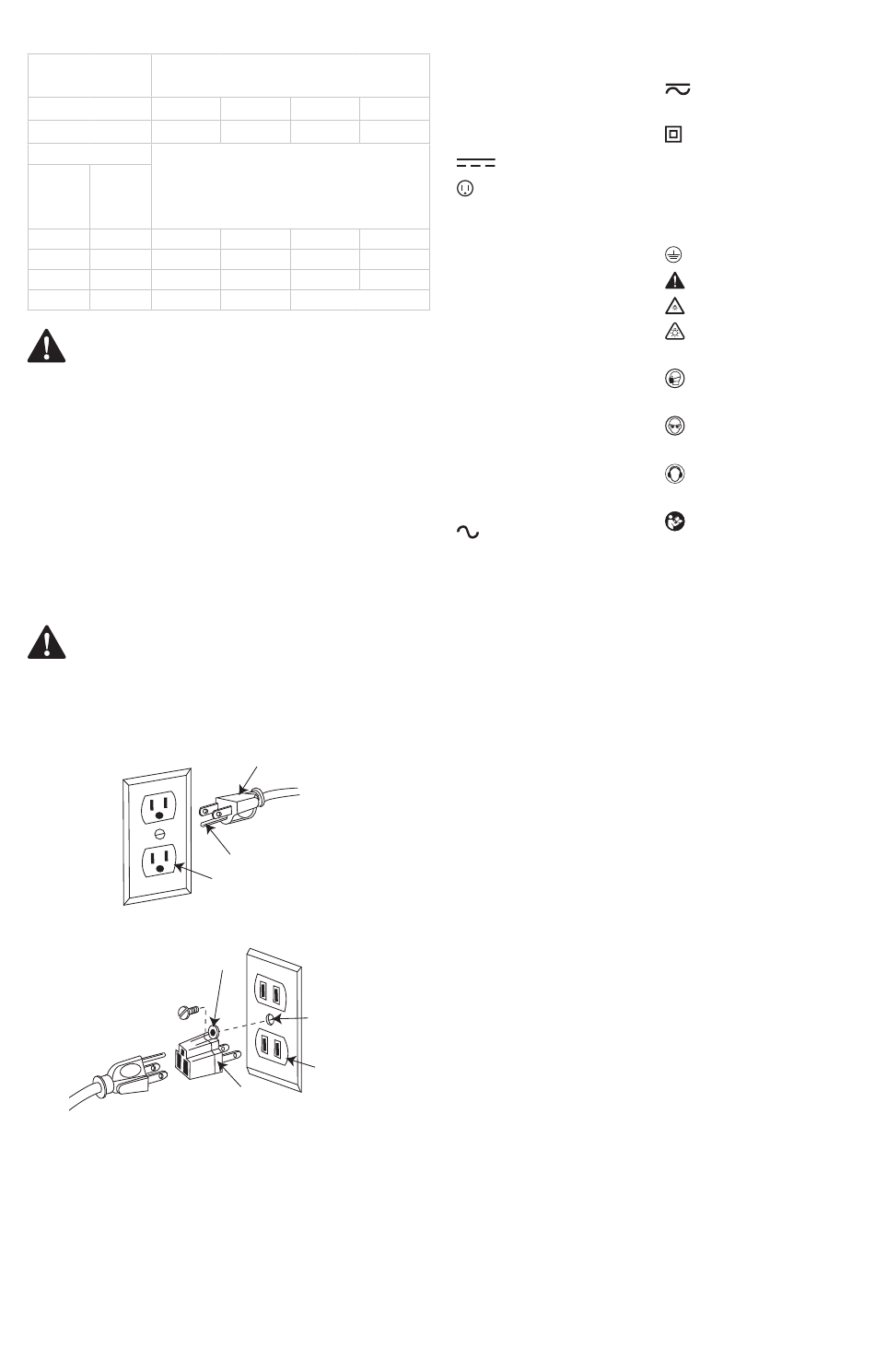

Craftsman CMXEBAR600 Instruction Manual page 7

Minimum gauge for Extension Cords (AWg)
Total length of Cord in Feet
Volts
120 V 25 (7.6)
240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating
More not
Than More
Than
0 6 18
6 10 18
10 12 16
12 16 14
WARNING: This tool is for indoor use only. Do not
expose to rain or use in damp locations.
This tool is intended for use on a circuit that has a receptacle
like the one illustrated in Fig. B . Fig. B shows a three-pronged
electrical plug and receptacle that has a grounding conductor.
If a properly grounded receptacle is not available, an adapter
(Fig. C) can be used to temporarily connect this plug to a two-
contact grounded receptacle. The adapter (Fig. C) has a rigid
lug extending from it that MUST be connected to a permanent
earth ground, such as a properly grounded receptacle box.
CAUTION: In all cases, make certain the receptacle is
properly grounded. If you are not sure, have a qualified
electrician check the receptacle.
Fig. B
Fig. C
Grounding Lug
(meters)
50 (15.2) 100 (30.5) 150 (45.7)
American Wire gauge
16 16
16 14
16 14
12 Not Recommended
Three-Pronged Plug
Grounding Prong
Properly Grounded
Three-Pronged Receptacle
Make sure this is
connected to a
known ground.
Two-Pronged
Receptacle
Adapter
The label on your tool may include the following symbols. The
symbols and their definitions are as follows:
V ......................... volts
Hz ....................... hertz
min ..................... minutes
or DC ...... direct current
...................... Class I Construction
(grounded)
.../min .............. per minute
14
12
BPM .................... beats per minute
12
IPM ..................... impacts per minute
RPM .................... revolutions per
minute
sfpm ................... surface feet per
minute
SPM .................... strokes per minute
OPM .................... oscillations per
minute
A ......................... amperes
W ........................ watts
or AC ........... alternating current
SAVE THESE INSTRUCTIONS FOR
Motor
Be sure your power supply agrees with the nameplate
marking. Voltage decrease of more than 10% will cause loss
of power and overheating. These tools are factory tested; if
this tool does not operate, check power supply.
or AC/DC .... alternating or
direct current
...................... Class II
Construction
(double insulated)
n o ....................... no load speed
n ......................... rated speed
...................... earthing terminal
..................... safety alert symbol
..................... visible radiation
..................... avoid staring at
light
..................... wear respiratory
protection
..................... wear eye
protection
..................... wear hearing
protection
..................... read all
documentation
FUTURE USE
English
7
