Craftsman CMXEBAR600 Instruction Manual page 3

Definitions: Safety Alert Symbols and Words
This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk
of personal injury or property damage.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
(Used without word) Indicates a safety related message.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

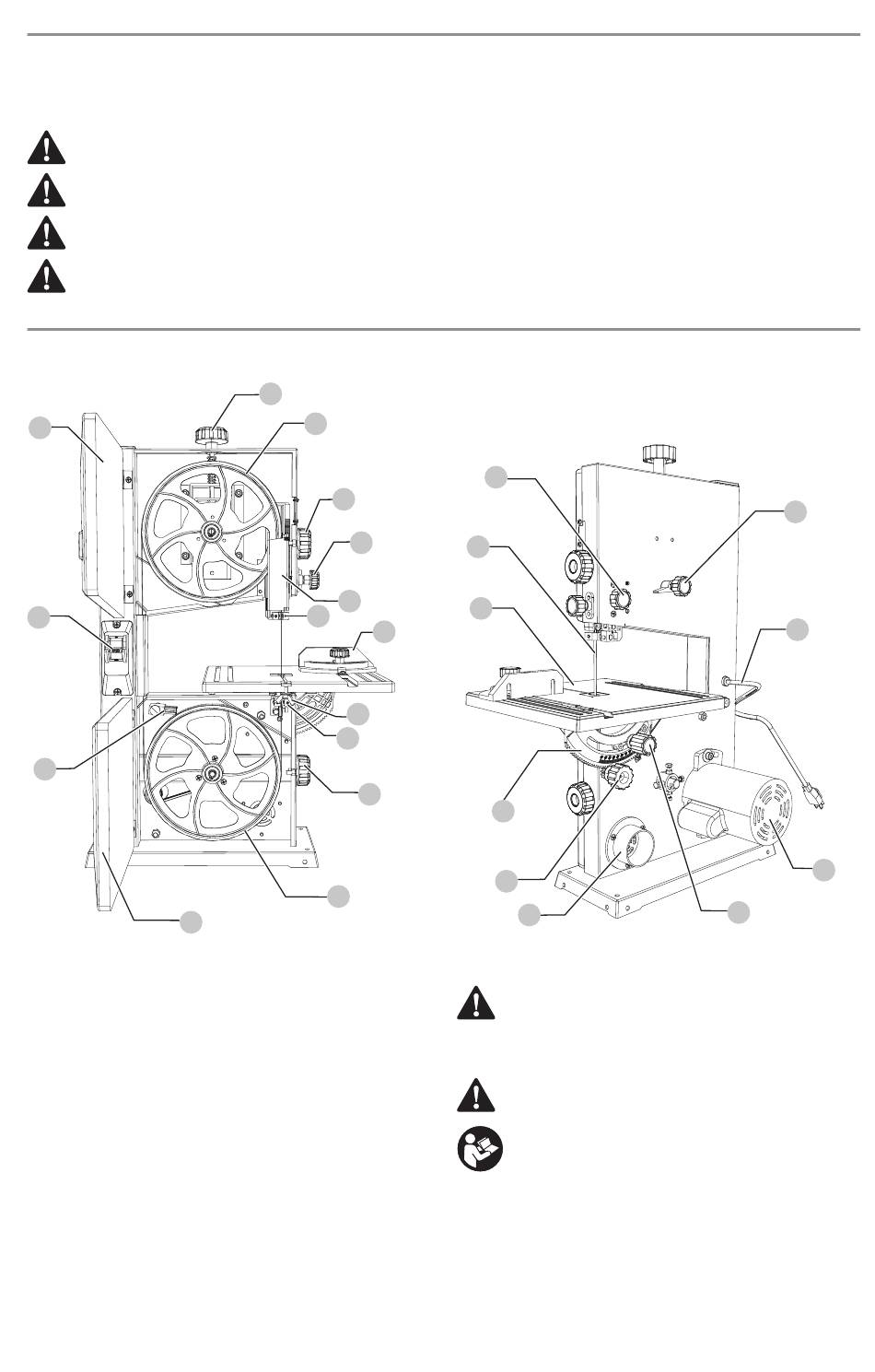

Fig. A
15
14
13
12
COMPONENTS
Blade tension knob
1
Upper blade wheel
2
Upper cover lock knob
3
Blade guide height
4
adjustment knob
Blade guard
5
Upper blade guide
6
Miter gauge
7
Table aligning bolt
8
Lower blade guide
9
Lower cover lock knob
10
Lower blade wheel
11
Lower wheel cover
12
1
2
3
4
5
6
7
8
9
10
11
Wheel brush
13
ON/OFF switch
14
Upper wheel cover
15
Blade tracking knob
16
Power cord
17
Motor
18
Table lock handle
19
Sawdust port
20
Table tilt adjustment knob
21
Table tilt scale
22
Table
23
Blade
24
Upper guide lock knob
25
25
24
23
22
21
20
WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
WARNING: Never modify the product or any part of it.
Damage or personal injury could result.
WARNING: To reduce the risk of injury, read the
instruction manual.
if you have any questions or comments about this
product, call CRAFTsMAn toll free at: 1-888-331-4569.
English
16
17
18
19
3
