ATOMSTACK X7 Pro Series Installation Manual page 7

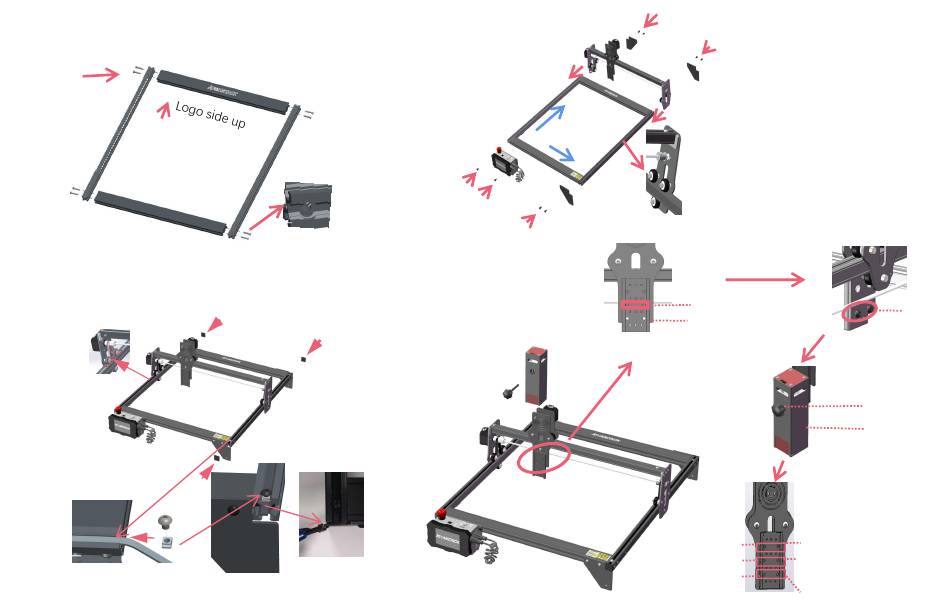

P a r t 4 ： I n s t a l l a t i o n S t e p s
Screw:
M5*25
4
1
3
2
S t e p 1
Gap side
outwarder
S t e p 3
3 3
Tighten the T nut and cut off
the excess belt.
1
S t e p 2
Y
X
2
M5-6
2
3
S t e p 4
3
3
1
The guide rail passes through the middle of the 3
rollers. Loosen the distance between the upper and
lower guide wheels appropriately.
group 2
installation hole
slide block
Figure 1
Figure 3
Engraving or cutting
scope 0~45mm
Group 3rd
Engraving or cutting scope
Group 2nd
0~65mm
Group 1st
Engraving or cutting scope
0~85mm
Figure 4
Fasten
Screw
Figure 2
torx handle
Alongside
