ATOMSTACK X7 Pro Series Installation Manual page 14

Setting of engraving/cutting passes, introduction of page key functions in
engraving
1
2
3
4

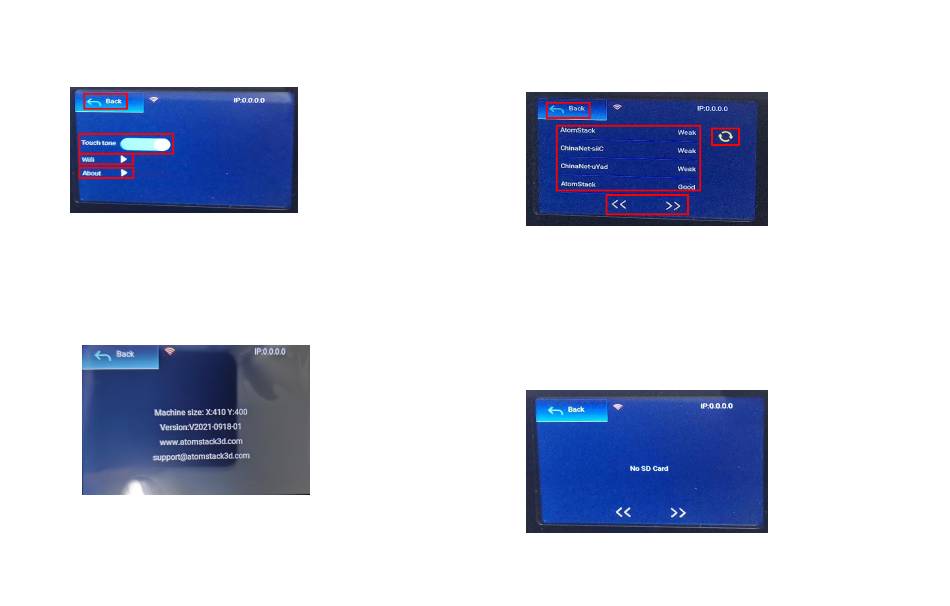

9、This is the setting interface.
1.Click the back button to return to the boot interface
2.Click the key tone switch button to turn on/off the key
tone.
3.WiFi settings
4.Local information
11、This is about the interface of this machine.
This interface displays the size of the device engraving,
firmware version, company website, and customer email
address.
1
3
4
10、This is the WiFi setting interface.
1.Click the back button to return to the setting interface and startup
interface
2.Click the reset button to refresh the search WiFi name
3.Click the WiFi setting button to search for the WiFi name. After clicking
the corresponding WiFi name, enter the password to connect to the WiFi
4.Click the left and right buttons to scroll up and down the WiFi name.
12.This is the interface without SD card inserted,
2
