7. Positioning
A.The engraver does not know what position to carve, so there is one important task ATOMSTACK you start
carving, that is positioning. We will complete the positioning operation in three steps.

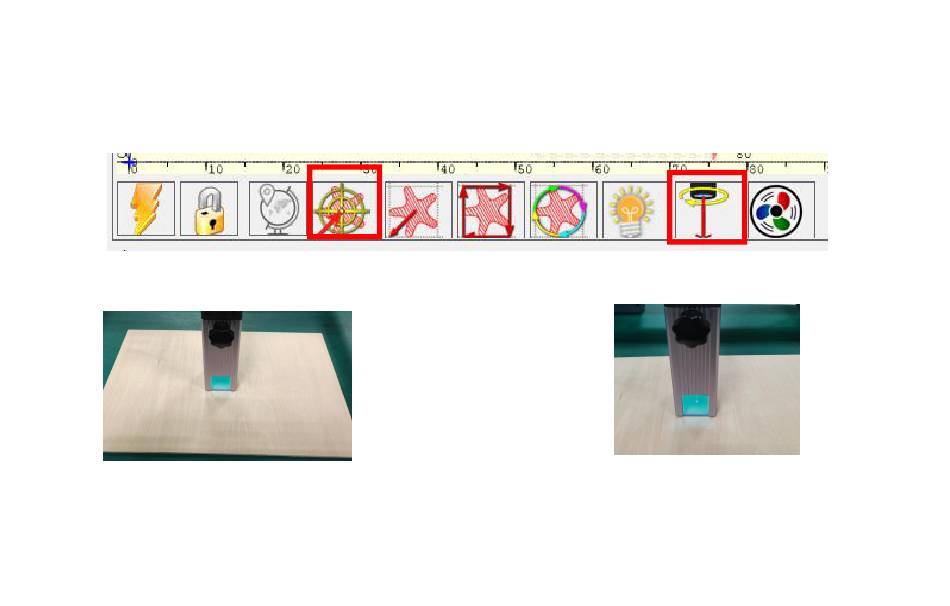

B. Select the "Move to Center" button, the laser will move to the center of the pattern, placed the engraving below
the laser at that time.
1
2
Step2: light laser
Step1: Move to Center
C. Click "light laser" button, the laser will emit a weak light, the laser emits irradiation point is the center of the
engraving pattern, based on this, adjust the position of the engraved object!
