ATOMSTACK X7 Pro Series Installation Manual page 17

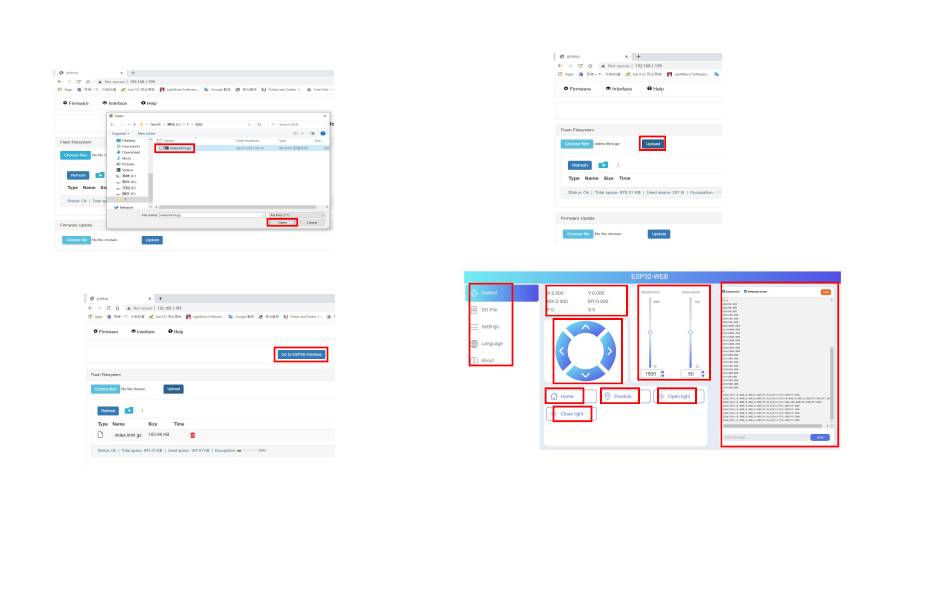

Upload the file, enter the web-side control page and the introduction of the
engraving page
5. Select the file named "index.html" and click Open
7.After the file uploading is completed, the Go to ESP3D
interface option will appear, click to enter the control
interface.
6. Click Upload and wait for about 5 seconds to complete the uploading
2
1
①
3
5
6
8
1. Menu bar, switch to different interfaces, the current interface is the control
interface
2. Display of current coordinates, engraving speed and energy
3. The arrow keys can control the laser to move forward, backward, left and right.
4. Adjust the speed and step length of the movement.
5. Return to zero, return to the origin.
6. Positioning key, take the current position as the starting point.
7. Turn on the laser.
8. Turn off the laser.
9. Console displays the program steps.
9
4
7
