Stahl YA60 Series Operating Instructions Manual
Audio signalling device
Hide thumbs
Also See for YA60 Series:
- Operating instructions manual (22 pages) ,
- Operating instructions manual (20 pages) ,
- Operating instructions manual (24 pages)
Subscribe to Our Youtube Channel
Related Manuals for Stahl YA60 Series
Summary of Contents for Stahl YA60 Series

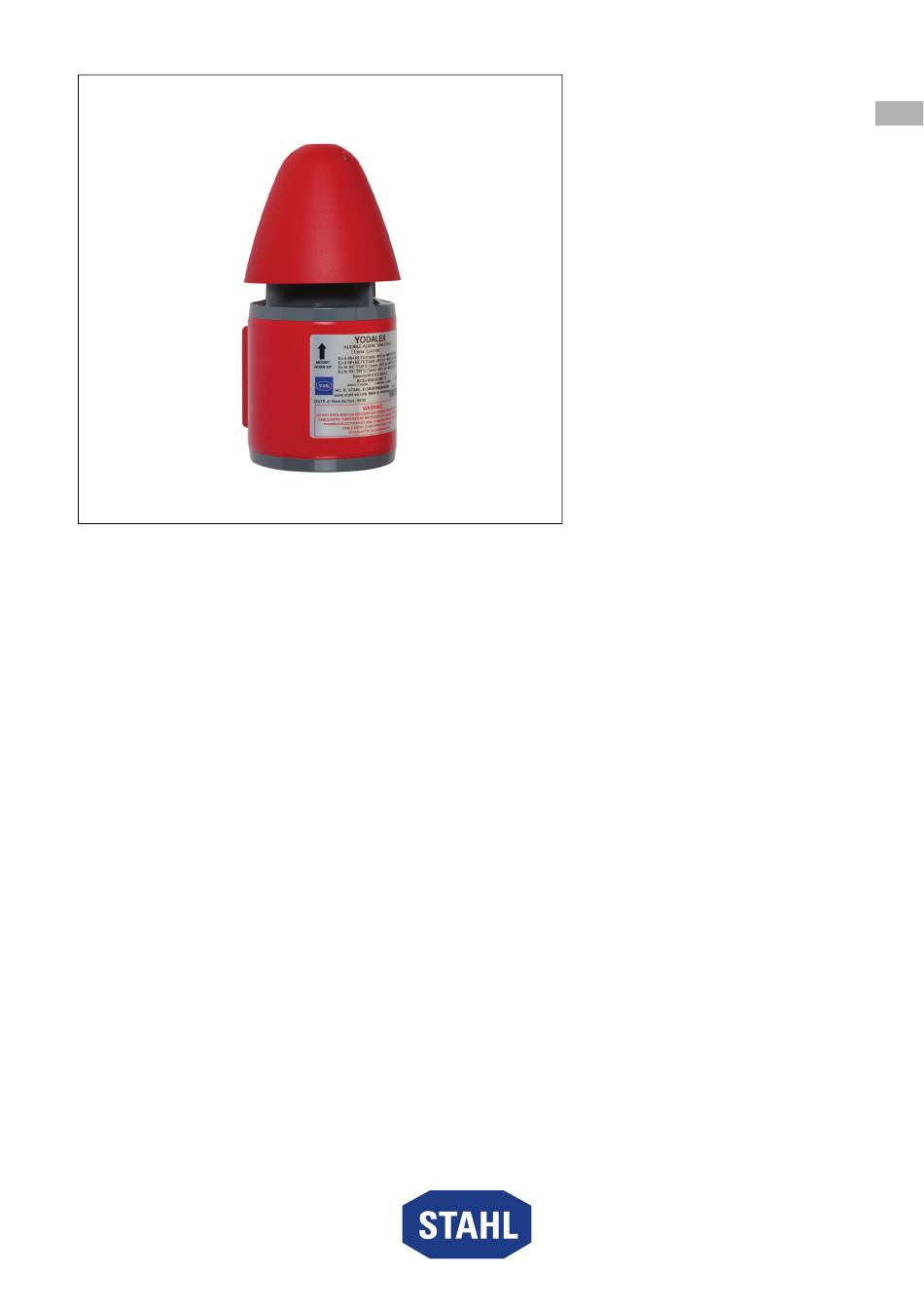

- Page 1 Operating instructions Additional languages r-stahl.com Audio signalling device Series YA60/2...
-
Page 2: Table Of Contents
Contents Contents General information .....................3 Manufacturer......................3 Information regarding the operating instructions..........3 Further documents....................3 Conformity with standards and regulations............3 Explanation of symbols ..................4 Symbols used in these operating instructions............4 Warning notes......................4 Symbols on the device..................5 Safety notes ......................6 Operating instructions storage ................6 Personnel qualification..................6 Safe use.......................6 Modifications and alterations ................7... -
Page 3: En Fr
• Data sheet For documents in other languages, see r-stahl.com. Conformity with standards and regulations For certificates and EU Declaration of Conformity, see r-stahl.com. The device has IECEx approval. To view the certificate, see IECEx homepage: http://iecex.iec.ch/ 276787 / YA6060300110 Audio signalling device 2021-06-10·BA00·III·en·00... -
Page 4: Explanation Of Symbols
Explanation of symbols Explanation of symbols Symbols used in these operating instructions Symbol Meaning Tips and recommendations on the use of the device General danger Danger due to explosive atmosphere Warning notes Warning notes must be observed under all circumstances, in order to minimise the risk resulting from design engineering and operation. -
Page 5: Se Fi
Explanation of symbols Symbols on the device Symbol Meaning CE marking according to the current applicable directive. 05594E00 Device certified for hazardous areas according to the marking. 02198E00 Input 15649E00 Output 15648E00 Safety notes that must always be observed: The corresponding data and/or safety-related instructions contained in the operating instructions must be followed for devices with this symbol! 11048E00... -
Page 6: Safety Notes
Additional knowledge is required for any activity in hazardous areas! R. STAHL recommends having a level of knowledge equal to that described in the following standards: • IEC/EN 60079-14 (Project engineering, selection and construction of electrical systems) •... -
Page 7: Modifications And Alterations
Function and device design Commissioning, maintenance, repair • Only have commissioning and repairs performed by qualified and authorised persons (see "Personnel qualification" chapter). • Before commissioning, make sure that the device is not damaged. • Perform only maintenance work described in these operating instructions. Modifications and alterations DANGER Explosion hazard due to modifications and alterations to the device! -
Page 8: Device Design
Function and device design Device design 22730E00 Screws Horn flange Horn cover Cheese head screws Enclosure Audio signalling device 276787 / YA6060300110 Series YA60/2 2021-06-10·BA00·III·en·00... -
Page 9: Technical Data
Technical data Technical data Explosion protection Global (IECEx) Gas and dust IECEx EPS 20.0037X Ex db IIC T. Ex tb IIIC T... °C Europe (ATEX) Gas and dust EPS 20 ATEX 1 007 X E II 2 G Ex db IIC T. E II 2 D Ex tb IIIC T... - Page 10 Technical data Technical data Technical data Product weight 5.4 kg Electrical data Rated operational 21.1 to 24 V DC voltage Average input power/ Max. current Average max. current consumption power consumption [mA] Horn Class I (PE connection) (internal + external) Ambient temperature range Functional Temperature class...
- Page 11 Connection type PUSH-IN terminal Connection terminals Solid: max. 2.5 mm Finely stranded: max. 2.5 mm Scope of delivery Signalling device according to configuration L-bracket Dust caps For further technical data, see r-stahl.com. 276787 / YA6060300110 Audio signalling device 2021-06-10·BA00·III·en·00 Series YA60/2...
-
Page 12: Transport And Storage
Transport and storage Transport and storage • Transport and store the device only in the original packaging. • Store the device in a dry place (no condensation) free of vibrations. • Do not drop the device. Mounting and installation Dimensions/fastening dimensions Dimensional drawings (all dimensions in mm [inch]) –... -
Page 13: Mounting/Dismounting, Operating Position
Mounting and installation Mounting/dismounting, operating position DANGER Explosion hazard due to improper mounting! Non-compliance results in severe or fatal injuries. • Only operate the device if it is not damaged. If the thread is damaged, replace the device immediately. • Only install the device in a clean and dry operating environment. •... -
Page 14: Installation
Mounting and installation • Select a mounting location that is suitable for the signal effect of the device, as well as the required mounting and installation parameters (see "Technical data" chapter). • Mount the device on a flat surface using the L-bracket and screw holes. •... - Page 15 Mounting and installation • Disconnect the plug connector between the horn flange (4) and PCB (5). 22732E00 • Remove the PCB (5) from the enclosure (6). 22733E00 276787 / YA6060300110 Audio signalling device 2021-06-10·BA00·III·en·00 Series YA60/2...
- Page 16 Mounting and installation 7.3.2 Electrical connections DANGER Explosion hazard due to insufficient protective measures! Non-compliance results in severe or fatal injuries. • Select suitable cables to ensure that the maximum permissible conductor temperatures are not exceeded. • When using core end sleeves, attach them using a suitable tool. •...
- Page 17 Mounting and installation Sounder Sounder Sounder 0V 24V 0V 24V 0V 24V Sounder 24 V 22736E00 Example: Connection diagram for combining multiple devices When doing so: • Observe the maximum permissible single wire cross-sections for the connection terminals – see "Technical data" chapter. •...
- Page 18 Mounting and installation 7.3.3 Configuration The configuration of the device is performed by adjusting the DIP switch on the PCB. The following general/audible configuration options are available: Horn circuit board 22737E00 DIP switch designation Function Audible settings for sound level 1 Audible settings for sound level 2 Not equipped Not equipped...
- Page 19 Mounting and installation "OPTIONS" DIP switch Sound volume reduced by up to 18 dB(A) Sound volume reduced by up to 12 dB(A) Sound volume reduced by up to 6 dB(A) Max. sound volume Reserved Reserved SOUND LEVEL 3/4 ACTIVATION (control via A/B signal) SOUND LEVEL 3/4 DEACTIVATION (control via A/B signal) RI ACTIVATION...
- Page 20 Mounting and installation Audible settings Sou- SW1/SW2 Fre- Sound description Special Sound level quency application Sou- Sou- Sou- Sou- 1000 Hz Changing SW2 05 800 Hz sound 0.5s UK BS5839-1 22571E00 (fire alarm, level crossing) 3100 Hz Safety alarm 02 SW2 04 2500 Hz 0.5s...
- Page 21 Mounting and installation Sou- SW1/SW2 Fre- Sound description Special Sound level quency application Sou- Sou- Sou- Sou- 1000 Hz SW2 31 22580E00 2040 Hz SW2 01 1632 Hz 0.5s 22571E00 2300 Hz SW2 01 22580E00 440 Hz SW2 01 22580E00 1000 Hz SW2 31 22581E00...
- Page 22 Mounting and installation Sou- SW1/SW2 Fre- Sound description Special Sound level quency application Sou- Sou- Sou- Sou- 700 Hz Air-raid alarm SW2 01 (Sweden) 22588E00 700 Hz Local warning SW2 22 0.5s (Sweden) 22584E00 720 Hz Industrial SW2 08 0.7s 0.3s alarm 22589E00...
- Page 23 Mounting and installation 7.3.4 Mounting the device 22730E00 Screws Horn flange Horn cover Cheese head screws Enclosure Screws and seals The cheese-head screws are delivered with Nyltite seals. • Before mounting, check the seals for damage. • Replace damaged seals. •...
- Page 24 Mounting and installation • Insert the PCB (5) into the enclosure (6). 22741E00 • Connect the plug connector between the horn flange (4) and PCB (5). 22740E00 • Fit the horn flange (4) and mount using 4 cheese-head screws (M5 x 16) (3) (tightening torque 4 Nm).
- Page 25 Mounting and installation 7.3.5 Mounting the earth connection • Connect the internal earth connection as the primary connection point. The external connection can be used as an additional equipotential bonding conductor, provided that it is permissible or required in accordance with local regulations or by the authorities.
-
Page 26: Commissioning
Commissioning Commissioning Prerequisites DANGER Explosion hazard due to incorrect installation! Non-compliance results in severe or fatal injuries. • Check the device for proper installation before commissioning. • Comply with national regulations. Before commissioning, make sure that: • the device has been installed according to regulations. •... -
Page 27: Operation
• an audible signal. Troubleshooting If the error cannot be eliminated using the specified procedures: • Contact R. STAHL Schaltgeräte GmbH. For rapid processing, have the following information ready: • Type and serial number of the device • Purchase information •... -
Page 28: 10.3 Returning The Device
• Only return or package the devices after consulting R. STAHL! Contact the responsible representative from R. STAHL. R. STAHL's customer service is available to handle returns if repair or service is required. • Contact customer service personally. • Go to the r-stahl.com website.
