Plenum Bracket Installation
Mount here
A pair of mounting brackets and M4 screws are included with the plenum bracket kit.
They can be positioned as shown below in any of 3 configurations to fit over a
ceiling rail (shown in the smaller inset images). Chose the orientation that best fits
your application (Figures 12-14). Orient brackets as shown – right (R) and left (L).
Remove the controller from any other bracket reserving the M4 screws for
plenum bracket attachment. Secure each bracket with a screw threaded in the
appropriate hole as noted on the smaller bracket drawing for each configuration.
Both brackets must be installed in the same configuration to adequately secure
the panel. Tighten the screws so that the controller doesn't move in the brackets.
A safety cable may be threaded through any of the open holes to prevent
M4 screw
movement and/or further secure the unit in the ceiling.

IMPORTANT NOTES:

1. If the panel is installed in the face down position (below), an additional M4 screw
must be installed in the lower holes on each side to prevent panel movement.
2. All wiring must be plenum rated if it is installed in a plenum space.
3. The installer is responsible for sourcing and installing the proper safety cable to meet
Figure 13. Base of controller is flush with the bottom of the brackets
all applicable local building codes and standards.
Mount here
L
R
Mounting brackets
Additional
M4 screw
M4 screw
Mount here
M4 screw

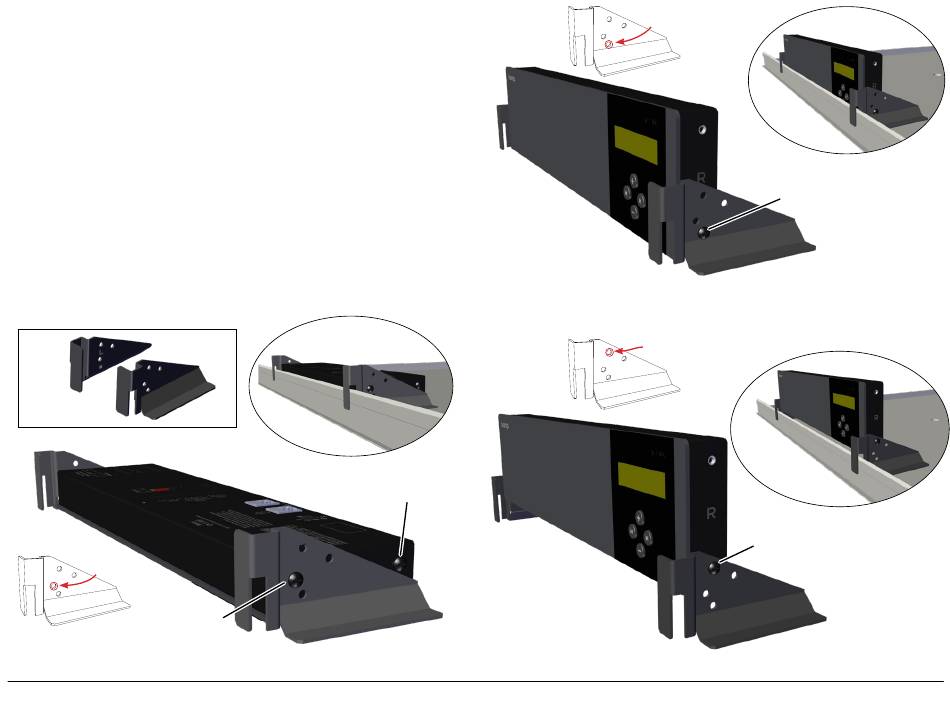

Figure 12. Controller is face down against the ceiling tile with an additional M4
screw on each side to prevent panel movement Figure 14. Controller is raised above the rail
